Reference documentation for deal.II version 9.1.1

#include <deal.II/matrix_free/fe_evaluation.h>

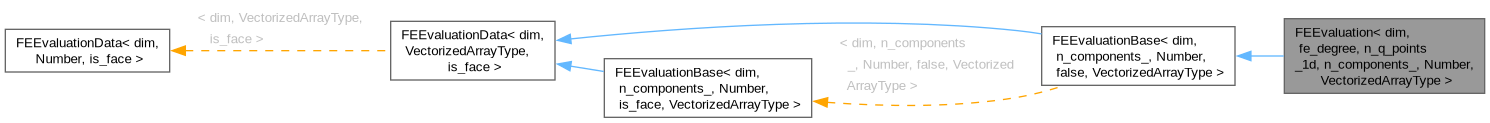

Public Types
using  BaseClass = FEEvaluationAccess< dim, n_components_, Number, false >
using  number_type = Number
using  value_type = typename BaseClass::value_type
using  gradient_type = typename BaseClass::gradient_type
Public Member Functions
FEEvaluation (const MatrixFree< dim, Number > &matrix_free, const unsigned int dof_no=0, const unsigned int quad_no=0, const unsigned int first_selected_component=0)
FEEvaluation (const Mapping< dim > &mapping, const FiniteElement< dim > &fe, const Quadrature< 1 > &quadrature, const UpdateFlags update_flags, const unsigned int first_selected_component=0)
FEEvaluation (const FiniteElement< dim > &fe, const Quadrature< 1 > &quadrature, const UpdateFlags update_flags, const unsigned int first_selected_component=0)
template<int n_components_other>
FEEvaluation (const FiniteElement< dim > &fe, const FEEvaluationBase< dim, n_components_other, Number > &other, const unsigned int first_selected_component=0)
FEEvaluation (const FEEvaluation &other)
FEEvaluation &  operator= (const FEEvaluation &other)
void  reinit (const unsigned int cell_batch_index)
template<typename DoFHandlerType , bool level_dof_access>
void  reinit (const TriaIterator< DoFCellAccessor< DoFHandlerType, level_dof_access >> &cell)
void  reinit (const typename Triangulation< dim >::cell_iterator &cell)
void  evaluate (const bool evaluate_values, const bool evaluate_gradients, const bool evaluate_hessians=false)
void  evaluate (const VectorizedArray< Number > *values_array, const bool evaluate_values, const bool evaluate_gradients, const bool evaluate_hessians=false)
template<typename VectorType >
void  gather_evaluate (const VectorType &input_vector, const bool evaluate_values, const bool evaluate_gradients, const bool evaluate_hessians=false)
void  integrate (const bool integrate_values, const bool integrate_gradients)
void  integrate (const bool integrate_values, const bool integrate_gradients, VectorizedArray< Number > *values_array)
template<typename VectorType >
void  integrate_scatter (const bool integrate_values, const bool integrate_gradients, VectorType &output_vector)
Point< dim, VectorizedArray< Number > >  quadrature_point (const unsigned int q_point) const
Public Member Functions inherited from FEEvaluationBase< dim, n_components_, Number, is_face >
~FEEvaluationBase ()
unsigned int  get_cell_data_number () const
unsigned int  get_mapping_data_index_offset () const
internal::MatrixFreeFunctions::GeometryType  get_cell_type () const
const internal::MatrixFreeFunctions::ShapeInfo< VectorizedArray< Number > > &  get_shape_info () const
template<typename VectorType >
void  read_dof_values (const VectorType &src, const unsigned int first_index=0)
template<typename VectorType >
void  read_dof_values_plain (const VectorType &src, const unsigned int first_index=0)
template<typename VectorType >
void  distribute_local_to_global (VectorType &dst, const unsigned int first_index=0, const std::bitset< VectorizedArray< Number >::n_array_elements > &mask=std::bitset< VectorizedArray< Number >::n_array_elements >().flip()) const
template<typename VectorType >
void  set_dof_values (VectorType &dst, const unsigned int first_index=0, const std::bitset< VectorizedArray< Number >::n_array_elements > &mask=std::bitset< VectorizedArray< Number >::n_array_elements >().flip()) const
value_type  get_dof_value (const unsigned int dof) const
void  submit_dof_value (const value_type val_in, const unsigned int dof)
value_type  get_value (const unsigned int q_point) const
void  submit_value (const value_type val_in, const unsigned int q_point)
gradient_type  get_gradient (const unsigned int q_point) const
value_type  get_normal_derivative (const unsigned int q_point) const
void  submit_gradient (const gradient_type grad_in, const unsigned int q_point)
void  submit_normal_derivative (const value_type grad_in, const unsigned int q_point)
Tensor< 1, n_components_, Tensor< 2, dim, VectorizedArray< Number > > >  get_hessian (const unsigned int q_point) const
gradient_type  get_hessian_diagonal (const unsigned int q_point) const
value_type  get_laplacian (const unsigned int q_point) const
VectorizedArray< Number >  get_divergence (const unsigned int q_point) const
SymmetricTensor< 2, dim, VectorizedArray< Number > >  get_symmetric_gradient (const unsigned int q_point) const
Tensor< 1,(dim==2 ? 1 :dim), VectorizedArray< Number > >  get_curl (const unsigned int q_point) const
void  submit_divergence (const VectorizedArray< Number > div_in, const unsigned int q_point)
void  submit_symmetric_gradient (const SymmetricTensor< 2, dim, VectorizedArray< Number >> grad_in, const unsigned int q_point)
void  submit_curl (const Tensor< 1, dim==2 ? 1 :dim, VectorizedArray< Number >> curl_in, const unsigned int q_point)
value_type  integrate_value () const
VectorizedArray< Number >  JxW (const unsigned int q_index) const
void  fill_JxW_values (AlignedVector< VectorizedArray< Number >> &JxW_values) const
Tensor< 2, dim, VectorizedArray< Number > >  inverse_jacobian (const unsigned int q_index) const
Tensor< 1, dim, VectorizedArray< Number > >  get_normal_vector (const unsigned int q_point) const
VectorizedArray< Number >  read_cell_data (const AlignedVector< VectorizedArray< Number >> &array) const
const VectorizedArray< Number > *  begin_dof_values () const
VectorizedArray< Number > *  begin_dof_values ()
const VectorizedArray< Number > *  begin_values () const
VectorizedArray< Number > *  begin_values ()
const VectorizedArray< Number > *  begin_gradients () const
VectorizedArray< Number > *  begin_gradients ()
const VectorizedArray< Number > *  begin_hessians () const
VectorizedArray< Number > *  begin_hessians ()
const std::vector< unsigned int > &  get_internal_dof_numbering () const
ArrayView< VectorizedArray< Number > >  get_scratch_data () const
Public Attributes
const unsigned int  dofs_per_component
const unsigned int  dofs_per_cell
const unsigned int  n_q_points
Static Public Attributes
static constexpr unsigned int  dimension = dim
static constexpr unsigned int  n_components = n_components_
static constexpr unsigned int  static_n_q_points
static constexpr unsigned int  static_dofs_per_component
static constexpr unsigned int  tensor_dofs_per_cell
static constexpr unsigned int  static_dofs_per_cell
Private Member Functions
void  check_template_arguments (const unsigned int fe_no, const unsigned int first_selected_component)
Additional Inherited Members
Protected Member Functions inherited from FEEvaluationAccess< dim, n_components_, Number, false >
FEEvaluationAccess (const MatrixFree< dim, Number > &matrix_free, const unsigned int dof_no, const unsigned int first_selected_component, const unsigned int quad_no, const unsigned int fe_degree, const unsigned int n_q_points, const bool is_interior_face=true)
FEEvaluationAccess (const Mapping< dim > &mapping, const FiniteElement< dim > &fe, const Quadrature< 1 > &quadrature, const UpdateFlags update_flags, const unsigned int first_selected_component, const FEEvaluationBase< dim, n_components_other, Number, is_face > *other)
FEEvaluationAccess (const FEEvaluationAccess &other)
FEEvaluationAccess &  operator= (const FEEvaluationAccess &other)
Protected Member Functions inherited from FEEvaluationBase< dim, n_components_, Number, is_face >
FEEvaluationBase (const MatrixFree< dim, Number > &matrix_free, const unsigned int dof_no, const unsigned int first_selected_component, const unsigned int quad_no, const unsigned int fe_degree, const unsigned int n_q_points, const bool is_interior_face)
template<int n_components_other>
FEEvaluationBase (const Mapping< dim > &mapping, const FiniteElement< dim > &fe, const Quadrature< 1 > &quadrature, const UpdateFlags update_flags, const unsigned int first_selected_component, const FEEvaluationBase< dim, n_components_other, Number > *other)
FEEvaluationBase (const FEEvaluationBase &other)
FEEvaluationBase &  operator= (const FEEvaluationBase &other)
template<typename VectorType , typename VectorOperation >
void  read_write_operation (const VectorOperation &operation, VectorType *vectors[], const std::bitset< VectorizedArray< Number >::n_array_elements > &mask, const bool apply_constraints=true) const
template<typename VectorType , typename VectorOperation >
void  read_write_operation_contiguous (const VectorOperation &operation, VectorType *vectors[], const std::bitset< VectorizedArray< Number >::n_array_elements > &mask) const
template<typename VectorType , typename VectorOperation >
void  read_write_operation_global (const VectorOperation &operation, VectorType *vectors[]) const
Protected Attributes inherited from FEEvaluationBase< dim, n_components_, Number, is_face >
AlignedVector< VectorizedArray< Number > > *  scratch_data_array
VectorizedArray< Number > *  scratch_data
VectorizedArray< Number > *  values_dofs [n_components]
VectorizedArray< Number > *  values_quad [n_components]
VectorizedArray< Number > *  gradients_quad [n_components][dim]
VectorizedArray< Number > *  hessians_quad [n_components][(dim *(dim+1))/2]
const unsigned int  quad_no
const unsigned int  n_fe_components
const unsigned int  active_fe_index
const unsigned int  active_quad_index
const unsigned int  n_quadrature_points
const MatrixFree< dim, Number > *  matrix_info
const internal::MatrixFreeFunctions::DoFInfo *  dof_info
const internal::MatrixFreeFunctions::MappingInfoStorage<(is_face ? dim  1 :dim), dim, Number > *  mapping_data
const internal::MatrixFreeFunctions::ShapeInfo< VectorizedArray< Number > > *  data
const Tensor< 2, dim, VectorizedArray< Number > > *  jacobian
const VectorizedArray< Number > *  J_value
const Tensor< 1, dim, VectorizedArray< Number > > *  normal_vectors
const Tensor< 1, dim, VectorizedArray< Number > > *  normal_x_jacobian
const Number *  quadrature_weights
unsigned int  cell
bool  is_interior_face
internal::MatrixFreeFunctions::DoFInfo::DoFAccessIndex  dof_access_index
unsigned int  face_no
unsigned int  face_orientation
unsigned int  subface_index
internal::MatrixFreeFunctions::GeometryType  cell_type
bool  dof_values_initialized
bool  values_quad_initialized
bool  gradients_quad_initialized
bool  hessians_quad_initialized
bool  values_quad_submitted
bool  gradients_quad_submitted
std::shared_ptr< internal::MatrixFreeFunctions::MappingDataOnTheFly< dim, Number > >  mapped_geometry
const unsigned int  first_selected_component
std::vector< types::global_dof_index >  local_dof_indices
The class that provides all functions necessary to evaluate functions at quadrature points and cell integrations. In functionality, this class is similar to FEValues, however, it includes a lot of specialized functions that make it much faster (between 5 and 500, depending on the polynomial degree). For evaluation of face terms in DG, see the class FEFaceEvaluation.
The first and foremost way of usage is to initialize this class from a MatrixFree object that caches everything related to the degrees of freedom and the mapping information. This way, it is possible to use vectorization for applying a differential operator for several cells at once.
The capabilities of FEEvaluation span a large spectrum of integration tasks for weak forms. In general, there are two classes of tasks that get done. One is the evaluate
path that interpolates from a solution vector to quadrature points:
Likewise, a gradient of the finite element solution represented by vector
can be interpolated to the quadrature points by phi.get_gradient(q)
. The combination of read_dof_values(), evaluate() and get_value() is similar to what FEValues::get_function_values or FEValues::get_function_gradients does, but it is in general much faster because it makes use of the tensor product, see the description of the evaluation routines below, and can do this operation for several cells at once through vectorization.
The second class of tasks done by FEEvaluation are integration tasks for right hand sides. In finite element computations, these typically consist of multiplying a quantity on quadrature points (a function value, or a field interpolated by the finite element space itself) by a set of test functions and integrating over the cell through summation of the values in each quadrature point, multiplied by the quadrature weight and the Jacobian determinant of the transformation. If a generic Function object is given and we want to compute \(v_i = \int_\Omega \varphi_i f dx\), this is done by the following cellwise integration:
In this code, the call to phi.submit_value()
prepares for the multiplication by the test function prior to the actual integration (inside the submit call, the value to be tested is also multiplied by the determinant of the Jacobian and the quadrature weight). In the integrate()
call, an integral contribution tested by each basis function underlying the FEEvaluation object (e.g. the four linear shape functions of FE_Q<2>(1) in 2D) is computed, which gives the vector entries to be summed into the dst
vector. Note that the above code needs to explicitly loop over the components in the vectorized array for evaluating the function, which is necessary for interfacing with a generic Function object with double arguments. Simple functions can also be implemented in VectorizedArray form directly as VectorizedArray provides the basic math operations.
For evaluating a bilinear form, the evaluation on a source vector is combined with the integration involving test functions that get written into a result vector. This setting is the context of matrixfree operator evaluation and explained in the step37 and step48 tutorial programs.
Note that the two vector accesses through FEEvaluation::read_dof_values and FEEvaluation::distribute_local_to_global resolve constraints on the fly, based on the AffineConstraints object specified at the MatrixFree::reinit() call. In case the values in the degrees of freedom are of interest (usually only the values in quadrature points are necessary), these can be accessed through FEEvaluation::get_dof_value(i), where i is the index of the basis function. Note that the numbering of the degrees of freedom for continuous elements in FEEvaluation is different from the ordering in FE_Q (or FEValues) because FEEvaluation needs to access them in lexicographic order, which is the ordering used in FE_DGQ, for instance. Reindexing would be too expensive because the access inside evaluate() and integrate() is on the critical path in the tensorial evaluation parts. An alternative to filling the DoF values by read_dof_values() before an evaluate() call is to manually assign a value by a set_dof_value() call. Likewise, if the local result of integration should be further processed rather than scattered into a vector by distribute_local_to_global(), one can access it by get_dof_value() after an integrate() call. An example for using the values of an integral in a different context is fast assembly of matrices as shown in the next subsection.
For most operator evaluation tasks that repeatedly go through the mesh, the realization by MatrixFree that combines precomputed data for the mapping (Jacobian transformations for the geometry description) with onthefly evaluation of basis functions is the most efficient way of doing things. In other words, the framework selects a tradeoff between memory usage and initialization of objects that is suitable for replacement of matrixvector products or explicit time integration in a matrixfree way.
The second form of usage is to initialize FEEvaluation from geometry information generated by FEValues. This allows to apply the integration loops on the fly without prior initialization of MatrixFree objects. This can be useful when the memory and initialization cost of MatrixFree is not acceptable, e.g. when a different number of quadrature points should be used for one single evaluation in error computation. Also, when using the routines of this class to assemble matrices the tradeoff implied by the MatrixFree class may not be desired. In such a case, the cost to initialize the necessary geometry data on the fly is comparably low and thus avoiding a global object MatrixFree can be useful. When used in this way, reinit methods reminiscent from FEValues with a cell iterator are used. However, note that this model results in working on a single cell at a time, with geometry data duplicated in all components of the vectorized array. Thus, vectorization is only useful when it can apply the same operation on different data, e.g. when performing matrix assembly.
As an example, consider the following code to assemble the contributions to the Laplace matrix:
This code generates the columns of the cell matrix with the loop over i
above. The way this is done is the following: FEEvaluation's routines focus on the evaluation of finite element operators, so for computing a cell matrix out of an operator evaluation it is applied to all the unit vectors on the cell. Applying the operator on a unit vector might seem inefficient but the evaluation routines used here are so quick that they still work much faster than what is possible with FEValues. In particular, the complexity is (fe_degree+1)^{2*dim+1}
rather than (fe_degree+1)^{3*dim}
.
Due to vectorization, we can generate matrix columns for several unit vectors at a time (e.g. 4). The variable n_items
make sure that we do the last iteration where the number of cell dofs is not divisible by the vectorization length correctly. Also note that we need to get the internal dof numbering applied by fe_eval because FEEvaluation internally uses a lexicographic numbering of degrees of freedom as explained above.
The temporary data for holding the solution values on the local degrees of freedom as well as the interpolated values, gradients, and Hessians on quadrature points is a scratch array provided by MatrixFree::acquire_scratch_data() that is reused between different calls to FEEvaluation. Therefore, constructing an FEEvaluation object is typically cheap and does not involve any expensive operation. Only a few dozen pointers to the actual data fields are set during construction. Therefore, no negative performance impact arises when creating an FEEvaluation several times per loop, such as at the top of a local_cell_operation
operation that is split in small chunks for a parallel for loop, obviating a separate scratch data field for parallel loops as necessary in the loop of WorkStream
.
When using the FEEvaluation class in multithreaded mode, the thread local storage of the scratch data in MatrixFree automatically makes sure that each thread gets it private data array. Note, however, that deal.II must be compiled with thread support also when all the thread parallelization is provided externally and not done via deal.II's routines, such as OpenMP. This is because deal.II needs to know the notation of thread local storage. The FEEvaluation kernels have been verified to work within OpenMP loops.
This class is designed to perform all arithmetics on singleinstruction multipledata (SIMD) instructions present on modern CPUs by explicit vectorization, which are made available in deal.II through the class VectorizedArray, using the widest vector width available at configure/compile time. In order to keep programs flexible, FEEvaluation always applies vectorization over several elements. This is often the best compromise because computations on different elements are usually independent in the finite element method (except of course the process of adding an integral contribution to a global residual vector), also in more complicated scenarios: Stabilization parameter can e.g. be defined as the maximum of some quantities on all quadrature points of a cell divided by the cell's volume, but without locally mixing the results with neighbors. Using the terminology from computer architecture, the design of FEEvaluation relies on not doing any crosslane data exchange when operating on the cell in typical integration scenarios.
When the number of cells in the problem is not a multiple of the number of array elements in the SIMD vector, the implementation of FEEvaluation fills in some dummy entries in the unused SIMD lanes and carries them around nonetheless, a choice made necessary since the length of VectorizedArray is fixed at compile time. Yet, this approach most often results in superior code as compared to an autovectorization setup where an alternative unvectorized code path would be necessary next to the vectorized version to be used on fully populated lanes, together with a dispatch mechanism. In read_dof_values
, the empty lanes resulting from a reinit() call to an incomplete batch of cells are set to zero, whereas distribute_local_to_global
or set_dof_values
simply ignores the content in the empty lanes. The number of actually filled SIMD lanes can by queried by MatrixFree::n_components_filled().
Obviously, the computations performed on the artificial lanes (without real data) should never be mixed with valid results. The contract in using this class is that the user makes sure that lanes are not crossed in user code, in particular since it is not clear a priori which cells are going to be put together in vectorization. For example, results on an element should not be added to results on other elements except through the global vector access methods or by access that is masked by MatrixFree::n_components_filled(). No guarantee can be made that results on artificial lanes will always be zero that can safely be added to other results: The data on JxW or Jacobians is copied from the last valid lane in order to avoid division by zero that could trigger floating point exceptions or trouble in other situations.
This class contains specialized evaluation routines for elements based on tensorproduct quadrature formulas and tensorproductlike shape functions, including standard FE_Q or FE_DGQ elements and quadrature points symmetric around 0.5 (like Gauss quadrature), FE_DGP elements based on truncated tensor products as well as the faster case of GaussLobatto elements with GaussLobatto quadrature which give diagonal mass matrices and quicker evaluation internally. The main benefit of this class is the evaluation of all shape functions in all quadrature or integration over all shape functions in dim (fe_degree+1)^{dim+1}
operations instead of the slower (fe_degree+1)^{2*dim}
complexity in the evaluation routines of FEValues. This is done by an algorithm called sum factorization which factors out constant factors during the evaluation along a coordinate direction. This algorithm is the basis of many spectral element algorithms.
Note that many of the operations available through this class are inherited from the base class FEEvaluationBase, in particular reading from and writing to vectors. Also, the class inherits from FEEvaluationAccess that implements access to values, gradients and Hessians of the finite element function on quadrature points.
This class assumes that the shape functions of the FiniteElement under consideration do not depend on the geometry of the cells in real space. Currently, other finite elements cannot be treated with the matrixfree concept.
The default usage model of FEEvaluation expects the polynomial degree to be given as a template parameter. This requirement guarantees maximum efficiency: The sum factorization evaluation performs a number of nested short 1D loops of length equal to the polynomial degree plus one. If the loop bounds are known at compile time, the compiler can unroll loops as deemed most efficient by its heuristics. At least the innermost loop is almost always completely unrolled, avoiding the loop overhead.
However, carrying the polynomial degree (and the number of quadrature points) as a template parameter makes things more complicated in codes where different polynomial degrees should be considered, e.g. in application codes where the polynomial degree is given through an input file. The recommended approach for good performance is to create different cell functions, possibly through different operator classes that are derived from a common base class with virtual functions to access the operator evaluation. The program then keeps only a pointer to the common base class after initializing templated derived classes with fixed polynomial degree that are selected from the detected polynomial degree. This approach requires apriori knowledge of the range of valid degrees and can lead to rather long compile times in programs with many apply functions.
A flexible choice of the polynomial degree based on the information in the element passed to the initialization is also supported by FEEvaluation, even though it runs two to three times more slowly. For this, set the template parameter for the polynomial degree to 1 (and choose an arbitrary number for the number of quadrature points), which switches to the other code path. Internally, an evaluator object with template specialization for 1 is invoked that runs according to runtime bounds, whereas the default case with compiletime bounds given through fe_degree selects another template class without compromising efficiency.
An overview of the performance of FEEvaluation is given in the following figure. It considers the time spent per degree of freedom for evaluating the Laplacian with continuous finite elements using a code similar to the step37 tutorial program for singleprecision arithmetics. The time is based on an experiment on a single core of an Intel Xeon E52687W v4, running at 3.4 GHz and measured at problem sizes around 10 million. The plot lists the computational time (around 0.1 seconds) divided by the number of degrees freedom.
The figure shows that the templated version is between 2.5 and 3 times faster. The fastest turnaround on this setup is for polynomial degree 5 at 7.4e9 seconds per degree of freedom or 134 million degrees of freedom per second  on a single core. The nontemplated version is also fastest at polynomial degree 5 with 2.1e9 seconds per degree of freedom or 48 million degrees of freedom per second.
FEEvaluation also allows for treating vectorvalued problems through a template parameter on the number of components:
If used this way, the components can be gathered from several components of an std::vector<VectorType>
through the call
where the 0 means that the vectors starting from the zeroth vector in the std::vector
should be used, src[0], src[1], ..., src[n_components1]
.
An alternative way for reading multicomponent systems is possible if the DoFHandler underlying the MatrixFree data is based on an FESystem of n_components
entries. In that case, a single vector is provided for the read_dof_values() and distribute_local_to_global() calls.
An important property of FEEvaluation in multicomponent systems is the layout of multiple components in the get_value(), get_gradient(), or get_dof_value() calls. In this case, instead of a scalar return field VectorizedArray<double> a tensor is returned,
In a similar vein, the submit_value() and submit_gradient() calls take tensors of values. Note that there exist specializations for n_components=1
and n_components=dim
, which are provided through the base class FEEvaluationAccess. In the scalar case, these provide the scalar return types described above. In the vectorvalued case, the gradient is converted from Tensor<1,dim,Tensor<1,dim,VectorizedArray<double> > >
to Tensor<2,dim,VectorizedArray<double> >
. Furthermore, additional operations such as the diveregence or curl are available.
In case different shape functions are combined, for example mixed finite element formulations in Stokes flow, two FEEvaluation objects are created, one for the velocity and one for the pressure. Those are then combined on quadrature points:
This code assumes that a BlockVector of two components describes the velocity and pressure components, respectively. For identifying the different DoFHandler objects for velocity and pressure, the second argument to the FEEvaluation objects specify the respective component 0 for velocity and 1 for pressure. For further examples of vectorvalued problems, the deal.II test suite includes a few additional examples as well, e.g. the Stokes operator described above is found at https://github.com/dealii/dealii/blob/master/tests/matrix_free/matrix_vector_stokes_noflux.cc
The design of FEEvaluation and MatrixFree separates the geometry from the basis functions. Therefore, several DoFHandler objects (or the same DoFHandler equipped with different constraint objects) can share the same geometry information like in the Stokes example above. All geometry is cached once in MatrixFree, so FEEvaluation does not need to do expensive initialization calls and rather sets a few pointers. This realization is based on the idea that the geometry information is needed only once also when several fields are evaluated, in a departure from FEValues which sets up the internal mapping data for each field. If for example a multicomponent PDE involves the shape values on one component and the shape gradient on the other, no efficiency is lost if both are based on the same MatrixFree object where the update flags specify that both update_values
, update_gradients
, and update_jxw_values
are given. The selection of desired quantities of shape values is through the flags in the evaluate() or integrate calls and the access at quadrature points:
In the loop over quadrature points, one can ask any of the two FEEvaluation objects — it does not really matter which one because they only keep pointers to the quadrature point data — to provide the quadrature point location.
This observation also translates to the case when different differential operators are implemented in a program, for example the action of a mass matrix for one phase of the algorithm and the action of a stiffness matrix in another one. Only a single MatrixFree object is necessary, maintaining full efficiency by using different local functions with the respective implementation in separate FEEvaluation objects. In other words, a user does not need to bother about being conservative when providing update_flags to the initialization of MatrixFree for efficiency reasons  no overhead incurs inside FEEvaluation, except for at most one or two more if
statements inside the FEEvaluation::reinit() call. Rather, the largest set of flags necessary among all calls is perfectly fine from an efficiency point of view.
For the combination of different fields, including different solution vectors that come from different time steps, it is mandatory that all FEEvaluation objects share the same MatrixFree object. This is because the way cells are looped by MatrixFree::cell_loop() can be different for different DoFHandler or AffineConstraints arguments. More precisely, even though the layout is going to be the same in serial, there is no guarantee about the ordering for different DoFHandler/AffineConstraints in the MPI case. The reason is that the algorithm detects cells that need data exchange with MPI and those can change for different elements — FE_Q with hanging node constraints connects to more neighbors than a FE_DGQ element, for instance, and cells which need data exchange are put in different positions inside the cell loop. Of course, if the exact same DoFHandler, AffineConstraints, and options (such as the setting for thread parallelism) are set, then the order is going to be the same because the algorithm is deterministic.
dim  Dimension in which this class is to be used
fe_degree  Degree of the tensor product finite element with fe_degree+1 degrees of freedom per coordinate direction. Can be set to 1 if the degree is not known at compile time, but performance will usually be worse by a factor of 23.
n_q_points_1d  Number of points in the quadrature formula in 1D, defaults to fe_degree+1
n_components  Number of vector components when solving a system of PDEs. If the same operation is applied to several components of a PDE (e.g. a vector Laplace equation), they can be applied simultaneously with one call (and often more efficiently). Defaults to 1.
Number  Number format, usually double or float . Defaults to double
Definition at line 55 of file fe_evaluation.h.
using FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::BaseClass = FEEvaluationAccess<dim, n_components_, Number, false>
An alias to the base class.
Definition at line 2171 of file fe_evaluation.h.
using FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::number_type = Number
An underlying number type specified as template argument.
Definition at line 2176 of file fe_evaluation.h.
using FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::value_type = typename BaseClass::value_type
The type of function values, e.g. VectorizedArray<Number>
for n_components=1
or Tensor<1,dim,VectorizedArray<Number> >
for n_components=dim
.
Definition at line 2183 of file fe_evaluation.h.
using FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::gradient_type = typename BaseClass::gradient_type
The type of gradients, e.g. Tensor<1,dim,VectorizedArray<Number>>
for n_components=1
or Tensor<2,dim,VectorizedArray<Number> >
for n_components=dim
.
Definition at line 2190 of file fe_evaluation.h.
FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::FEEvaluation  (  const MatrixFree< dim, Number > &  matrix_free,
const unsigned int  dof_no = 0 ,

const unsigned int  quad_no = 0 ,

const unsigned int  first_selected_component = 0

)
Constructor. Takes all data stored in MatrixFree. If applied to problems with more than one finite element or more than one quadrature formula selected during construction of matrix_free
, the appropriate component can be selected by the optional arguments.
matrix_free  Data object that contains all data
dof_no  If matrix_free was set up with multiple DoFHandler objects, this parameter selects to which DoFHandler/AffineConstraints pair the given evaluator should be attached to.
quad_no  If matrix_free was set up with multiple Quadrature objects, this parameter selects the appropriate number of the quadrature formula.
first_selected_component  If the dof_handler selected by dof_no uses an FESystem consisting of more than one component, this parameter allows for selecting the component where the current evaluation routine should start. Note that one evaluator does not support combining different shape functions in different components. In other words, the same base element of a FESystem needs to be set for the components between first_selected_component and first_selected_component+n_components_ .
FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::FEEvaluation  (  const Mapping< dim > &  mapping,
const FiniteElement< dim > &  fe,
const Quadrature< 1 > &  quadrature,
const UpdateFlags  update_flags,
const unsigned int  first_selected_component = 0

)
Constructor that comes with reduced functionality and works similar as FEValues. The arguments are similar to the ones passed to the constructor of FEValues, with the notable difference that FEEvaluation expects a one dimensional quadrature formula, Quadrature<1>, instead of a dim
dimensional one. The finite element can be both scalar or vector valued, but this method always only selects a scalar base element at a time (with n_components
copies as specified by the class template). For vector valued elements, the optional argument first_selected_component
allows to specify the index of the base element to be used for evaluation. Note that the internal data structures always assume that the base element is primitive, nonprimitive are not supported currently.
As known from FEValues, a call to the reinit method with a Triangulation<dim>::cell_iterator is necessary to make the geometry and degrees of freedom of the current class known. If the iterator includes DoFHandler information (i.e., it is a DoFHandler<dim>::cell_iterator or similar), the initialization allows to also read from or write to vectors in the standard way for DoFHandler<dim>::active_cell_iterator types for one cell at a time. However, this approach is much slower than the path with MatrixFree with MPI since index translation has to be done. As only one cell at a time is used, this method does not vectorize over several elements (which is most efficient for vector operations), but only possibly within the element if the evaluate/integrate routines are combined inside user code (e.g. for computing cell matrices).
FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::FEEvaluation  (  const FiniteElement< dim > &  fe,
const Quadrature< 1 > &  quadrature,
const UpdateFlags  update_flags,
const unsigned int  first_selected_component = 0

)
Constructor for the reduced functionality. This constructor is equivalent to the other one except that it makes the object use a \(Q_1\) mapping (i.e., an object of type MappingQGeneric(1)) implicitly.
FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::FEEvaluation  (  const FiniteElement< dim > &  fe,
const FEEvaluationBase< dim, n_components_other, Number > &  other,
const unsigned int  first_selected_component = 0

)
Constructor for the reduced functionality. Similar to the other constructor with FiniteElement argument but using another FEEvaluationBase object to provide information about the geometry. This allows several FEEvaluation objects to share the geometry evaluation, i.e., the underlying mapping and quadrature points do only need to be evaluated once. Make sure to not pass an optional object around when you intend to use the FEEvaluation object in parallel to the given one because otherwise the intended sharing may create race conditions.
FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::FEEvaluation  (  const FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number > &  other  )
Copy constructor. If FEEvaluationBase was constructed from a mapping, fe, quadrature, and update flags, the underlying geometry evaluation based on FEValues will be deepcopied in order to allow for using in parallel with threads.
FEEvaluation& FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::operator=  (  const FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number > &  other  )
Copy assignment operator. If FEEvaluationBase was constructed from a mapping, fe, quadrature, and update flags, the underlying geometry evaluation based on FEValues will be deepcopied in order to allow for using in parallel with threads.
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::reinit  (  const unsigned int  cell_batch_index  )
Initialize the operation pointer to the current cell batch index. Unlike the reinit functions taking a cell iterator as argument below and the FEValues::reinit() methods, where the information related to a particular cell is generated in the reinit call, this function is very cheap since all data is precomputed in matrix_free
, and only a few indices have to be set appropriately.
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::reinit  (  const TriaIterator< DoFCellAccessor< DoFHandlerType, level_dof_access >> &  cell  )
Initialize the data to the current cell using a TriaIterator object as usual in FEValues. The argument is either of type DoFHandler::active_cell_iterator or DoFHandler::level_cell_iterator. This option is only available if the FEEvaluation object was created with a finite element, quadrature formula and correct update flags and without a MatrixFree object. This initialization method loses the ability to use vectorization, see also the description of the FEEvaluation class. When this reinit method is used, FEEvaluation can also read from vectors (but less efficient than with data coming from MatrixFree).
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::reinit  (  const typename Triangulation< dim >::cell_iterator &  cell  )
Initialize the data to the current cell using a TriaIterator object as usual in FEValues. This option is only available if the FEEvaluation object was created with a finite element, quadrature formula and correct update flags and without a MatrixFree object. This initialization method loses the ability to use vectorization, see also the description of the FEEvaluation class. When this reinit method is used, FEEvaluation can not read from vectors because no DoFHandler information is available.
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::evaluate  (  const bool  evaluate_values,
const bool  evaluate_gradients,
const bool  evaluate_hessians = false

)
Evaluate the function values, the gradients, and the Hessians of the polynomial interpolation from the DoF values in the input vector to the quadrature points on the unit cell. The function arguments specify which parts shall actually be computed. This function has to be called first so that the access functions get_value()
, get_gradient()
or get_laplacian
give useful information (unless these values have been set manually).
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::evaluate  (  const VectorizedArray< Number > *  values_array,
const bool  evaluate_values,
const bool  evaluate_gradients,
const bool  evaluate_hessians = false

)
Evaluate the function values, the gradients, and the Hessians of the polynomial interpolation from the DoF values in the input array values_array
to the quadrature points on the unit cell. If multiple components are involved in the current FEEvaluation object, the sorting in values_array
is such that all degrees of freedom for the first component come first, then all degrees of freedom for the second, and so on. The function arguments specify which parts shall actually be computed. This function has to be called first so that the access functions get_value()
, get_gradient()
or get_laplacian
give useful information (unless these values have been set manually).
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::gather_evaluate  (  const VectorType &  input_vector,
const bool  evaluate_values,
const bool  evaluate_gradients,
const bool  evaluate_hessians = false

)
Read from the input vector and evaluates the function values, the gradients, and the Hessians of the polynomial interpolation of the vector entries from input_vector
associated with the current cell to the quadrature points on the unit cell. The function arguments specify which parts shall actually be computed. This function has to be called first so that the access functions get_value()
, get_gradient()
or get_laplacian
give useful information (unless these values have been set manually).
This call is equivalent to calling read_dof_values() followed by evaluate(), but might internally use some additional optimizations.
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::integrate  (  const bool  integrate_values,
const bool  integrate_gradients
)
This function takes the values and/or gradients that are stored on quadrature points, tests them by all the basis functions/gradients on the cell and performs the cell integration. The two function arguments integrate_values
and integrate_gradients
are used to enable/disable summation of the contributions submitted to the values or gradients slots, respectively. The result is written into the internal data field dof_values
(that is usually written into the result vector by the distribute_local_to_global() or set_dof_values() methods).
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::integrate  (  const bool  integrate_values,
const bool  integrate_gradients,
VectorizedArray< Number > *  values_array
)
This function takes the values and/or gradients that are stored on quadrature points, tests them by all the basis functions/gradients on the cell and performs the cell integration. The two function arguments integrate_values
and integrate_gradients
are used to enable/disable summation of the contributions submitted to the values or gradients slots, respectively. As opposed to the other integrate() method, this call stores the result of the testing in the given array values_array
, whose previous results is overwritten, rather than writing it on the internal data structures behind begin_dof_values().
void FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::integrate_scatter  (  const bool  integrate_values,
const bool  integrate_gradients,
VectorType &  output_vector
)
This function takes the values and/or gradients that are stored on quadrature points, tests them by all the basis functions/gradients on the cell, performs the cell integration, and adds the result into the global vector output_vector
on the degrees of freedom associated with the present cell index. The two function arguments integrate_values
and integrate_gradients
are used to enable/disable summation of the contributions submitted to the values or gradients slots, respectively.
This call is equivalent to calling integrate() followed by distribute_local_to_global(), but might internally use some additional optimizations.
Point<dim, VectorizedArray<Number> > FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::quadrature_point  (  const unsigned int  q_point  )  const
Return the qth quadrature point in real coordinates stored in MappingInfo.

private
Checks if the template arguments regarding degree of the element corresponds to the actual element used at initialization.

static
The dimension given as template argument.
Definition at line 2195 of file fe_evaluation.h.

static
The number of solution components of the evaluator given as template argument.
Definition at line 2201 of file fe_evaluation.h.

static
The static number of quadrature points determined from the given template argument n_q_points_1d
. Note that the actual number of quadrature points, n_q_points
, can be different if fe_degree=1
is given and runtime loop lengths are used rather than compile time ones.
Definition at line 2209 of file fe_evaluation.h.

static
The static number of degrees of freedom of a scalar component determined from the given template argument fe_degree
. Note that the actual number of degrees of freedom dofs_per_component
can be different if fe_degree=1
is given or if the underlying is of more complicated type than the usual FE_Q or FE_DGQ ones, such as FE_DGP.
Definition at line 2219 of file fe_evaluation.h.

static
The static number of degrees of freedom of all components determined from the given template argument fe_degree
. Note that the actual number of degrees of freedom dofs_per_cell
can be different if fe_degree=1
is given or if the underlying is of more complicated type than the usual FE_Q or FE_DGQ ones, such as FE_DGP.
Definition at line 2229 of file fe_evaluation.h.

static
The static number of degrees of freedom of all components determined from the given template argument fe_degree
. Note that the actual number of degrees of freedom dofs_per_cell
can be different if fe_degree=1
is given or if the underlying is of more complicated type than the usual FE_Q or FE_DGQ ones, such as FE_DGP.
Definition at line 2239 of file fe_evaluation.h.
const unsigned int FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::dofs_per_component
The number of degrees of freedom of a single component on the cell for the underlying evaluation object. Usually close to static_dofs_per_component, but the number depends on the actual element selected and is thus not static.
Definition at line 2500 of file fe_evaluation.h.
const unsigned int FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::dofs_per_cell
The number of degrees of freedom on the cell accumulated over all components in the current evaluation object. Usually close to static_dofs_per_cell = static_dofs_per_component*n_components, but the number depends on the actual element selected and is thus not static.
Definition at line 2508 of file fe_evaluation.h.
const unsigned int FEEvaluation< dim, fe_degree, n_q_points_1d, n_components_, Number >::n_q_points
The number of quadrature points in use. If the number of quadrature points in 1d is given as a template, this number is simply the dim
th power of that value. If the element degree is set to 1 (dynamic selection of element degree), the static value of quadrature points is inaccurate and this value must be used instead.
Definition at line 2517 of file fe_evaluation.h.
