Reference documentation for deal.II version 9.3.0

#include <deal.II/fe/fe.h>

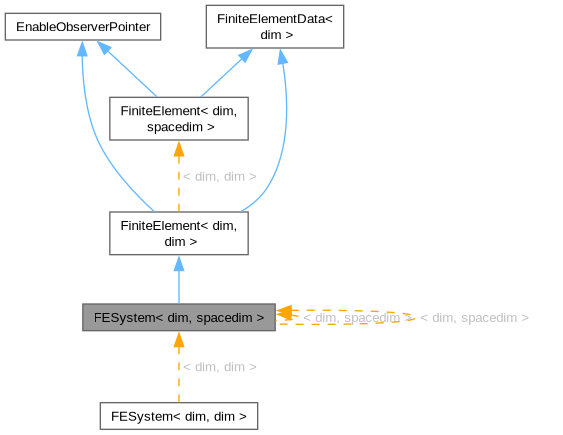

Classes
class  InternalData
Public Types
enum  Conformity { unknown = 0x00, L2 = 0x01, Hcurl = 0x02, Hdiv = 0x04, H1 = Hcurl  Hdiv, H2 = 0x0e }
Public Member Functions
FESystem ()=delete
FESystem (const FiniteElement< dim, spacedim > &fe, const unsigned int n_elements)
FESystem (const FiniteElement< dim, spacedim > &fe1, const unsigned int n1, const FiniteElement< dim, spacedim > &fe2, const unsigned int n2)
FESystem (const FiniteElement< dim, spacedim > &fe1, const unsigned int n1, const FiniteElement< dim, spacedim > &fe2, const unsigned int n2, const FiniteElement< dim, spacedim > &fe3, const unsigned int n3)
FESystem (const FiniteElement< dim, spacedim > &fe1, const unsigned int n1, const FiniteElement< dim, spacedim > &fe2, const unsigned int n2, const FiniteElement< dim, spacedim > &fe3, const unsigned int n3, const FiniteElement< dim, spacedim > &fe4, const unsigned int n4)
FESystem (const FiniteElement< dim, spacedim > &fe1, const unsigned int n1, const FiniteElement< dim, spacedim > &fe2, const unsigned int n2, const FiniteElement< dim, spacedim > &fe3, const unsigned int n3, const FiniteElement< dim, spacedim > &fe4, const unsigned int n4, const FiniteElement< dim, spacedim > &fe5, const unsigned int n5)
FESystem (const std::vector< const FiniteElement< dim, spacedim > *> &fes, const std::vector< unsigned int > &multiplicities)
template<class... FEPairs>
FESystem (FEPairs &&... fe_pairs)
FESystem (const std::initializer_list< std::pair< std::unique_ptr< FiniteElement< dim, spacedim >>, unsigned int >> &fe_systems)
FESystem (const FESystem< dim, spacedim > &)=delete
FESystem (FESystem< dim, spacedim > &&other_fe_system) noexcept
virtual  ~FESystem () override=default
virtual std::string  get_name () const override
virtual std::unique_ptr< FiniteElement< dim, spacedim > >  clone () const override
virtual UpdateFlags  requires_update_flags (const UpdateFlags update_flags) const override
virtual const FiniteElement< dim, spacedim > &  get_sub_fe (const unsigned int first_component, const unsigned int n_selected_components) const override
virtual double  shape_value (const unsigned int i, const Point< dim > &p) const override
virtual double  shape_value_component (const unsigned int i, const Point< dim > &p, const unsigned int component) const override
virtual Tensor< 1, dim >  shape_grad (const unsigned int i, const Point< dim > &p) const override
virtual Tensor< 1, dim >  shape_grad_component (const unsigned int i, const Point< dim > &p, const unsigned int component) const override
virtual Tensor< 2, dim >  shape_grad_grad (const unsigned int i, const Point< dim > &p) const override
virtual Tensor< 2, dim >  shape_grad_grad_component (const unsigned int i, const Point< dim > &p, const unsigned int component) const override
virtual Tensor< 3, dim >  shape_3rd_derivative (const unsigned int i, const Point< dim > &p) const override
virtual Tensor< 3, dim >  shape_3rd_derivative_component (const unsigned int i, const Point< dim > &p, const unsigned int component) const override
virtual Tensor< 4, dim >  shape_4th_derivative (const unsigned int i, const Point< dim > &p) const override
virtual Tensor< 4, dim >  shape_4th_derivative_component (const unsigned int i, const Point< dim > &p, const unsigned int component) const override
virtual void  get_interpolation_matrix (const FiniteElement< dim, spacedim > &source, FullMatrix< double > &matrix) const override
virtual const FiniteElement< dim, spacedim > &  base_element (const unsigned int index) const override
virtual bool  has_support_on_face (const unsigned int shape_index, const unsigned int face_index) const override
virtual const FullMatrix< double > &  get_restriction_matrix (const unsigned int child, const RefinementCase< dim > &refinement_case=RefinementCase< dim >::isotropic_refinement) const override
virtual const FullMatrix< double > &  get_prolongation_matrix (const unsigned int child, const RefinementCase< dim > &refinement_case=RefinementCase< dim >::isotropic_refinement) const override
virtual unsigned int  face_to_cell_index (const unsigned int face_dof_index, const unsigned int face, const bool face_orientation=true, const bool face_flip=false, const bool face_rotation=false) const override
virtual Point< dim >  unit_support_point (const unsigned int index) const override
virtual Point< dim  1 >  unit_face_support_point (const unsigned int index, const unsigned int face_no=0) const override
virtual std::pair< Table< 2, bool >, std::vector< unsigned int > >  get_constant_modes () const override
virtual void  convert_generalized_support_point_values_to_dof_values (const std::vector< Vector< double >> &support_point_values, std::vector< double > &dof_values) const override
virtual std::size_t  memory_consumption () const override
std::pair< std::unique_ptr< FiniteElement< dim, spacedim > >, unsigned int >  operator^ (const unsigned int multiplicity) const
const FiniteElement< dim, spacedim > &  operator[] (const unsigned int fe_index) const
virtual bool  operator== (const FiniteElement< dim, spacedim > &fe) const
bool  operator== (const FiniteElementData &) const
bool  operator!= (const FiniteElement< dim, spacedim > &) const
template<class Archive >
void  serialize (Archive &ar, const unsigned int version)
ReferenceCell  reference_cell () const
unsigned int  n_unique_quads () const
unsigned int  n_unique_faces () const
unsigned int  n_dofs_per_vertex () const
unsigned int  n_dofs_per_line () const
unsigned int  n_dofs_per_quad (unsigned int face_no=0) const
unsigned int  max_dofs_per_quad () const
unsigned int  n_dofs_per_hex () const
unsigned int  n_dofs_per_face (unsigned int face_no=0, unsigned int child=0) const
unsigned int  max_dofs_per_face () const
unsigned int  n_dofs_per_cell () const
template<int structdim>
unsigned int  n_dofs_per_object (const unsigned int i=0) const
unsigned int  n_components () const
unsigned int  n_blocks () const
const BlockIndices &  block_indices () const
unsigned int  tensor_degree () const
bool  conforms (const Conformity) const
unsigned int  get_first_line_index () const
unsigned int  get_first_quad_index (const unsigned int quad_no=0) const
unsigned int  get_first_hex_index () const
unsigned int  get_first_face_line_index (const unsigned int face_no=0) const
unsigned int  get_first_face_quad_index (const unsigned int face_no=0) const
Functions to support hp
virtual bool  hp_constraints_are_implemented () const override
virtual void  get_face_interpolation_matrix (const FiniteElement< dim, spacedim > &source, FullMatrix< double > &matrix, const unsigned int face_no=0) const override
virtual void  get_subface_interpolation_matrix (const FiniteElement< dim, spacedim > &source, const unsigned int subface, FullMatrix< double > &matrix, const unsigned int face_no=0) const override
virtual std::vector< std::pair< unsigned int, unsigned int > >  hp_vertex_dof_identities (const FiniteElement< dim, spacedim > &fe_other) const override
virtual std::vector< std::pair< unsigned int, unsigned int > >  hp_line_dof_identities (const FiniteElement< dim, spacedim > &fe_other) const override
virtual std::vector< std::pair< unsigned int, unsigned int > >  hp_quad_dof_identities (const FiniteElement< dim, spacedim > &fe_other, const unsigned int face_no=0) const override
virtual FiniteElementDomination::Domination  compare_for_domination (const FiniteElement< dim, spacedim > &fe_other, const unsigned int codim=0) const override final
Transfer and constraint matrices
bool  prolongation_is_implemented () const
bool  isotropic_prolongation_is_implemented () const
bool  restriction_is_implemented () const
bool  isotropic_restriction_is_implemented () const
bool  restriction_is_additive (const unsigned int index) const
const FullMatrix< double > &  constraints (const ::internal::SubfaceCase< dim > &subface_case=::internal::SubfaceCase< dim >::case_isotropic) const
bool  constraints_are_implemented (const ::internal::SubfaceCase< dim > &subface_case=::internal::SubfaceCase< dim >::case_isotropic) const
Index computations
std::pair< unsigned int, unsigned int >  system_to_component_index (const unsigned int index) const
unsigned int  component_to_system_index (const unsigned int component, const unsigned int index) const
std::pair< unsigned int, unsigned int >  face_system_to_component_index (const unsigned int index, const unsigned int face_no=0) const
unsigned int  adjust_quad_dof_index_for_face_orientation (const unsigned int index, const unsigned int face_no, const bool face_orientation, const bool face_flip, const bool face_rotation) const
unsigned int  adjust_line_dof_index_for_line_orientation (const unsigned int index, const bool line_orientation) const
const ComponentMask &  get_nonzero_components (const unsigned int i) const
unsigned int  n_nonzero_components (const unsigned int i) const
bool  is_primitive () const
bool  is_primitive (const unsigned int i) const
unsigned int  n_base_elements () const
unsigned int  element_multiplicity (const unsigned int index) const
const FiniteElement< dim, spacedim > &  get_sub_fe (const ComponentMask &mask) const
std::pair< std::pair< unsigned int, unsigned int >, unsigned int >  system_to_base_index (const unsigned int index) const
std::pair< std::pair< unsigned int, unsigned int >, unsigned int >  face_system_to_base_index (const unsigned int index, const unsigned int face_no=0) const
types::global_dof_index  first_block_of_base (const unsigned int b) const
std::pair< unsigned int, unsigned int >  component_to_base_index (const unsigned int component) const
std::pair< unsigned int, unsigned int >  block_to_base_index (const unsigned int block) const
std::pair< unsigned int, types::global_dof_index >  system_to_block_index (const unsigned int component) const
unsigned int  component_to_block_index (const unsigned int component) const
Component and block matrices
ComponentMask  component_mask (const FEValuesExtractors::Scalar &scalar) const
ComponentMask  component_mask (const FEValuesExtractors::Vector &vector) const
ComponentMask  component_mask (const FEValuesExtractors::SymmetricTensor< 2 > &sym_tensor) const
ComponentMask  component_mask (const BlockMask &block_mask) const
BlockMask  block_mask (const FEValuesExtractors::Scalar &scalar) const
BlockMask  block_mask (const FEValuesExtractors::Vector &vector) const
BlockMask  block_mask (const FEValuesExtractors::SymmetricTensor< 2 > &sym_tensor) const
BlockMask  block_mask (const ComponentMask &component_mask) const
Support points and interpolation
const std::vector< Point< dim > > &  get_unit_support_points () const
bool  has_support_points () const
const std::vector< Point< dim  1 > > &  get_unit_face_support_points (const unsigned int face_no=0) const
bool  has_face_support_points (const unsigned int face_no=0) const
const std::vector< Point< dim > > &  get_generalized_support_points () const
bool  has_generalized_support_points () const
GeometryPrimitive  get_associated_geometry_primitive (const unsigned int cell_dof_index) const
Subscriptor functionality
Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.
void  subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
void  unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
unsigned int  n_subscriptions () const
template<typename StreamType >
void  list_subscribers (StreamType &stream) const
void  list_subscribers () const
Static Public Member Functions
static ::ExceptionBase &  ExcShapeFunctionNotPrimitive (int arg1)
static ::ExceptionBase &  ExcFENotPrimitive ()
static ::ExceptionBase &  ExcUnitShapeValuesDoNotExist ()
static ::ExceptionBase &  ExcFEHasNoSupportPoints ()
static ::ExceptionBase &  ExcEmbeddingVoid ()
static ::ExceptionBase &  ExcProjectionVoid ()
static ::ExceptionBase &  ExcWrongInterfaceMatrixSize (int arg1, int arg2)
static ::ExceptionBase &  ExcInterpolationNotImplemented ()
static ::ExceptionBase &  ExcInUse (int arg1, std::string arg2, std::string arg3)
static ::ExceptionBase &  ExcNoSubscriber (std::string arg1, std::string arg2)
Public Attributes
const unsigned int  dofs_per_vertex
const unsigned int  dofs_per_line
const unsigned int  dofs_per_quad
const unsigned int  dofs_per_hex
const unsigned int  first_line_index
const unsigned int  first_quad_index
const unsigned int  first_hex_index
const unsigned int  first_face_line_index
const unsigned int  first_face_quad_index
const unsigned int  dofs_per_face
const unsigned int  dofs_per_cell
const unsigned int  components
const unsigned int  degree
const Conformity  conforming_space
const BlockIndices  block_indices_data
Static Public Attributes
static const unsigned int  space_dimension = spacedim
static const unsigned int  dimension = dim
Protected Member Functions
virtual std::unique_ptr< typename FiniteElement< dim, spacedim >::InternalDataBase >  get_data (const UpdateFlags update_flags, const Mapping< dim, spacedim > &mapping, const Quadrature< dim > &quadrature, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
virtual std::unique_ptr< typename FiniteElement< dim, spacedim >::InternalDataBase >  get_face_data (const UpdateFlags update_flags, const Mapping< dim, spacedim > &mapping, const hp::QCollection< dim  1 > &quadrature, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
virtual std::unique_ptr< typename FiniteElement< dim, spacedim >::InternalDataBase >  get_subface_data (const UpdateFlags update_flags, const Mapping< dim, spacedim > &mapping, const Quadrature< dim  1 > &quadrature, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
virtual void  fill_fe_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const CellSimilarity::Similarity cell_similarity, const Quadrature< dim > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const typename FiniteElement< dim, spacedim >::InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
virtual void  fill_fe_face_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const hp::QCollection< dim  1 > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const typename FiniteElement< dim, spacedim >::InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
virtual void  fill_fe_subface_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int sub_no, const Quadrature< dim  1 > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const typename FiniteElement< dim, spacedim >::InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const override
template<int dim_1>
void  compute_fill (const Mapping< dim, spacedim > &mapping, const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int sub_no, const hp::QCollection< dim_1 > &quadrature, const CellSimilarity::Similarity cell_similarity, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const typename FiniteElement< dim, spacedim >::InternalDataBase &fe_data, const internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const
void  reinit_restriction_and_prolongation_matrices (const bool isotropic_restriction_only=false, const bool isotropic_prolongation_only=false)
TableIndices< 2 >  interface_constraints_size () const
virtual std::unique_ptr< InternalDataBase >  get_face_data (const UpdateFlags update_flags, const Mapping< dim, spacedim > &mapping, const Quadrature< dim  1 > &quadrature, internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const
virtual void  fill_fe_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const CellSimilarity::Similarity cell_similarity, const Quadrature< dim > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const =0
virtual void  fill_fe_face_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const hp::QCollection< dim  1 > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const
virtual void  fill_fe_face_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const Quadrature< dim  1 > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const InternalDataBase &fe_internal, internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const
virtual void  fill_fe_subface_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int sub_no, const Quadrature< dim  1 > &quadrature, const Mapping< dim, spacedim > &mapping, const typename Mapping< dim, spacedim >::InternalDataBase &mapping_internal, const ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &mapping_data, const InternalDataBase &fe_internal, ::internal::FEValuesImplementation::FiniteElementRelatedData< dim, spacedim > &output_data) const =0
Static Protected Member Functions
static std::vector< unsigned int >  compute_n_nonzero_components (const std::vector< ComponentMask > &nonzero_components)
Protected Attributes
std::vector< std::vector< FullMatrix< double > > >  restriction
std::vector< std::vector< FullMatrix< double > > >  prolongation
FullMatrix< double >  interface_constraints
std::vector< Point< dim > >  unit_support_points
std::vector< std::vector< Point< dim  1 > > >  unit_face_support_points
std::vector< Point< dim > >  generalized_support_points
std::vector< std::vector< Point< dim  1 > > >  generalized_face_support_points
std::vector< Table< 2, int > >  adjust_quad_dof_index_for_face_orientation_table
std::vector< int >  adjust_line_dof_index_for_line_orientation_table
std::vector< std::pair< unsigned int, unsigned int > >  system_to_component_table
std::vector< std::vector< std::pair< unsigned int, unsigned int > > >  face_system_to_component_table
std::vector< std::pair< std::pair< unsigned int, unsigned int >, unsigned int > >  system_to_base_table
std::vector< std::vector< std::pair< std::pair< unsigned int, unsigned int >, unsigned int > > >  face_system_to_base_table
BlockIndices  base_to_block_indices
std::vector< std::pair< std::pair< unsigned int, unsigned int >, unsigned int > >  component_to_base_table
const std::vector< bool >  restriction_is_additive_flags
const std::vector< ComponentMask >  nonzero_components
const std::vector< unsigned int >  n_nonzero_components_table
const bool  cached_primitivity
Private Member Functions
void  initialize (const std::vector< const FiniteElement< dim, spacedim > *> &fes, const std::vector< unsigned int > &multiplicities)
void  build_interface_constraints ()
template<int structdim>
std::vector< std::pair< unsigned int, unsigned int > >  hp_object_dof_identities (const FiniteElement< dim, spacedim > &fe_other, const unsigned int face_no=0) const
Private Attributes
std::vector< std::pair< std::unique_ptr< const FiniteElement< dim, spacedim > >, unsigned int > >  base_elements
std::vector< std::vector< std::size_t > >  generalized_support_points_index_table
std::mutex  mutex
Static Private Attributes
static const unsigned int  invalid_face_number = numbers::invalid_unsigned_int
Friends
class  FE_Enriched< dim, spacedim >
This class provides an interface to group several elements together into one, vectorvalued element. As example, consider the TaylorHood element that is used for the solution of the Stokes and NavierStokes equations: There, the velocity (of which there are as many components as the dimension \(d\) of the domain) is discretized with \(Q_2\) elements and the pressure with \(Q_1\) elements. Mathematically, the finite element space for the coupled problem is then often written as \(V_h = Q_2^d \times Q_1\) where the exponentiation is understood to be the tensor product of spaces – i.e., in 2d, we have \(V_h=Q_2\times Q_2\times Q_1\) – and tensor products lead to vectors where each component of the vectorvalued function space corresponds to a scalar function in one of the \(Q_2\) or \(Q_1\) spaces. Using the FESystem class, this space is created using
The creation of this element here corresponds to taking tensorproduct powers of the \(Q_2\) element in the first line of the list of arguments to the FESystem constructor, and then concatenation via another tensor product with the element in the second line. This kind of construction is used, for example, in the step22 tutorial program.
Similarly, step8 solves an elasticity equation where we need to solve for the displacement of a solid object. The displacement again has \(d\) components if the domain is \(d\)dimensional, and so the combined finite element is created using
where now each (vector) component of the combined element corresponds to a \(Q_1\) space.
To the outside world, FESystem objects look just like a usual finite element object, they just happen to be composed of several other finite elements that are possibly of different type. These "base elements" can themselves have multiple components and, in particular, could also be vectorvalued – for example, if one of the base elements is an FESystem itself (see also below). An example is given in the documentation of namespace FETools::Compositing, when using the "tensor product" strategy.
Vector valued elements are discussed in a number of tutorial programs, for example step8, step20, step21, step22, and in particular in the Handling vector valued problems module.
An FESystem, except in the most trivial case, produces a vectorvalued finite element with several components. The number of components n_components() corresponds to the dimension of the solution function in the PDE system, and correspondingly also to the number of equations your PDE system has. For example, the mixed Laplace system covered in step20 has \(d+1\) components in \(d\) space dimensions: the scalar pressure and the \(d\) components of the velocity vector. Similarly, the elasticity equation covered in step8 has \(d\) components in \(d\) space dimensions. In general, the number of components of a FESystem element is the accumulated number of components of all base elements times their multiplicities. A bit more on components is also given in the glossary entry on components.
While the concept of components is important from the viewpoint of a partial differential equation, the finite element side looks a bit different Since not only FESystem, but also vectorvalued elements like FE_RaviartThomas, have several components. The concept needed here is a block. Each block encompasses the set of degrees of freedom associated with a single base element of an FESystem, where base elements with multiplicities count multiple times. These blocks are usually addressed using the information in DoFHandler::block_info(). The number of blocks of a FESystem object is simply the sum of all multiplicities of base elements and is given by n_blocks().
For example, the FESystem for the TaylorHood element for the threedimensional Stokes problem can be built using the code
or more concisely via
or even shorter (mimicking the mathematical notation that we are dealing with a \(Q_2^3 \times Q_1\) element):
This example creates an FESystem sys1
with four components, three for the velocity components and one for the pressure, and also four blocks with the degrees of freedom of each of the velocity components and the pressure in a separate block each. The number of blocks is four since the first base element is repeated three times.
On the other hand, a TaylorHood element can also be constructed using
The FESystem sys2
created here has the same four components, but the degrees of freedom are distributed into only two blocks. The first block has all velocity degrees of freedom from U
, while the second block contains the pressure degrees of freedom. Note that while U
itself has 3 blocks, the FESystem sys2
does not attempt to split U
into its base elements but considers it a block of its own. By blocking all velocities into one system first as in sys2
, we achieve the same block structure that would be generated if instead of using a \(Q_2^3\) element for the velocities we had used vectorvalued base elements, for instance like using a mixed discretization of Darcy's law using
This example also produces a system with four components, but only two blocks.
In most cases, the composed element behaves as if it were a usual element. It just has more degrees of freedom than most of the "common" elements. However the underlying structure is visible in the restriction, prolongation and interface constraint matrices, which do not couple the degrees of freedom of the base elements. E.g. the continuity requirement is imposed for the shape functions of the subobjects separately; no requirement exist between shape functions of different subobjects, i.e. in the above example: on a hanging node, the respective value of the u
velocity is only coupled to u
at the vertices and the line on the larger cell next to this vertex, but there is no interaction with v
and w
of this or the other cell.
The overall numbering of degrees of freedom is as follows: for each subobject (vertex, line, quad, or hex), the degrees of freedom are numbered such that we run over all subelements first, before turning for the next dof on this subobject or for the next subobject. For example, for an element of three components in one space dimension, the first two components being cubic lagrange elements and the third being a quadratic lagrange element, the ordering for the system s=(u,v,p)
is:
u0, v0, p0 = s0, s1, s2
u1, v1, p1 = s3, s4, s5
u2, u3 = s4, s5
v2, v3 = s6, s7
. p2 = s8
. That said, you should not rely on this numbering in your application as these internals might change in future. Rather use the functions system_to_component_index() and component_to_system_index().
For more information on the template parameter spacedim
see the documentation of Triangulation.

inherited
Enumerator for the different types of continuity a finite element may have. Continuity is measured by the Sobolev space containing the constructed finite element space and is also called this way.
Note that certain continuities may imply others. For instance, a function in H^{1} is in H^{curl} and H^{div} as well.
If you are interested in continuity in the classical sense, then the following relations hold:
H^{1} implies that the function is continuous over cell boundaries.
H^{2} implies that the function is continuously differentiable over cell boundaries.
In order to test if a finite element conforms to a certain space, use FiniteElementData<dim>::conforms().
Delete default constructor so that FESystem(FEPairs &&... fe_pairs)
is not accidentally picked if no FiniteElement is provided.
FESystem< dim, spacedim >::FESystem  (  const FiniteElement< dim, spacedim > &  fe,
const unsigned int  n_elements
)
Constructor. Take a finite element and the number of elements you want to group together using this class.
The object fe
is not actually used for anything other than creating a copy that will then be owned by the current object. In other words, it is completely fine to call this constructor with a temporary object for the finite element, as in this code snippet:
Here, FE_Q<dim>(2)
constructs an unnamed, temporary object that is passed to the FESystem constructor to create a finite element that consists of two components, both of which are quadratic FE_Q elements. The temporary is destroyed again at the end of the code that corresponds to this line, but this does not matter because FESystem creates its own copy of the FE_Q object.
This constructor (or its variants below) is used in essentially all tutorial programs that deal with vector valued problems. See step8, step20, step22 and others for use cases. Also see the module on Handling vector valued problems.
[in]  fe  The finite element that will be used to represent the components of this composed element.
[in]  n_elements  An integer denoting how many copies of fe this element should consist of.
Definition at line 108 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  const FiniteElement< dim, spacedim > &  fe1,
const unsigned int  n1,
const FiniteElement< dim, spacedim > &  fe2,
const unsigned int  n2
)
Constructor for mixed discretizations with two base elements.
See the other constructor above for an explanation of the general idea of composing elements.
Definition at line 127 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  const FiniteElement< dim, spacedim > &  fe1,
const unsigned int  n1,
const FiniteElement< dim, spacedim > &  fe2,
const unsigned int  n2,
const FiniteElement< dim, spacedim > &  fe3,
const unsigned int  n3
)
Constructor for mixed discretizations with three base elements.
See the other constructor above for an explanation of the general idea of composing elements.
Definition at line 152 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  const FiniteElement< dim, spacedim > &  fe1,
const unsigned int  n1,
const FiniteElement< dim, spacedim > &  fe2,
const unsigned int  n2,
const FiniteElement< dim, spacedim > &  fe3,
const unsigned int  n3,
const FiniteElement< dim, spacedim > &  fe4,
const unsigned int  n4
)
Constructor for mixed discretizations with four base elements.
See the first of the other constructors above for an explanation of the general idea of composing elements.
Definition at line 188 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  const FiniteElement< dim, spacedim > &  fe1,
const unsigned int  n1,
const FiniteElement< dim, spacedim > &  fe2,
const unsigned int  n2,
const FiniteElement< dim, spacedim > &  fe3,
const unsigned int  n3,
const FiniteElement< dim, spacedim > &  fe4,
const unsigned int  n4,
const FiniteElement< dim, spacedim > &  fe5,
const unsigned int  n5
)
Constructor for mixed discretizations with five base elements.
See the first of the other constructors above for an explanation of the general idea of composing elements.
Definition at line 239 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  const std::vector< const FiniteElement< dim, spacedim > *> &  fes,
const std::vector< unsigned int > &  multiplicities
)
Same as above but for any number of base elements. Pointers to the base elements and their multiplicities are passed as vectors to this constructor. The lengths of these vectors are assumed to be equal.
As above, the finite element objects pointed to by the first argument are not actually used other than to create copies internally. Consequently, you can delete these pointers immediately again after calling this constructor.
Using this constructor is a bit awkward at times because you need to pass two vectors in a place where it may not be straightforward to construct such a vector – for example, in the member initializer list of a class with an FESystem member variable. For example, if your main class looks like this:
Using the C++11 language standard (or later) you could do something like this to create an element with four base elements and multiplicities 1, 2, 3 and 4:
This creates two vectors in place and initializes them using the initializer list enclosed in braces { ... }
.
This code has a problem: it creates four memory leaks because the first vector above is created with pointers to elements that are allocated with new
but never destroyed.
The solution to the second of these problems is to create two static member functions that can create vectors. Here is an example:
The way this works is that we have two static member functions that create the necessary vectors to pass to the constructor of the member variable fe
. They need to be static because they are called during the constructor of MySimulator
at a time when the *this
object isn't fully constructed and, consequently, regular member functions cannot be called yet.
The code above does not solve the problem with the memory leak yet, though: the create_fe_list()
function creates a vector of pointers, but nothing destroys these. This is the solution:
In other words, the vector we receive from the create_fe_list()
is packed into a temporary object of type VectorElementDestroyer
; we then get the vector from this temporary object immediately to pass it to the constructor of fe
; and finally, the VectorElementDestroyer
destructor is called at the end of the entire expression (after the constructor of fe
has finished) and destroys the elements of the temporary vector. Voila: not short nor elegant, but it works!
Definition at line 292 of file fe_system.cc.
FESystem< dim, spacedim >::FESystem  (  FEPairs &&...  fe_pairs  )
Constructor taking an arbitrary number of parameters of type std::pair<std::unique_ptr<FiniteElement<dim, spacedim>>, unsigned int>
. In combination with FiniteElement::operator^, this allows to construct FESystem objects as follows:
The fe_1
and fe_2
objects are not actually used for anything other than creating a copy that will then be owned by the current object. In other words, it is completely fine to call this constructor with a temporary object for the finite element, as in this code snippet:
Here, FE_Q<dim>(2)
constructs an unnamed, temporary object that is passed to the FESystem constructor to create a finite element that consists of two components, both of which are quadratic FE_Q elements. The temporary is destroyed again at the end of the code that corresponds to this line, but this does not matter because FESystem creates its own copy of the FE_Q object.
As a shortcut, this constructor also allows calling
instead of the more explicit
In other words, if no multiplicity for an element is explicitly specified via the exponentiation operation, then it is assumed to be one (as one would have expected).
FESystem< dim, spacedim >::FESystem  (  const std::initializer_list< std::pair< std::unique_ptr< FiniteElement< dim, spacedim >>, unsigned int >> &  fe_systems  )
Same as above allowing the following syntax:

delete
Copy constructor. This constructor is deleted, i.e., copying FESystem objects is not allowed.

inlinenoexcept
Move constructor.
Definition at line 581 of file fe_system.h.

overridevirtualdefault
Destructor.

overridevirtual
Return a string that uniquely identifies a finite element. This element returns a string that is composed of the strings name1
...nameN
returned by the basis elements. From these, we create a sequence FESystem<dim>[name1^m1name2^m2...nameN^mN]
, where mi
are the multiplicities of the basis elements. If a multiplicity is equal to one, then the superscript is omitted.
Implements FiniteElement< dim, spacedim >.
Definition at line 310 of file fe_system.cc.

overridevirtual
A sort of virtual copy constructor, this function returns a copy of the finite element object. Derived classes need to override the function here in this base class and return an object of the same type as the derived class.
Some places in the library, for example the constructors of FESystem as well as the hp::FECollection class, need to make copies of finite elements without knowing their exact type. They do so through this function.
Implements FiniteElement< dim, spacedim >.
Definition at line 339 of file fe_system.cc.

overridevirtual
Given a set of update flags, compute which other quantities also need to be computed in order to satisfy the request by the given flags. Then return the combination of the original set of flags and those just computed.
As an example, if update_flags
contains update_gradients a finite element class will typically require the computation of the inverse of the Jacobian matrix in order to rotate the gradient of shape functions on the reference cell to the real cell. It would then return not just update_gradients, but also update_covariant_transformation, the flag that makes the mapping class produce the inverse of the Jacobian matrix.
An extensive discussion of the interaction between this function and FEValues can be found in the How Mapping, FiniteElement, and FEValues work together documentation module.
Implements FiniteElement< dim, spacedim >.
Definition at line 896 of file fe_system.cc.

overridevirtual
Return a reference to a contained finite element that matches the components selected by the given ComponentMask mask
.
For an arbitrarily nested FESystem, this function returns the innermost FiniteElement that matches the given mask. The method fails if the mask
does not exactly match one of the contained finite elements. It is most useful if the current object is an FESystem, as the return value can only be this
in all other cases.
Note that the returned object can be an FESystem if the mask matches it but not any of the contained objects.
Let us illustrate the function with the an FESystem fe
with 7 components:
The following table lists all possible component masks you can use:
ComponentMask  Result  Description

[true,true,true,true,true,true,true]  FESystem<2>[FESystem<2>[FE_Q<2>(2)^2]FE_Q<2>(1)FE_DGP<2>(0)^2FE_BDM<2>(1)]  fe itself, the whole FESystem
[true,true,false,false,false,false,false]  FESystem<2>[FE_Q<2>(2)^2]  just the fe_velocity
[true,false,false,false,false,false,false]  FE_Q<2>(2)  The first component in fe_velocity
[false,true,false,false,false,false,false]  FE_Q<2>(2)  The second component in fe_velocity
[false,false,true,false,false,false,false]  FE_Q<2>(1)  fe_pressure
[false,false,false,true,false,false,false]  FE_DGP<2>(0)  first copy of fe_dg
[false,false,false,false,true,false,false]  FE_DGP<2>(0)  second copy of fe_dg
[false,false,false,false,false,true,true]  FE_BDM<2>(1)  both components of fe_nonprim
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 356 of file fe_system.cc.

overridevirtual
Return the value of the ith
shape function at the point p
. p
is a point on the reference element. Since this finite element is always vectorvalued, we return the value of the only nonzero component of the vector value of this shape function. If the shape function has more than one nonzero component (which we refer to with the term nonprimitive), then throw an exception of type ExcShapeFunctionNotPrimitive
.
An ExcUnitShapeValuesDoNotExist
is thrown if the shape values of the FiniteElement
(corresponding to the ith
shape function) depend on the shape of the cell in real space.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 385 of file fe_system.cc.

overridevirtual
Return the value of the componentth
vector component of the ith
shape function at the point p
. See the FiniteElement base class for more information about the semantics of this function.
Since this element is vector valued in general, it relays the computation of these values to the base elements.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 401 of file fe_system.cc.

overridevirtual
Return the gradient of the ith
shape function at the point p
. p
is a point on the reference element, and likewise the gradient is the gradient on the unit cell with respect to unit cell coordinates. Since this finite element is always vectorvalued, we return the value of the only nonzero component of the vector value of this shape function. If the shape function has more than one nonzero component (which we refer to with the term nonprimitive), then throw an exception of type ExcShapeFunctionNotPrimitive
.
An ExcUnitShapeValuesDoNotExist
is thrown if the shape values of the FiniteElement
(corresponding to the ith
shape function) depend on the shape of the cell in real space.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 437 of file fe_system.cc.

overridevirtual
Return the gradient of the componentth
vector component of the ith
shape function at the point p
. See the FiniteElement base class for more information about the semantics of this function.
Since this element is vector valued in general, it relays the computation of these values to the base elements.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 453 of file fe_system.cc.

overridevirtual
Return the tensor of second derivatives of the ith
shape function at point p
on the unit cell. The derivatives are derivatives on the unit cell with respect to unit cell coordinates. Since this finite element is always vectorvalued, we return the value of the only nonzero component of the vector value of this shape function. If the shape function has more than one nonzero component (which we refer to with the term non primitive), then throw an exception of type ExcShapeFunctionNotPrimitive
.
An ExcUnitShapeValuesDoNotExist
is thrown if the shape values of the FiniteElement
(corresponding to the ith
shape function) depend on the shape of the cell in real space.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 482 of file fe_system.cc.

overridevirtual
Return the second derivatives of the componentth
vector component of the ith
shape function at the point p
. See the FiniteElement base class for more information about the semantics of this function.
Since this element is vector valued in general, it relays the computation of these values to the base elements.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 498 of file fe_system.cc.

overridevirtual
Return the tensor of third derivatives of the ith
shape function at point p
on the unit cell. The derivatives are derivatives on the unit cell with respect to unit cell coordinates. Since this finite element is always vectorvalued, we return the value of the only nonzero component of the vector value of this shape function. If the shape function has more than one nonzero component (which we refer to with the term non primitive), then throw an exception of type ExcShapeFunctionNotPrimitive
.
An ExcUnitShapeValuesDoNotExist
is thrown if the shape values of the FiniteElement
(corresponding to the ith
shape function) depend on the shape of the cell in real space.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 527 of file fe_system.cc.

overridevirtual
Return the third derivatives of the componentth
vector component of the ith
shape function at the point p
. See the FiniteElement base class for more information about the semantics of this function.
Since this element is vector valued in general, it relays the computation of these values to the base elements.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 543 of file fe_system.cc.

overridevirtual
Return the tensor of fourth derivatives of the ith
shape function at point p
on the unit cell. The derivatives are derivatives on the unit cell with respect to unit cell coordinates. Since this finite element is always vectorvalued, we return the value of the only nonzero component of the vector value of this shape function. If the shape function has more than one nonzero component (which we refer to with the term non primitive), then throw an exception of type ExcShapeFunctionNotPrimitive
.
An ExcUnitShapeValuesDoNotExist
is thrown if the shape values of the FiniteElement
(corresponding to the ith
shape function) depend on the shape of the cell in real space.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 572 of file fe_system.cc.

overridevirtual
Return the fourth derivatives of the componentth
vector component of the ith
shape function at the point p
. See the FiniteElement base class for more information about the semantics of this function.
Since this element is vector valued in general, it relays the computation of these values to the base elements.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 588 of file fe_system.cc.

overridevirtual
Return the matrix interpolating from the given finite element to the present one. The size of the matrix is then dofs_per_cell
times source.n_dofs_per_cell()
.
These matrices are available if source and destination element are both FESystem
elements, have the same number of base elements with same element multiplicity, and if these base elements also implement their get_interpolation_matrix
functions. Otherwise, an exception of type FiniteElement<dim,spacedim>::ExcInterpolationNotImplemented is thrown.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 617 of file fe_system.cc.

overridevirtual
Access to a composing element. The index needs to be smaller than the number of base elements. Note that the number of base elements may in turn be smaller than the number of components of the system element, if the multiplicities are greater than one.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2366 of file fe_system.cc.

overridevirtual
This function returns true
, if the shape function shape_index
has nonzero function values somewhere on the face face_index
.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2376 of file fe_system.cc.

overridevirtual
Projection from a fine grid space onto a coarse grid space. Overrides the respective method in FiniteElement, implementing lazy evaluation (initialize when requested).
If this projection operator is associated with a matrix P
, then the restriction of this matrix P_i
to a single child cell is returned here.
The matrix P
is the concatenation or the sum of the cell matrices P_i
, depending on the value of FiniteElement::restriction_is_additive(). This distinguishes interpolation (concatenation) and projection with respect to scalar products (summation).
Row and column indices are related to coarse grid and fine grid spaces, respectively, consistent with the definition of the associated operator.
If projection matrices are not implemented in the derived finite element class, this function aborts with an exception of type FiniteElement::ExcProjectionVoid. You can check whether this would happen by first calling the restriction_is_implemented() or the isotropic_restriction_is_implemented() function.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 694 of file fe_system.cc.

overridevirtual
Embedding matrix between grids. Overrides the respective method in FiniteElement, implementing lazy evaluation (initialize when queried).
The identity operator from a coarse grid space into a fine grid space is associated with a matrix P
. The restriction of this matrix P_i
to a single child cell is returned here.
The matrix P
is the concatenation, not the sum of the cell matrices P_i
. That is, if the same nonzero entry j,k
exists in two different child matrices P_i
, the value should be the same in both matrices and it is copied into the matrix P
only once.
Row and column indices are related to fine grid and coarse grid spaces, respectively, consistent with the definition of the associated operator.
These matrices are used by routines assembling the prolongation matrix for multilevel methods. Upon assembling the transfer matrix between cells using this matrix array, zero elements in the prolongation matrix are discarded and will not fill up the transfer matrix.
If prolongation matrices are not implemented in one of the base finite element classes, this function aborts with an exception of type FiniteElement::ExcEmbeddingVoid. You can check whether this would happen by first calling the prolongation_is_implemented() or the isotropic_prolongation_is_implemented() function.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 785 of file fe_system.cc.

overridevirtual
Given an index in the natural ordering of indices on a face, return the index of the same degree of freedom on the cell.
To explain the concept, consider the case where we would like to know whether a degree of freedom on a face, for example as part of an FESystem element, is primitive. Unfortunately, the is_primitive() function in the FiniteElement class takes a cell index, so we would need to find the cell index of the shape function that corresponds to the present face index. This function does that.
Code implementing this would then look like this:
The function takes additional arguments that account for the fact that actual faces can be in their standard ordering with respect to the cell under consideration, or can be flipped, oriented, etc.
face_dof_index  The index of the degree of freedom on a face. This index must be between zero and dofs_per_face.
face  The number of the face this degree of freedom lives on. This number must be between zero and GeometryInfo::faces_per_cell.
face_orientation  One part of the description of the orientation of the face. See GlossFaceOrientation.
face_flip  One part of the description of the orientation of the face. See GlossFaceOrientation.
face_rotation  One part of the description of the orientation of the face. See GlossFaceOrientation.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 851 of file fe_system.cc.

overridevirtual
Implementation of the respective function in the base class.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2389 of file fe_system.cc.

overridevirtual
Implementation of the respective function in the base class.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2410 of file fe_system.cc.

overridevirtual
Return a list of constant modes of the element. The returns table has as many rows as there are components in the element and dofs_per_cell columns. To each component of the finite element, the row in the returned table contains a basis representation of the constant function 1 on the element. Concatenates the constant modes of each base element.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2441 of file fe_system.cc.

overridevirtual
Return whether this element implements its hanging node constraints in the new way, which has to be used to make elements "hpcompatible".
This function returns true
if and only if all its base elements return true
for this function.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 1921 of file fe_system.cc.

overridevirtual
Return the matrix interpolating from a face of one element to the face of the neighboring element. The size of the matrix is then source.dofs_per_face
times this>dofs_per_face
.
Base elements of this element will have to implement this function. They may only provide interpolation matrices for certain source finite elements, for example those from the same family. If they don't implement interpolation from a given element, then they must throw an exception of type FiniteElement<dim,spacedim>::ExcInterpolationNotImplemented, which will get propagated out from this element.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 1934 of file fe_system.cc.

overridevirtual
Return the matrix interpolating from a face of one element to the subface of the neighboring element. The size of the matrix is then source.dofs_per_face
times this>dofs_per_face
.
Base elements of this element will have to implement this function. They may only provide interpolation matrices for certain source finite elements, for example those from the same family. If they don't implement interpolation from a given element, then they must throw an exception of type FiniteElement<dim,spacedim>::ExcInterpolationNotImplemented, which will get propagated out from this element.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2050 of file fe_system.cc.

overridevirtual
If, on a vertex, several finite elements are active, the hpcode first assigns the degrees of freedom of each of these FEs different global indices. It then calls this function to find out which of them should get identical values, and consequently can receive the same global DoF index. This function therefore returns a list of identities between DoFs of the present finite element object with the DoFs of fe_other
, which is a reference to a finite element object representing one of the other finite elements active on this particular vertex. The function computes which of the degrees of freedom of the two finite element objects are equivalent, both numbered between zero and the corresponding value of n_dofs_per_vertex() of the two finite elements. The first index of each pair denotes one of the vertex dofs of the present element, whereas the second is the corresponding index of the other finite element.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2287 of file fe_system.cc.

overridevirtual
Same as hp_vertex_dof_indices(), except that the function treats degrees of freedom on lines.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2295 of file fe_system.cc.

overridevirtual
Same as hp_vertex_dof_indices(), except that the function treats degrees of freedom on quads.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2305 of file fe_system.cc.

finaloverridevirtual
Return whether this element dominates another one given as argument fe_other
, whether it is the other way around, whether neither dominates, or if either could dominate. The codim
parameter describes the codimension of the investigated subspace and specifies that it is subject to this comparison. For example, if codim==0
then this function compares which element dominates at the cell level. If codim==1
, then the elements are compared at faces, i.e., the comparison happens between the function spaces of the two finite elements as restricted to a face. Larger values of codim
work correspondingly.
For a definition of domination, see FiniteElementDomination::Domination and in particular the hppaper.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2316 of file fe_system.cc.

overridevirtual
Implementation of the FiniteElement::convert_generalized_support_point_values_to_dof_values() function.
This function simply calls FiniteElement::convert_generalized_support_point_values_to_dof_values of the base elements and reassembles everything into the output argument. If a base element is noninterpolatory the corresponding dof values are filled with "signaling" NaNs instead.
The function fails if none of the base elements of the FESystem are interpolatory.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2497 of file fe_system.cc.

overridevirtual
Determine an estimate for the memory consumption (in bytes) of this object.
This function is made virtual, since finite element objects are usually accessed through pointers to their base class, rather than the class itself.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 2604 of file fe_system.cc.

overrideprotectedvirtual
Create an internal data object and return a pointer to it of which the caller of this function then assumes ownership. This object will then be passed to the FiniteElement::fill_fe_values() every time the finite element shape functions and their derivatives are evaluated on a concrete cell. The object created here is therefore used by derived classes as a place for scratch objects that are used in evaluating shape functions, as well as to store information that can be precomputed once and reused on every cell (e.g., for evaluating the values and gradients of shape functions on the reference cell, for later reuse when transforming these values to a concrete cell).
This function is the first one called in the process of initializing a FEValues object for a given mapping and finite element object. The returned object will later be passed to FiniteElement::fill_fe_values() for a concrete cell, which will itself place its output into an object of type internal::FEValuesImplementation::FiniteElementRelatedData. Since there may be data that can already be computed in its final form on the reference cell, this function also receives a reference to the internal::FEValuesImplementation::FiniteElementRelatedData object as its last argument. This output argument is guaranteed to always be the same one when used with the InternalDataBase object returned by this function. In other words, the subdivision of scratch data and final data in the returned object and the output_data
object is as follows: If data can be pre computed on the reference cell in the exact form in which it will later be needed on a concrete cell, then this function should already emplace it in the output_data
object. An example are the values of shape functions at quadrature points for the usual Lagrange elements which on a concrete cell are identical to the ones on the reference cell. On the other hand, if some data can be precomputed to make computations on a concrete cell cheaper, then it should be put into the returned object for later reuse in a derive class's implementation of FiniteElement::fill_fe_values(). An example are the gradients of shape functions on the reference cell for Lagrange elements: to compute the gradients of the shape functions on a concrete cell, one has to multiply the gradients on the reference cell by the inverse of the Jacobian of the mapping; consequently, we cannot already compute the gradients on a concrete cell at the time the current function is called, but we can at least precompute the gradients on the reference cell, and store it in the object returned.
An extensive discussion of the interaction between this function and FEValues can be found in the How Mapping, FiniteElement, and FEValues work together documentation module. See also the documentation of the InternalDataBase class.
[in]  update_flags  A set of UpdateFlags values that describe what kind of information the FEValues object requests the finite element to compute. This set of flags may also include information that the finite element can not compute, e.g., flags that pertain to data produced by the mapping. An implementation of this function needs to set up all data fields in the returned object that are necessary to produce the finite element related data specified by these flags, and may already pre compute part of this information as discussed above. Elements may want to store these update flags (or a subset of these flags) in InternalDataBase::update_each so they know at the time when FiniteElement::fill_fe_values() is called what they are supposed to compute
[in]  mapping  A reference to the mapping used for computing values and derivatives of shape functions.
[in]  quadrature  A reference to the object that describes where the shape functions should be evaluated.
[out]  output_data  A reference to the object that FEValues will use in conjunction with the object returned here and where an implementation of FiniteElement::fill_fe_values() will place the requested information. This allows the current function to already precompute pieces of information that can be computed on the reference cell, as discussed above. FEValues guarantees that this output object and the object returned by the current function will always be used together.
Implements FiniteElement< dim, spacedim >.
Definition at line 910 of file fe_system.cc.

overrideprotectedvirtual
Like get_data(), but return an object that will later be used for evaluating shape function information at quadrature points on faces of cells. The object will then be used in calls to implementations of FiniteElement::fill_fe_face_values(). See the documentation of get_data() for more information.
The default implementation of this function converts the face quadrature into a cell quadrature with appropriate quadrature point locations, and with that calls the get_data() function above that has to be implemented in derived classes.
[in]  update_flags  A set of UpdateFlags values that describe what kind of information the FEValues object requests the finite element to compute. This set of flags may also include information that the finite element can not compute, e.g., flags that pertain to data produced by the mapping. An implementation of this function needs to set up all data fields in the returned object that are necessary to produce the finite element related data specified by these flags, and may already pre compute part of this information as discussed above. Elements may want to store these update flags (or a subset of these flags) in InternalDataBase::update_each so they know at the time when FiniteElement::fill_fe_face_values() is called what they are supposed to compute
[in]  mapping  A reference to the mapping used for computing values and derivatives of shape functions.
[in]  quadrature  A reference to the object that describes where the shape functions should be evaluated.
[out]  output_data  A reference to the object that FEValues will use in conjunction with the object returned here and where an implementation of FiniteElement::fill_fe_face_values() will place the requested information. This allows the current function to already precompute pieces of information that can be computed on the reference cell, as discussed above. FEValues guarantees that this output object and the object returned by the current function will always be used together.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 973 of file fe_system.cc.

overrideprotectedvirtual
Like get_data(), but return an object that will later be used for evaluating shape function information at quadrature points on children of faces of cells. The object will then be used in calls to implementations of FiniteElement::fill_fe_subface_values(). See the documentation of get_data() for more information.
The default implementation of this function converts the face quadrature into a cell quadrature with appropriate quadrature point locations, and with that calls the get_data() function above that has to be implemented in derived classes.
[in]  update_flags  A set of UpdateFlags values that describe what kind of information the FEValues object requests the finite element to compute. This set of flags may also include information that the finite element can not compute, e.g., flags that pertain to data produced by the mapping. An implementation of this function needs to set up all data fields in the returned object that are necessary to produce the finite element related data specified by these flags, and may already pre compute part of this information as discussed above. Elements may want to store these update flags (or a subset of these flags) in InternalDataBase::update_each so they know at the time when FiniteElement::fill_fe_subface_values() is called what they are supposed to compute
[in]  mapping  A reference to the mapping used for computing values and derivatives of shape functions.
[in]  quadrature  A reference to the object that describes where the shape functions should be evaluated.
[out]  output_data  A reference to the object that FEValues will use in conjunction with the object returned here and where an implementation of FiniteElement::fill_fe_subface_values() will place the requested information. This allows the current function to already precompute pieces of information that can be computed on the reference cell, as discussed above. FEValues guarantees that this output object and the object returned by the current function will always be used together.
Reimplemented from FiniteElement< dim, spacedim >.
Definition at line 1036 of file fe_system.cc.

overrideprotectedvirtual
Definition at line 1097 of file fe_system.cc.

overrideprotectedvirtual
Definition at line 1127 of file fe_system.cc.

overrideprotectedvirtual
Definition at line 1157 of file fe_system.cc.

protected
Do the work for the three fill_fe*_values
functions.
Calls (among other things) fill_fe_([sub]face)_values
of the base elements. Calls fill_fe_values
if face_no==invalid_face_no
and sub_no==invalid_face_no
; calls fill_fe_face_values
if face_no==invalid_face_no
and sub_no!=invalid_face_no
; and calls fill_fe_subface_values
if face_no!=invalid_face_no
and sub_no!=invalid_face_no
.
Definition at line 1189 of file fe_system.cc.

private
This function is simply singled out of the constructors since there are several of them. It sets up the index table for the system as well as restriction
and prolongation
matrices.
Definition at line 1632 of file fe_system.cc.

private
Used by initialize
.
Definition at line 1408 of file fe_system.cc.

private
A function that computes the hp_vertex_dof_identities(), hp_line_dof_identities(), or hp_quad_dof_identities(), depending on the value of the template parameter.
Definition at line 2174 of file fe_system.cc.

inherited

inlineinherited
This operator returns a reference to the present object if the argument given equals to zero. While this does not seem particularly useful, it is helpful in writing code that works with both DoFHandler and the hp version hp::DoFHandler, since one can then write code like this:
This code doesn't work in both situations without the present operator because DoFHandler::get_fe() returns a finite element, whereas hp::DoFHandler::get_fe() returns a collection of finite elements that doesn't offer a dofs_per_cell
member variable: one first has to select which finite element to work on, which is done using the operator[]. Fortunately, cell>active_fe_index()
also works for nonhpclasses and simply returns zero in that case. The present operator[] accepts this zero argument, by returning the finite element with index zero within its collection (that, of course, consists only of the present finite element anyway).

inherited
Return whether this element implements its prolongation matrices. The return value also indicates whether a call to the get_prolongation_matrix() function will generate an error or not.
Note, that this function returns true
only if the prolongation matrices of the isotropic and all anisotropic refinement cases are implemented. If you are interested in the prolongation matrices for isotropic refinement only, use the isotropic_prolongation_is_implemented function instead.
This function is mostly here in order to allow us to write more efficient test programs which we run on all kinds of weird elements, and for which we simply need to exclude certain tests in case something is not implemented. It will in general probably not be a great help in applications, since there is not much one can do if one needs these features and they are not implemented. This function could be used to check whether a call to get_prolongation_matrix()
will succeed; however, one then still needs to cope with the lack of information this just expresses.

inherited
Return whether this element implements its prolongation matrices for isotropic children. The return value also indicates whether a call to the get_prolongation_matrix
function will generate an error or not.
This function is mostly here in order to allow us to write more efficient test programs which we run on all kinds of weird elements, and for which we simply need to exclude certain tests in case something is not implemented. It will in general probably not be a great help in applications, since there is not much one can do if one needs these features and they are not implemented. This function could be used to check whether a call to get_prolongation_matrix()
will succeed; however, one then still needs to cope with the lack of information this just expresses.

inherited
Return whether this element implements its restriction matrices. The return value also indicates whether a call to the get_restriction_matrix() function will generate an error or not.
Note, that this function returns true
only if the restriction matrices of the isotropic and all anisotropic refinement cases are implemented. If you are interested in the restriction matrices for isotropic refinement only, use the isotropic_restriction_is_implemented() function instead.
This function is mostly here in order to allow us to write more efficient test programs which we run on all kinds of weird elements, and for which we simply need to exclude certain tests in case something is not implemented. It will in general probably not be a great help in applications, since there is not much one can do if one needs these features and they are not implemented. This function could be used to check whether a call to get_restriction_matrix()
will succeed; however, one then still needs to cope with the lack of information this just expresses.

inherited
Return whether this element implements its restriction matrices for isotropic children. The return value also indicates whether a call to the get_restriction_matrix() function will generate an error or not.
This function is mostly here in order to allow us to write more efficient test programs which we run on all kinds of weird elements, and for which we simply need to exclude certain tests in case something is not implemented. It will in general probably not be a great help in applications, since there is not much one can do if one needs these features and they are not implemented. This function could be used to check whether a call to get_restriction_matrix()
will succeed; however, one then still needs to cope with the lack of information this just expresses.

inlineinherited
Access the restriction_is_additive_flags field. See the discussion about restriction matrices in the general class documentation for more information.
The index must be between zero and the number of shape functions of this element.

inherited
Return a read only reference to the matrix that describes the constraints at the interface between a refined and an unrefined cell.
Some finite elements do not (yet) implement hanging node constraints. If this is the case, then this function will generate an exception, since no useful return value can be generated. If you should have a way to live with this, then you might want to use the constraints_are_implemented() function to check up front whether this function will succeed or generate the exception.

inherited
Return whether this element implements its hanging node constraints. The return value also indicates whether a call to the constraints() function will generate an error or not.
This function is mostly here in order to allow us to write more efficient test programs which we run on all kinds of weird elements, and for which we simply need to exclude certain tests in case hanging node constraints are not implemented. It will in general probably not be a great help in applications, since there is not much one can do if one needs hanging node constraints and they are not implemented. This function could be used to check whether a call to constraints()
will succeed; however, one then still needs to cope with the lack of information this just expresses.

virtualinherited
Comparison operator.
The implementation in the current class checks for equality of the following pieces of information between the current object and the one given as argument, in this order:
This covers most cases where elements can differ, but there are cases of derived elements that are different and for which the current function still returns true
. For these cases, derived classes should overload this function.

inherited
Comparison operator.
Definition at line 180 of file fe_data.cc.

inherited

inlineinherited
Compute vector component and index of this shape function within the shape functions corresponding to this component from the index of a shape function within this finite element.
If the element is scalar, then the component is always zero, and the index within this component is equal to the overall index.
If the shape function referenced has more than one nonzero component, then it cannot be associated with one vector component, and an exception of type ExcShapeFunctionNotPrimitive will be raised.
Note that if the element is composed of other (base) elements, and a base element has more than one component but all its shape functions are primitive (i.e. are nonzero in only one component), then this mapping contains valid information. However, the index of a shape function of this element within one component (i.e. the second number of the respective entry of this array) does not indicate the index of the respective shape function within the base element (since that has more than one vectorcomponent). For this information, refer to the system_to_base_table field and the system_to_base_index() function.
See the class description above for an example of how this function is typically used.
The use of this function is explained extensively in the step8 and step20 tutorial programs as well as in the Handling vector valued problems module.

inlineinherited
Compute the shape function for the given vector component and index.
If the element is scalar, then the component must be zero, and the index within this component is equal to the overall index.
This is the opposite operation from the system_to_component_index() function.

inlineinherited
Same as system_to_component_index(), but do it for shape functions and their indices on a face. The range of allowed indices is therefore 0..dofs_per_face.
You will rarely need this function in application programs, since almost all application codes only need to deal with cell indices, not face indices. The function is mainly there for use inside the library.

inherited
For faces with nonstandard face_orientation in 3D, the dofs on faces (quads) have to be permuted in order to be combined with the correct shape functions. Given a local dof index
on a quad, return the local index, if the face has nonstandard face_orientation, face_flip or face_rotation. In 2D and 1D there is no need for permutation and consequently an exception is thrown.

inherited
For lines with nonstandard line_orientation in 3D, the dofs on lines have to be permuted in order to be combined with the correct shape functions. Given a local dof index
on a line, return the local index, if the line has nonstandard line_orientation. In 2D and 1D there is no need for permutation, so the given index is simply returned.

inlineinherited
Return in which of the vector components of this finite element the ith
shape function is nonzero. The length of the returned array is equal to the number of vector components of this element.
For most finite element spaces, the result of this function will be a vector with exactly one element being true
, since for most spaces the individual vector components are independent. In that case, the component with the single zero is also the first element of what system_to_component_index() returns.
Only for those spaces that couple the components, for example to make a shape function divergence free, will there be more than one true
entry. Elements for which this is true are called nonprimitive (see GlossPrimitive).

inlineinherited
Return in how many vector components the ith
shape function is non zero. This value equals the number of entries equal to true
in the result of the get_nonzero_components() function.
For most finite element spaces, the result will be equal to one. It is not equal to one only for those ansatz spaces for which vectorvalued shape functions couple the individual components, for example in order to make them divergencefree.

inlineinherited
Return whether the entire finite element is primitive, in the sense that all its shape functions are primitive. If the finite element is scalar, then this is always the case.
Since this is an extremely common operation, the result is cached and returned by this function.

inlineinherited
Return whether the ith
shape function is primitive in the sense that the shape function is nonzero in only one vector component. Non primitive shape functions would then, for example, be those of divergence free ansatz spaces, in which the individual vector components are coupled.
The result of the function is true
if and only if the result of n_nonzero_components(i)
is equal to one.

inlineinherited
Number of base elements in a mixed discretization.
Note that even for vector valued finite elements, the number of components needs not coincide with the number of base elements, since they may be reused. For example, if you create a FESystem with three identical finite element classes by using the constructor that takes one finite element and a multiplicity, then the number of base elements is still one, although the number of components of the finite element is equal to the multiplicity.

inlineinherited
This index denotes how often the base element index
is used in a composed element. If the element is atomic, then the result is always equal to one. See the documentation for the n_base_elements() function for more details.

inherited
Return a reference to a contained finite element that matches the components selected by the given ComponentMask mask
.
For an arbitrarily nested FESystem, this function returns the innermost FiniteElement that matches the given mask. The method fails if the mask
does not exactly match one of the contained finite elements. It is most useful if the current object is an FESystem, as the return value can only be this
in all other cases.
Note that the returned object can be an FESystem if the mask matches it but not any of the contained objects.
Let us illustrate the function with the an FESystem fe
with 7 components:
The following table lists all possible component masks you can use:
ComponentMask  Result  Description

[true,true,true,true,true,true,true]  FESystem<2>[FESystem<2>[FE_Q<2>(2)^2]FE_Q<2>(1)FE_DGP<2>(0)^2FE_BDM<2>(1)]  fe itself, the whole FESystem
[true,true,false,false,false,false,false]  FESystem<2>[FE_Q<2>(2)^2]  just the fe_velocity
[true,false,false,false,false,false,false]  FE_Q<2>(2)  The first component in fe_velocity
[false,true,false,false,false,false,false]  FE_Q<2>(2)  The second component in fe_velocity
[false,false,true,false,false,false,false]  FE_Q<2>(1)  fe_pressure
[false,false,false,true,false,false,false]  FE_DGP<2>(0)  first copy of fe_dg
[false,false,false,false,true,false,false]  FE_DGP<2>(0)  second copy of fe_dg
[false,false,false,false,false,true,true]  FE_BDM<2>(1)  both components of fe_nonprim

inlineinherited
Return for shape function index
the base element it belongs to, the number of the copy of this base element (which is between zero and the multiplicity of this element), and the index of this shape function within this base element.
If the element is not composed of others, then base and instance are always zero, and the index is equal to the number of the shape function. If the element is composed of single instances of other elements (i.e. all with multiplicity one) all of which are scalar, then base values and dof indices within this element are equal to the system_to_component_table. It differs only in case the element is composed of other elements and at least one of them is vectorvalued itself.
See the class documentation above for an example of how this function is typically used.
This function returns valid values also in the case of vectorvalued (i.e. nonprimitive) shape functions, in contrast to the system_to_component_index() function.

inlineinherited
Same as system_to_base_index(), but for degrees of freedom located on a face. The range of allowed indices is therefore 0..dofs_per_face.
You will rarely need this function in application programs, since almost all application codes only need to deal with cell indices, not face indices. The function is mainly there for use inside the library.

inlineinherited
Given a base element number, return the first block of a BlockVector it would generate.

inlineinherited
For each vector component, return which base element implements this component and which vector component in this base element this is. This information is only of interest for vectorvalued finite elements which are composed of several subelements. In that case, one may want to obtain information about the element implementing a certain vector component, which can be done using this function and the FESystem::base_element() function.
If this is a scalar finite element, then the return value is always equal to a pair of zeros.

inlineinherited

inlineinherited

inherited

inherited
Return a component mask with as many elements as this object has vector components and of which exactly the one component is true that corresponds to the given argument. See the glossary for more information.
scalar  An object that represents a single scalar vector component of this finite element.

inherited
Return a component mask with as many elements as this object has vector components and of which exactly the dim
components are true that correspond to the given argument. See the glossary for more information.
vector  An object that represents dim vector components of this finite element.

inherited
Return a component mask with as many elements as this object has vector components and of which exactly the dim*(dim+1)/2
components are true that correspond to the given argument. See the glossary for more information.
sym_tensor  An object that represents dim*(dim+1)/2 components of this finite element that are jointly to be interpreted as forming a symmetric tensor.

inherited
Given a block mask (see this glossary entry), produce a component mask (see this glossary entry) that represents the components that correspond to the blocks selected in the input argument. This is essentially a conversion operator from BlockMask to ComponentMask.
block_mask  The mask that selects individual blocks of the finite element

inherited
Return a block mask with as many elements as this object has blocks and of which exactly the one component is true that corresponds to the given argument. See the glossary for more information.
scalar  An object that represents a single scalar vector component of this finite element.

inherited
Return a component mask with as many elements as this object has vector components and of which exactly the dim
components are true that correspond to the given argument. See the glossary for more information.
vector  An object that represents dim vector components of this finite element.

inherited
Return a component mask with as many elements as this object has vector components and of which exactly the dim*(dim+1)/2
components are true that correspond to the given argument. See the glossary for more information.
sym_tensor  An object that represents dim*(dim+1)/2 components of this finite element that are jointly to be interpreted as forming a symmetric tensor.

inherited
Given a component mask (see this glossary entry), produce a block mask (see this glossary entry) that represents the blocks that correspond to the components selected in the input argument. This is essentially a conversion operator from ComponentMask to BlockMask.
component_mask  The mask that selects individual components of the finite element

inherited
Return the support points of the trial functions on the unit cell, if the derived finite element defines them. Finite elements that allow some kind of interpolation operation usually have support points. On the other hand, elements that define their degrees of freedom by, for example, moments on faces, or as derivatives, don't have support points. In that case, the returned field is empty.
If the finite element defines support points, then their number equals the number of degrees of freedom of the element. The order of points in the array matches that returned by the cell>get_dof_indices
function.
See the class documentation for details on support points.
FESystem(FE_Q(1),3)
for which each support point would appear three times in the returned array.

inherited
Return whether a finite element has defined support points. If the result is true, then a call to the get_unit_support_points() yields a nonempty array.
The result may be false if an element is not defined by interpolating shape functions, for example by Pelements on quadrilaterals. It will usually only be true if the element constructs its shape functions by the requirement that they be one at a certain point and zero at all the points associated with the other shape functions.
In composed elements (i.e. for the FESystem class), the result will be true if all the base elements have defined support points. FE_Nothing is a special case in FESystems, because it has 0 support points and has_support_points() is false, but an FESystem containing an FE_Nothing among other elements will return true.

inherited
Return the support points of the trial functions on the unit face, if the derived finite element defines some. Finite elements that allow some kind of interpolation operation usually have support points. On the other hand, elements that define their degrees of freedom by, for example, moments on faces, or as derivatives, don't have support points. In that case, the returned field is empty
Note that elements that have support points need not necessarily have some on the faces, even if the interpolation points are located physically on a face. For example, the discontinuous elements have interpolation points on the vertices, and for higher degree elements also on the faces, but they are not defined to be on faces since in that case degrees of freedom from both sides of a face (or from all adjacent elements to a vertex) would be identified with each other, which is not what we would like to have). Logically, these degrees of freedom are therefore defined to belong to the cell, rather than the face or vertex. In that case, the returned element would therefore have length zero.
If the finite element defines support points, then their number equals the number of degrees of freedom on the face (dofs_per_face). The order of points in the array matches that returned by the cell>face(face)>get_dof_indices
function.
See the class documentation for details on support points.

inherited
Return whether a finite element has defined support points on faces. If the result is true, then a call to the get_unit_face_support_points() yields a nonempty vector.
For more information, see the documentation for the has_support_points() function.

inherited
Return a vector of generalized support points.
See the glossary entry on generalized support points for more information.

inherited
Return whether a finite element has defined generalized support points. If the result is true, then a call to the get_generalized_support_points() yields a nonempty vector.
See the glossary entry on generalized support points for more information.

inlineinherited
For a given degree of freedom, return whether it is logically associated with a vertex, line, quad or hex.
For instance, for continuous finite elements this coincides with the lowest dimensional object the support point of the degree of freedom lies on. To give an example, for \(Q_1\) elements in 3d, every degree of freedom is defined by a shape function that we get by interpolating using support points that lie on the vertices of the cell. The support of these points of course extends to all edges connected to this vertex, as well as the adjacent faces and the cell interior, but we say that logically the degree of freedom is associated with the vertex as this is the lowest dimensional object it is associated with. Likewise, for \(Q_2\) elements in 3d, the degrees of freedom with support points at edge midpoints would yield a value of GeometryPrimitive::line from this function, whereas those on the centers of faces in 3d would return GeometryPrimitive::quad.
To make this more formal, the kind of object returned by this function represents the object so that the support of the shape function corresponding to the degree of freedom, (i.e., that part of the domain where the function "lives") is the union of all of the cells sharing this object. To return to the example above, for \(Q_2\) in 3d, the shape function with support point at an edge midpoint has support on all cells that share the edge and not only the cells that share the adjacent faces, and consequently the function will return GeometryPrimitive::line.
On the other hand, for discontinuous elements of type \(DGQ_2\), a degree of freedom associated with an interpolation polynomial that has its support point physically located at a line bounding a cell, but is nonzero only on one cell. Consequently, it is logically associated with the interior of that cell (i.e., with a GeometryPrimitive::quad in 2d and a GeometryPrimitive::hex in 3d).
[in]  cell_dof_index  The index of a shape function or degree of freedom. This index must be in the range [0,dofs_per_cell) .

protectedinherited
Reinit the vectors of restriction and prolongation matrices to the right sizes: For every refinement case, except for RefinementCase::no_refinement, and for every child of that refinement case the space of one restriction and prolongation matrix is allocated, see the documentation of the restriction and prolongation vectors for more detail on the actual vector sizes.
isotropic_restriction_only  only the restriction matrices required for isotropic refinement are reinited to the right size.
isotropic_prolongation_only  only the prolongation matrices required for isotropic refinement are reinited to the right size.

protectedinherited
Return the size of interface constraint matrices. Since this is needed in every derived finite element class when initializing their size, it is placed into this function, to avoid having to recompute the dimension dependent size of these matrices each time.
Note that some elements do not implement the interface constraints for certain polynomial degrees. In this case, this function still returns the size these matrices should have when implemented, but the actual matrices are empty.

staticprotectedinherited

protectedvirtualinherited

protectedpure virtualinherited
Compute information about the shape functions on the cell denoted by the first argument. Derived classes will have to implement this function based on the kind of element they represent. It is called by FEValues::reinit().
Conceptually, this function evaluates shape functions and their derivatives at the quadrature points represented by the mapped locations of those described by the quadrature argument to this function. In many cases, computing derivatives of shape functions (and in some cases also computing values of shape functions) requires making use of the mapping from the reference to the real cell; this information can either be taken from the mapping_data
object that has been filled for the current cell before this function is called, or by calling the member functions of a Mapping object with the mapping_internal
object that also corresponds to the current cell.
The information computed by this function is used to fill the various member variables of the output argument of this function. Which of the member variables of that structure should be filled is determined by the update flags stored in the FiniteElement::InternalDataBase::update_each field of the object passed to this function. These flags are typically set by FiniteElement::get_data(), FiniteElement::get_face_date() and FiniteElement::get_subface_data() (or, more specifically, implementations of these functions in derived classes).
An extensive discussion of the interaction between this function and FEValues can be found in the How Mapping, FiniteElement, and FEValues work together documentation module.
[in]  cell  The cell of the triangulation for which this function is to compute a mapping from the reference cell to.
[in]  cell_similarity  Whether or not the cell given as first argument is simply a translation, rotation, etc of the cell for which this function was called the most recent time. This information is computed simply by matching the vertices (as stored by the Triangulation) between the previous and the current cell. The value passed here may be modified by implementations of this function and should then be returned (see the discussion of the return value of this function).
[in]  quadrature  A reference to the quadrature formula in use for the current evaluation. This quadrature object is the same as the one used when creating the internal_data object. The current object is then responsible for evaluating shape functions at the mapped locations of the quadrature points represented by this object.
[in]  mapping  A reference to the mapping object used to map from the reference cell to the current cell. This object was used to compute the information in the mapping_data object before the current function was called. It is also the mapping object that created the mapping_internal object via Mapping::get_data(). You will need the reference to this mapping object most often to call Mapping::transform() to transform gradients and higher derivatives from the reference to the current cell.
[in]  mapping_internal  An object specific to the mapping object. What the mapping chooses to store in there is of no relevance to the current function, but you may have to pass a reference to this object to certain functions of the Mapping class (e.g., Mapping::transform()) if you need to call them from the current function.
[in]  mapping_data  The output object into which the Mapping::fill_fe_values() function wrote the mapping information corresponding to the current cell. This includes, for example, Jacobians of the mapping that may be of relevance to the current function, as well as other information that FEValues::reinit() requested from the mapping.
[in]  fe_internal  A reference to an object previously created by get_data() and that may be used to store information the mapping can compute once on the reference cell. See the documentation of the FiniteElement::InternalDataBase class for an extensive description of the purpose of these objects.
[out]  output_data  A reference to an object whose member variables should be computed. Not all of the members of this argument need to be filled; which ones need to be filled is determined by the update flags stored inside the fe_internal object.
fe_internal
and output_data
objects. In other words, if an implementation of this function knows that it has written a piece of data into the output argument in a previous call, then there is no need to copy it there again in a later call if the implementation knows that this is the same value.

protectedvirtualinherited
This function is the equivalent to FiniteElement::fill_fe_values(), but for faces of cells. See there for an extensive discussion of its purpose. It is called by FEFaceValues::reinit().
[in]  cell  The cell of the triangulation for which this function is to compute a mapping from the reference cell to.
[in]  face_no  The number of the face we are currently considering, indexed among the faces of the cell specified by the previous argument.
[in]  quadrature  A reference to the quadrature formula in use for the current evaluation. This quadrature object is the same as the one used when creating the internal_data object. The current object is then responsible for evaluating shape functions at the mapped locations of the quadrature points represented by this object.
[in]  mapping  A reference to the mapping object used to map from the reference cell to the current cell. This object was used to compute the information in the mapping_data object before the current function was called. It is also the mapping object that created the mapping_internal object via Mapping::get_data(). You will need the reference to this mapping object most often to call Mapping::transform() to transform gradients and higher derivatives from the reference to the current cell.
[in]  mapping_internal  An object specific to the mapping object. What the mapping chooses to store in there is of no relevance to the current function, but you may have to pass a reference to this object to certain functions of the Mapping class (e.g., Mapping::transform()) if you need to call them from the current function.
[in]  mapping_data  The output object into which the Mapping::fill_fe_values() function wrote the mapping information corresponding to the current cell. This includes, for example, Jacobians of the mapping that may be of relevance to the current function, as well as other information that FEValues::reinit() requested from the mapping.
[in]  fe_internal  A reference to an object previously created by get_data() and that may be used to store information the mapping can compute once on the reference cell. See the documentation of the FiniteElement::InternalDataBase class for an extensive description of the purpose of these objects.
[out]  output_data  A reference to an object whose member variables should be computed. Not all of the members of this argument need to be filled; which ones need to be filled is determined by the update flags stored inside the fe_internal object.

protectedvirtualinherited

protectedpure virtualinherited
This function is the equivalent to FiniteElement::fill_fe_values(), but for the children of faces of cells. See there for an extensive discussion of its purpose. It is called by FESubfaceValues::reinit().
[in]  cell  The cell of the triangulation for which this function is to compute a mapping from the reference cell to.
[in]  face_no  The number of the face we are currently considering, indexed among the faces of the cell specified by the previous argument.
[in]  sub_no  The number of the subface, i.e., the number of the child of a face, that we are currently considering, indexed among the children of the face specified by the previous argument.
[in]  quadrature  A reference to the quadrature formula in use for the current evaluation. This quadrature object is the same as the one used when creating the internal_data object. The current object is then responsible for evaluating shape functions at the mapped locations of the quadrature points represented by this object.
[in]  mapping  A reference to the mapping object used to map from the reference cell to the current cell. This object was used to compute the information in the mapping_data object before the current function was called. It is also the mapping object that created the mapping_internal object via Mapping::get_data(). You will need the reference to this mapping object most often to call Mapping::transform() to transform gradients and higher derivatives from the reference to the current cell.
[in]  mapping_internal  An object specific to the mapping object. What the mapping chooses to store in there is of no relevance to the current function, but you may have to pass a reference to this object to certain functions of the Mapping class (e.g., Mapping::transform()) if you need to call them from the current function.
[in]  mapping_data  The output object into which the Mapping::fill_fe_values() function wrote the mapping information corresponding to the current cell. This includes, for example, Jacobians of the mapping that may be of relevance to the current function, as well as other information that FEValues::reinit() requested from the mapping.
[in]  fe_internal  A reference to an object previously created by get_data() and that may be used to store information the mapping can compute once on the reference cell. See the documentation of the FiniteElement::InternalDataBase class for an extensive description of the purpose of these objects.
[out]  output_data  A reference to an object whose member variables should be computed. Not all of the members of this argument need to be filled; which ones need to be filled is determined by the update flags stored inside the fe_internal object.

inherited
Subscribes a user of the object by storing the pointer validity
. The subscriber may be identified by text supplied as identifier
.
Definition at line 136 of file subscriptor.cc.

inherited
Unsubscribes a user from the object.
identifier
and the validity
pointer must be the same as the one supplied to subscribe(). Definition at line 156 of file subscriptor.cc.

inlineinherited
Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.
Definition at line 301 of file subscriptor.h.

inlineinherited
List the subscribers to the input stream
.
Definition at line 318 of file subscriptor.h.

inherited
List the subscribers to deallog
.
Definition at line 204 of file subscriptor.cc.

inlineinherited
Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.
This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.
Definition at line 310 of file subscriptor.h.

inherited
Return the kind of reference cell this element is defined on: For example, whether the element's reference cell is a square or triangle, or similar choices in higher dimensions.

inherited
Number of unique quads. If all quads have the same type, the value is one; else it equals the number of quads.

inherited
Number of unique faces. If all faces have the same type, the value is one; else it equals the number of faces.

inherited
Number of dofs per vertex.

inherited
Number of dofs per line. Not including dofs on lower dimensional objects.

inherited
Number of dofs per quad. Not including dofs on lower dimensional objects.

inherited
Maximum number of dofs per quad. Not including dofs on lower dimensional objects.

inherited
Number of dofs per hex. Not including dofs on lower dimensional objects.

inherited
Number of dofs per face, accumulating degrees of freedom of all lower dimensional objects.

inherited
Maximum number of dofs per face, accumulating degrees of freedom of all lower dimensional objects.

inherited
Number of dofs per cell, accumulating degrees of freedom of all lower dimensional objects.

inherited
Return the number of degrees per structdimdimensional object. For structdim==0, the function therefore returns dofs_per_vertex, for structdim==1 dofs_per_line, etc. This function is mostly used to allow some template trickery for functions that should work on all sorts of objects without wanting to use the different names (vertex, line, ...) associated with these objects.

inherited
Number of components. See the glossary for more information.

inherited
Number of blocks. See the glossary for more information.

inherited
Detailed information on block sizes.

inherited
Maximal polynomial degree of a shape function in a single coordinate direction.
This function can be used to determine the optimal quadrature rule.

inherited
Test whether a finite element space conforms to a certain Sobolev space.

inherited
Return first index of dof on a line.

inherited
Return first index of dof on a quad.

inherited
Return first index of dof on a hexahedron.

inherited
Return first index of dof on a line for face data.

inherited
Return first index of dof on a quad for face data.

friend
Definition at line 1300 of file fe_system.h.

staticprivate
Value to indicate that a given face or subface number is invalid.
Definition at line 1170 of file fe_system.h.

private
Pointers to underlying finite element objects.
This object contains a pointer to each contributing element of a mixed discretization and its multiplicity. It is created by the constructor and constant afterwards.
Definition at line 1181 of file fe_system.h.

private
An index table that maps generalized support points of a base element to the vector of generalized support points of the FE System. It holds true that
for each base element (indexed by i) and each g. s. point of the base element (index by j).
Definition at line 1195 of file fe_system.h.

mutableprivate
Mutex for protecting initialization of restriction and embedding matrix.
Definition at line 1298 of file fe_system.h.

staticinherited
The dimension of the image space, corresponding to Triangulation.

protectedinherited
Vector of projection matrices. See get_restriction_matrix() above. The constructor initializes these matrices to zero dimensions, which can be changed by derived classes implementing them.
Note, that restriction[refinement_case1][child]
includes the restriction matrix of child child
for the RefinementCase refinement_case
. Here, we use refinement_case1
instead of refinement_case
as for RefinementCase::no_refinement(=0) there are no restriction matrices available.

protectedinherited
Vector of embedding matrices. See get_prolongation_matrix()
above. The constructor initializes these matrices to zero dimensions, which can be changed by derived classes implementing them.
Note, that prolongation[refinement_case1][child]
includes the prolongation matrix of child child
for the RefinementCase refinement_case
. Here, we use refinement_case1
instead of refinement_case
as for RefinementCase::no_refinement(=0) there are no prolongation matrices available.

protectedinherited
Specify the constraints which the dofs on the two sides of a cell interface underlie if the line connects two cells of which one is refined once.
For further details see the general description of the derived class.
This field is obviously useless in one dimension and has there a zero size.

protectedinherited
List of support points on the unit cell, in case the finite element has any. The constructor leaves this field empty, derived classes may write in some contents.
Finite elements that allow some kind of interpolation operation usually have support points. On the other hand, elements that define their degrees of freedom by, for example, moments on faces, or as derivatives, don't have support points. In that case, this field remains empty.

protectedinherited
Same for the faces. See the description of the get_unit_face_support_points() function for a discussion of what contributes a face support point.

protectedinherited

protectedinherited

protectedinherited
For faces with nonstandard face_orientation in 3D, the dofs on faces (quads) have to be permuted in order to be combined with the correct shape functions. Given a local dof index
on a quad, return the shift in the local index, if the face has nonstandard face_orientation, i.e. old_index + shift = new_index
. In 2D and 1D there is no need for permutation so the vector is empty. In 3D it has the size of dofs_per_quad * 8
, where 8 is the number of orientations, a face can be in (all combinations of the three bool flags face_orientation, face_flip and face_rotation).
The constructor of this class fills this table with zeros, i.e., no permutation at all. Derived finite element classes have to fill this Table with the correct values.

protectedinherited
For lines with nonstandard line_orientation in 3D, the dofs on lines have to be permuted in order to be combined with the correct shape functions. Given a local dof index
on a line, return the shift in the local index, if the line has nonstandard line_orientation, i.e. old_index + shift = new_index
. In 2D and 1D there is no need for permutation so the vector is empty. In 3D it has the size of dofs_per_line.
The constructor of this class fills this table with zeros, i.e., no permutation at all. Derived finite element classes have to fill this vector with the correct values.

protectedinherited
Store what system_to_component_index() will return.

protectedinherited
Map between linear dofs and component dofs on face. This is filled with default values in the constructor, but derived classes will have to overwrite the information if necessary.
By component, we mean the vector component, not the base element. The information thus makes only sense if a shape function is nonzero in only one component.

protectedinherited
For each shape function, store to which base element and which instance of this base element (in case its multiplicity is greater than one) it belongs, and its index within this base element. If the element is not composed of others, then base and instance are always zero, and the index is equal to the number of the shape function. If the element is composed of single instances of other elements (i.e. all with multiplicity one) all of which are scalar, then base values and dof indices within this element are equal to the system_to_component_table. It differs only in case the element is composed of other elements and at least one of them is vectorvalued itself.
This array has valid values also in the case of vectorvalued (i.e. non primitive) shape functions, in contrast to the system_to_component_table.

protectedinherited

protectedinherited

protectedinherited
The base element establishing a component.
For each component number c
, the entries have the following meaning:
table[c].first.first
c
. This is the index you can pass to base_element(). table[c].first.second
c
. This value is between 0 and the n_components() of this base element. table[c].second
c
. This value is between 0 and the element_multiplicity() of this base element. This variable is set to the correct size by the constructor of this class, but needs to be initialized by derived classes, unless its size is one and the only entry is a zero, which is the case for scalar elements. In that case, the initialization by the base class is sufficient.

protectedinherited

protectedinherited
For each shape function, give a vector of bools (with size equal to the number of vector components which this finite element has) indicating in which component each of these shape functions is nonzero.
For primitive elements, there is only one nonzero component.

protectedinherited
This array holds how many values in the respective entry of the nonzero_components element are nonzero. The array is thus a shortcut to allow faster access to this information than if we had to count the nonzero entries upon each request for this information. The field is initialized in the constructor of this class.

protectedinherited

staticinherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited

inherited
Number of vector components of this finite element, and dimension of the image space. For vectorvalued finite elements (i.e. when this number is greater than one), the number of vector components is in many cases equal to the number of base elements glued together with the help of the FESystem class. However, for elements like the Nedelec element, the number is greater than one even though we only have one base element.

inherited

inherited

inherited
Storage for an object describing the sizes of each block of a compound element. For an element which is not an FESystem, this contains only a single block with length dofs_per_cell.
