Reference documentation for deal.II version 9.3.0
\(\newcommand{\dealvcentcolon}{\mathrel{\mathop{:}}}\) \(\newcommand{\dealcoloneq}{\dealvcentcolon\mathrel{\mkern-1.2mu}=}\) \(\newcommand{\jump}[1]{\left[\!\left[ #1 \right]\!\right]}\) \(\newcommand{\average}[1]{\left\{\!\left\{ #1 \right\}\!\right\}}\)
Classes | Public Types | Public Member Functions | Static Public Member Functions | Protected Attributes | Friends | List of all members

#include <deal.II/lac/trilinos_precondition.h>

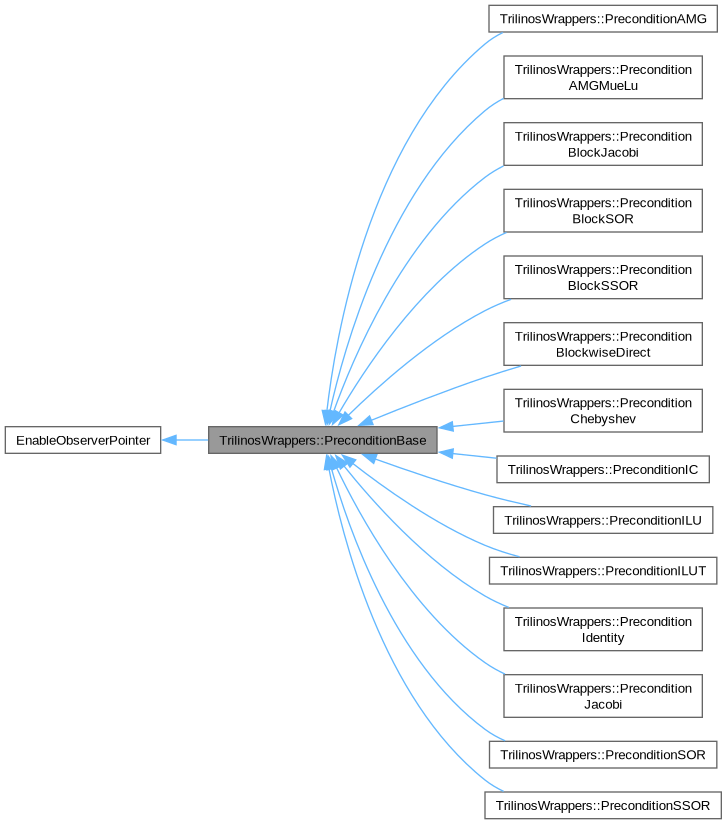

Inheritance diagram for TrilinosWrappers::PreconditionBase:
[legend]

Classes

struct  AdditionalData


Public Types

using size_type = ::types::global_dof_index


Public Member Functions

 PreconditionBase ()

 PreconditionBase (const PreconditionBase &)

 ~PreconditionBase () override=default

void clear ()

MPI_Comm get_mpi_communicator () const

void transpose ()

virtual void vmult (MPI::Vector &dst, const MPI::Vector &src) const

virtual void Tvmult (MPI::Vector &dst, const MPI::Vector &src) const

virtual void vmult (::Vector< double > &dst, const ::Vector< double > &src) const

virtual void Tvmult (::Vector< double > &dst, const ::Vector< double > &src) const

virtual void vmult (::LinearAlgebra::distributed::Vector< double > &dst, const ::LinearAlgebra::distributed::Vector< double > &src) const

virtual void Tvmult (::LinearAlgebra::distributed::Vector< double > &dst, const ::LinearAlgebra::distributed::Vector< double > &src) const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Access to underlying Trilinos data
Epetra_Operatortrilinos_operator () const

Partitioners
IndexSet locally_owned_domain_indices () const

IndexSet locally_owned_range_indices () const

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcNonMatchingMaps (std::string arg1)

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Protected Attributes

Teuchos::RCP< Epetra_Operatorpreconditioner

Epetra_MpiComm communicator

std::shared_ptr< Epetra_Map > vector_distributor


Friends

class SolverBase


Detailed Description

The base class for all preconditioners based on Trilinos sparse matrices.

Definition at line 80 of file trilinos_precondition.h.

Member Typedef Documentation

◆ size_type

Declare the type for container size.

Definition at line 86 of file trilinos_precondition.h.

Constructor & Destructor Documentation

◆ PreconditionBase() [1/2]

TrilinosWrappers::PreconditionBase::PreconditionBase ( )

Constructor. Does not do anything. The initialize function of the derived classes will have to create the preconditioner from a given sparse matrix.

Definition at line 34 of file trilinos_precondition.cc.

◆ PreconditionBase() [2/2]

TrilinosWrappers::PreconditionBase::PreconditionBase ( const PreconditionBase base)

Copy constructor.

Definition at line 42 of file trilinos_precondition.cc.

◆ ~PreconditionBase()

TrilinosWrappers::PreconditionBase::~PreconditionBase ( )
overridedefault

Destructor.

Member Function Documentation

◆ clear()

void TrilinosWrappers::PreconditionBase::clear ( )

Destroys the preconditioner, leaving an object like just after having called the constructor.

Definition at line 56 of file trilinos_precondition.cc.

◆ get_mpi_communicator()

MPI_Comm TrilinosWrappers::PreconditionBase::get_mpi_communicator ( ) const

Return the MPI communicator object in use with this matrix.

Definition at line 67 of file trilinos_precondition.cc.

◆ transpose()

void TrilinosWrappers::PreconditionBase::transpose ( )

Sets an internal flag so that all operations performed by the matrix, i.e., multiplications, are done in transposed order. However, this does not reshape the matrix to transposed form directly, so care should be taken when using this flag.

Note
Calling this function any even number of times in succession will return the object to its original state.

◆ vmult() [1/3]

virtual void TrilinosWrappers::PreconditionBase::vmult ( MPI::Vector dst,
const MPI::Vector src
) const
virtual

Apply the preconditioner.

Reimplemented in TrilinosWrappers::PreconditionIdentity.

◆ Tvmult() [1/3]

virtual void TrilinosWrappers::PreconditionBase::Tvmult ( MPI::Vector dst,
const MPI::Vector src
) const
virtual

Apply the transpose preconditioner.

Reimplemented in TrilinosWrappers::PreconditionIdentity.

◆ vmult() [2/3]

virtual void TrilinosWrappers::PreconditionBase::vmult ( ::Vector< double > &  dst,
const ::Vector< double > &  src
) const
virtual

Apply the preconditioner on deal.II data structures instead of the ones provided in the Trilinos wrapper class.

Reimplemented in TrilinosWrappers::PreconditionIdentity.

◆ Tvmult() [2/3]

virtual void TrilinosWrappers::PreconditionBase::Tvmult ( ::Vector< double > &  dst,
const ::Vector< double > &  src
) const
virtual

Apply the transpose preconditioner on deal.II data structures instead of the ones provided in the Trilinos wrapper class.

Reimplemented in TrilinosWrappers::PreconditionIdentity.

◆ vmult() [3/3]

virtual void TrilinosWrappers::PreconditionBase::vmult ( ::LinearAlgebra::distributed::Vector< double > &  dst,
const ::LinearAlgebra::distributed::Vector< double > &  src
) const
virtual

Apply the preconditioner on deal.II parallel data structures instead of the ones provided in the Trilinos wrapper class.

◆ Tvmult() [3/3]

virtual void TrilinosWrappers::PreconditionBase::Tvmult ( ::LinearAlgebra::distributed::Vector< double > &  dst,
const ::LinearAlgebra::distributed::Vector< double > &  src
) const
virtual

Apply the transpose preconditioner on deal.II parallel data structures instead of the ones provided in the Trilinos wrapper class.

◆ trilinos_operator()

Epetra_Operator & TrilinosWrappers::PreconditionBase::trilinos_operator ( ) const

Calling this function from an uninitialized object will cause an exception.

Definition at line 78 of file trilinos_precondition.cc.

◆ locally_owned_domain_indices()

IndexSet TrilinosWrappers::PreconditionBase::locally_owned_domain_indices ( ) const

Return the partitioning of the domain space of this matrix, i.e., the partitioning of the vectors this matrix has to be multiplied with.

Definition at line 87 of file trilinos_precondition.cc.

◆ locally_owned_range_indices()

IndexSet TrilinosWrappers::PreconditionBase::locally_owned_range_indices ( ) const

Return the partitioning of the range space of this matrix, i.e., the partitioning of the vectors that are result from matrix-vector products.

Definition at line 94 of file trilinos_precondition.cc.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 301 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 318 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 310 of file subscriptor.h.

Friends And Related Function Documentation

◆ SolverBase

friend class SolverBase
friend

Definition at line 229 of file trilinos_precondition.h.

Member Data Documentation

◆ preconditioner

Teuchos::RCP<Epetra_Operator> TrilinosWrappers::PreconditionBase::preconditioner
protected

This is a pointer to the preconditioner object that is used when applying the preconditioner.

Definition at line 236 of file trilinos_precondition.h.

◆ communicator

Epetra_MpiComm TrilinosWrappers::PreconditionBase::communicator
protected

Internal communication pattern in case the matrix needs to be copied from deal.II format.

Definition at line 243 of file trilinos_precondition.h.

◆ vector_distributor

std::shared_ptr<Epetra_Map> TrilinosWrappers::PreconditionBase::vector_distributor
protected

Internal Trilinos map in case the matrix needs to be copied from deal.II format.

Definition at line 252 of file trilinos_precondition.h.


The documentation for this class was generated from the following files:
