Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | Private Types | Private Member Functions | Private Attributes | Static Private Attributes | List of all members
MGLevelGlobalTransfer< VectorType > Class Template Referenceabstract

#include <deal.II/multigrid/mg_transfer.h>

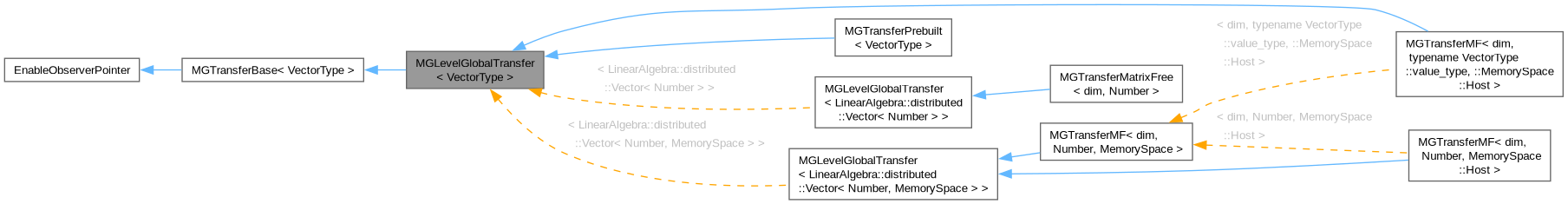

Inheritance diagram for MGLevelGlobalTransfer< VectorType >:
[legend]

Public Member Functions

void clear ()

template<int dim, class InVector , int spacedim>
void copy_to_mg (const DoFHandler< dim, spacedim > &dof_handler, MGLevelObject< VectorType > &dst, const InVector &src) const

template<int dim, class OutVector , int spacedim>
void copy_from_mg (const DoFHandler< dim, spacedim > &dof_handler, OutVector &dst, const MGLevelObject< VectorType > &src) const

template<int dim, class OutVector , int spacedim>
void copy_from_mg_add (const DoFHandler< dim, spacedim > &dof_handler, OutVector &dst, const MGLevelObject< VectorType > &src) const

void set_component_to_block_map (const std::vector< unsigned int > &map)

std::size_t memory_consumption () const

void print_indices (std::ostream &os) const

virtual void prolongate (const unsigned int to_level, VectorType &dst, const VectorType &src) const =0

virtual void prolongate_and_add (const unsigned int to_level, VectorType &dst, const VectorType &src) const

virtual void restrict_and_add (const unsigned int from_level, VectorType &dst, const VectorType &src) const =0

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Protected Member Functions

template<int dim, int spacedim>
void fill_and_communicate_copy_indices (const DoFHandler< dim, spacedim > &dof_handler)


Protected Attributes

std::vector< types::global_dof_indexsizes

std::vector< std::vector< std::pair< types::global_dof_index, types::global_dof_index > > > copy_indices

std::vector< std::vector< std::pair< types::global_dof_index, types::global_dof_index > > > copy_indices_global_mine

std::vector< std::vector< std::pair< types::global_dof_index, types::global_dof_index > > > copy_indices_level_mine

bool perform_plain_copy

std::vector< unsigned intcomponent_to_block_map

SmartPointer< const MGConstrainedDoFs, MGLevelGlobalTransfer< VectorType > > mg_constrained_dofs


Private Types

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

template<int dim, int spacedim>
void assert_built (const DoFHandler< dim, spacedim > &dof_handler) const

void check_no_subscribers () const noexcept


Private Attributes

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Static Private Attributes

static std::mutex mutex


Detailed Description

template<typename VectorType>
class MGLevelGlobalTransfer< VectorType >

Implementation of transfer between the global vectors and the multigrid levels for use in the derived class MGTransferPrebuilt and other classes.

Definition at line 250 of file mg_transfer.h.

Member Typedef Documentation

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 230 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 235 of file subscriptor.h.

Member Function Documentation

◆ clear()

template<typename VectorType >
void MGLevelGlobalTransfer< VectorType >::clear

Reset the object to the state it had right after the default constructor.

Definition at line 99 of file mg_level_global_transfer.cc.

◆ copy_to_mg()

template<typename VectorType >
template<int dim, class InVector , int spacedim>
void MGLevelGlobalTransfer< VectorType >::copy_to_mg ( const DoFHandler< dim, spacedim > &  dof_handler,
MGLevelObject< VectorType > &  dst,
const InVector &  src
) const

Transfer from a vector on the global grid to vectors defined on each of the levels separately for the active degrees of freedom. In particular, for a globally refined mesh only the finest level in dst is filled as a plain copy of src. All the other level objects are left untouched.

◆ copy_from_mg()

template<typename VectorType >
template<int dim, class OutVector , int spacedim>
void MGLevelGlobalTransfer< VectorType >::copy_from_mg ( const DoFHandler< dim, spacedim > &  dof_handler,
OutVector &  dst,
const MGLevelObject< VectorType > &  src
) const

Transfer from multi-level vector to normal vector.

Copies data from active portions of an MGVector into the respective positions of a Vector<number>. In order to keep the result consistent, constrained degrees of freedom are set to zero.

◆ copy_from_mg_add()

template<typename VectorType >
template<int dim, class OutVector , int spacedim>
void MGLevelGlobalTransfer< VectorType >::copy_from_mg_add ( const DoFHandler< dim, spacedim > &  dof_handler,
OutVector &  dst,
const MGLevelObject< VectorType > &  src
) const

Add a multi-level vector to a normal vector.

Works as the previous function, but probably not for continuous elements.

◆ set_component_to_block_map()

template<typename VectorType >
void MGLevelGlobalTransfer< VectorType >::set_component_to_block_map ( const std::vector< unsigned int > &  map)

If this object operates on BlockVector objects, we need to describe how the individual vector components are mapped to the blocks of a vector. For example, for a Stokes system, we have dim+1 vector components for velocity and pressure, but we may want to use block vectors with only two blocks for all velocities in one block, and the pressure variables in the other.

By default, if this function is not called, block vectors have as many blocks as the finite element has vector components. However, this can be changed by calling this function with an array that describes how vector components are to be grouped into blocks. The meaning of the argument is the same as the one given to the DoFTools::count_dofs_per_component function.

◆ memory_consumption()

template<typename VectorType >
std::size_t MGLevelGlobalTransfer< VectorType >::memory_consumption

Memory used by this object.

Definition at line 143 of file mg_level_global_transfer.cc.

◆ print_indices()

template<typename VectorType >
void MGLevelGlobalTransfer< VectorType >::print_indices ( std::ostream &  os) const

Print the copy index fields for debugging purposes.

Definition at line 114 of file mg_level_global_transfer.cc.

◆ fill_and_communicate_copy_indices()

template<typename VectorType >
template<int dim, int spacedim>
void MGLevelGlobalTransfer< VectorType >::fill_and_communicate_copy_indices ( const DoFHandler< dim, spacedim > &  dof_handler)
protected

Internal function to fill copy_indices*. Called by derived classes.

Definition at line 51 of file mg_level_global_transfer.cc.

◆ assert_built()

template<typename VectorType >
template<int dim, int spacedim>
void MGLevelGlobalTransfer< VectorType >::assert_built ( const DoFHandler< dim, spacedim > &  dof_handler) const
private

This function is called to make sure that build() has been invoked.

◆ prolongate()

template<typename VectorType >
virtual void MGTransferBase< VectorType >::prolongate ( const unsigned int  to_level,
VectorType &  dst,
const VectorType &  src
) const
pure virtualinherited

Prolongate a vector from level to_level-1 to level to_level. The previous content of dst is overwritten.

  • src is a vector with as many elements as there are degrees of freedom on the coarser level involved.
  • dst has as many elements as there are degrees of freedom on the finer level.

Implemented in MGTransferBlock< number >, MGTransferBlockMatrixFreeBase< dim, Number, TransferType >, MGTransferBlockMatrixFreeBase< dim, Number, MGTransferMatrixFree< dim, Number > >, MGTransferMatrixFree< dim, Number >, MGTransferBlockSelect< number >, MGTransferSelect< number >, MGTransferPrebuilt< VectorType >, and MGTransferGlobalCoarsening< dim, VectorType >.

◆ prolongate_and_add()

template<typename VectorType >
void MGTransferBase< VectorType >::prolongate_and_add ( const unsigned int  to_level,
VectorType &  dst,
const VectorType &  src
) const
virtualinherited

Prolongate a vector from level to_level-1 to level to_level, summing into the previous content of dst.

  • src is a vector with as many elements as there are degrees of freedom on the coarser level involved.
  • dst has as many elements as there are degrees of freedom on the finer level.

Reimplemented in MGTransferBlockMatrixFreeBase< dim, Number, TransferType >, MGTransferBlockMatrixFreeBase< dim, Number, MGTransferMatrixFree< dim, Number > >, and MGTransferGlobalCoarsening< dim, VectorType >.

Definition at line 47 of file mg_base.cc.

◆ restrict_and_add()

template<typename VectorType >
virtual void MGTransferBase< VectorType >::restrict_and_add ( const unsigned int  from_level,
VectorType &  dst,
const VectorType &  src
) const
pure virtualinherited

Restrict a vector from level from_level to level from_level-1 and add this restriction to dst. If the region covered by cells on level from_level is smaller than that of level from_level-1 (local refinement), then some degrees of freedom in dst are active and will not be altered. For the other degrees of freedom, the result of the restriction is added.

  • src is a vector with as many elements as there are degrees of freedom on the finer level
  • dst has as many elements as there are degrees of freedom on the coarser level.

Implemented in MGTransferBlock< number >, MGTransferBlockMatrixFreeBase< dim, Number, TransferType >, MGTransferBlockMatrixFreeBase< dim, Number, MGTransferMatrixFree< dim, Number > >, MGTransferMatrixFree< dim, Number >, MGTransferBlockSelect< number >, MGTransferSelect< number >, MGTransferPrebuilt< VectorType >, and MGTransferGlobalCoarsening< dim, VectorType >.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 53 of file subscriptor.cc.

Member Data Documentation

◆ sizes

template<typename VectorType >
std::vector<types::global_dof_index> MGLevelGlobalTransfer< VectorType >::sizes
protected

Sizes of the multi-level vectors.

Definition at line 337 of file mg_transfer.h.

◆ copy_indices

template<typename VectorType >
std::vector< std::vector<std::pair<types::global_dof_index, types::global_dof_index> > > MGLevelGlobalTransfer< VectorType >::copy_indices
protected

Mapping for the copy_to_mg() and copy_from_mg() functions. Here only index pairs locally owned

The data is organized as follows: one vector per level. Each element of these vectors contains first the global index, then the level index.

Definition at line 348 of file mg_transfer.h.

◆ copy_indices_global_mine

template<typename VectorType >
std::vector< std::vector<std::pair<types::global_dof_index, types::global_dof_index> > > MGLevelGlobalTransfer< VectorType >::copy_indices_global_mine
protected

Additional degrees of freedom for the copy_to_mg() function. These are the ones where the global degree of freedom is locally owned and the level degree of freedom is not.

Organization of the data is like for copy_indices_mine.

Definition at line 359 of file mg_transfer.h.

◆ copy_indices_level_mine

template<typename VectorType >
std::vector< std::vector<std::pair<types::global_dof_index, types::global_dof_index> > > MGLevelGlobalTransfer< VectorType >::copy_indices_level_mine
protected

Additional degrees of freedom for the copy_from_mg() function. These are the ones where the level degree of freedom is locally owned and the global degree of freedom is not.

Organization of the data is like for copy_indices_mine.

Definition at line 370 of file mg_transfer.h.

◆ perform_plain_copy

template<typename VectorType >
bool MGLevelGlobalTransfer< VectorType >::perform_plain_copy
protected

This variable stores whether the copy operation from the global to the level vector is actually a plain copy to the finest level. This means that the grid has no adaptive refinement and the numbering on the finest multigrid level is the same as in the global case.

Definition at line 378 of file mg_transfer.h.

◆ component_to_block_map

template<typename VectorType >
std::vector<unsigned int> MGLevelGlobalTransfer< VectorType >::component_to_block_map
protected

The vector that stores what has been given to the set_component_to_block_map() function.

Definition at line 384 of file mg_transfer.h.

◆ mg_constrained_dofs

template<typename VectorType >
SmartPointer<const MGConstrainedDoFs, MGLevelGlobalTransfer<VectorType> > MGLevelGlobalTransfer< VectorType >::mg_constrained_dofs
protected

The mg_constrained_dofs of the level systems.

Definition at line 390 of file mg_transfer.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 219 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 225 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 241 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 249 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex
staticprivateinherited

A mutex used to ensure data consistency when printing out the list of subscribers.

Definition at line 271 of file subscriptor.h.


The documentation for this class was generated from the following files:
