The 'Linear Elastic Active Skeletal Muscle Model' code gallery program

This program was contributed by Jean-Paul Pelteret <jppelteret@gmail.com>.
It comes without any warranty or support by its authors or the authors of deal.II.

This program is part of the deal.II code gallery and consists of the following files (click to inspect):

Pictures from this code gallery program

Annotated version of README.md

Overview

The complex interaction of muscles with their surrounding anatomy and environment plays a vital role in the many activities that are required for animals to live and survive. Skeletal muscle composes a large portion of that musculo-skeletal system, and is controlled by the central nervous system in a conscious or unconscious manner. For humans in particular, the construction of- and control mechanisms behind skeletal muscle allows us to accomplish complex tasks ranging from those that are physically exerting to those that are delicate and require great dexterity.

As an introduction into the biomechanics of the human muscular system, we combine a well known load-activation pattern taken from well established literature on the topic (both in the fields of human physiology and the computational simulation thereof) with an idealised model of a part of the human anatomy that most can easily identify with, namely the biceps brachii.

An idealised model of the human biceps brachii

To tackle this problem, we do not deviate particularly far from the approach that is comprehensively documented in @ref step_8 "step-8". The primary differences between this code-gallery example and the tutorial is the alteration of the geometry and boundary conditions that accompany it, as well as the extension of the constitutive law to include the transversely isotropic active muscle model. We thus present both the theory and associated nomenclature (which is mimicked in the code itself) in the accompanying document. There you can observe the additional contributions to both the left- and right-hand sides of the linear system due to the integration of the rate-dependent, linearised muscle model. Although such linear model models are valid only under conditions of small deformations, in this scenario we will (with a healthy dose of skepticism) make a very coarse-grained first approximation of the muscles behaviour in the large deformation regime.

The basic problem configuration, including a depiction of the underlying muscle microstructural orientation, is (loosely) summarised in the following image. Problem geometry Note that the driver for the deformation of the muscle tissue are the applied traction alone when the muscle is in a passive state. However, during active contraction, as governed by the prescribed input neural signal, the muscle works against the applied traction. This condition, where the traction applied to a muscle is constant during periods of muscle activation, is known as isotonic contraction. More specifically, since overall the muscle shortens during contraction we are in fact modelling concentric contraction of the biceps.

As for the specific geometry of the problem, we consider an idealised human biceps with a length of 250mm, insertion and origin diameter of 20mm and a diameter of 80mm at its mid-point. We assume that there exists a single muscle fibre family orientated axially. The orientation of the underlying muscle fibres is, however, not parallel, but rather follows the curvature of the macroscopic anatomy. The longitudinal profile of the muscle is generated using a trignometric function, as opposed to being extracted from medical images. The benefit to doing so is that the geometry can be (parametrically) created in deal.II itself and the associated microstructural orientation can be directly linked to the user-defined geometry.

Requirements

Version 8.5 or greater of deal.II

There are no other requirements with regards to the third-party packages that deal.II can link to.

Compiling and running

Similar to the example programs, run

cmake -DDEAL_II_DIR=/path/to/deal.II .

in this directory to configure the problem.
You can switch between debug and release mode by calling either

make debug

or

make release

The problem may then be run with

make run

Some simulation parameters may be changed by adjusting the parameters.prm file. Notably, its possible to switch between the model of the biceps and the reduced geometry used to reproduce the linearised counterpart of the isotonic contraction numerical experiments conducted by Martins.

Reference for this work

If you use this program as a basis for your own work, please consider citing it in your list of references. The initial version of this work was contributed to the deal.II project by the authors listed in the following citation: J-P. V. Pelteret and T. Hamann, The deal.II code gallery: Linear Elastic Active Skeletal Muscle Mode, 2017. DOI: 10.5281/zenodo.437608

Acknowledgements

The support of this work by the European Research Council (ERC) through the Advanced Grant 289049 MOCOPOLY is gratefully acknowledged by the first author.

Recommended Literature

Kajee, Y. and Pelteret, J-P. V. and Reddy, B. D. (2013), The biomechanics of the human tongue. International Journal for Numerical Methods in Biomedical Engineering 29 , 4, 492-514. DOI: 10.1002/cnm.2531;

J-P. V. Pelteret, A computational neuromuscular model of the human upper airway with application to the study of obstructive sleep apnoea. PhD Thesis, University of Cape Town, 2013. http://hdl.handle.net/11427/9519;

Martins, J. A. C. and Pires, E. B. and Salvado, R. and Dinis, P. B. (1998), A numerical model of passive and active behaviour of skeletal muscles. Computer Methods in Applied Mechanics and Engineering 151 , 419-433. DOI: 10.1016/S0045-7825(97)00162-X;

Martins, J. A. C. and Pato, M. P. M. and Pires, E. B. (2006), A finite element model of skeletal muscles. Virtual and Physical Prototyping 1 , 159-170. DOI: 10.1080/17452750601040626;

Pandy, M. G. and Zajac, F. E. and Sim, E. and Levine, W. S. (1990), An optimal control model for maximum-height human jumping. Journal of Biomechanics 23 , 1185-1198. DOI: 10.1016/0021-9290(90)90376-E;

T.J.R. Hughes (2000), The Finite Element Method: Linear Static and Dynamic Finite Element Analysis, Dover. ISBN: 978-0486411811

Results

The displacement of the central point on the insertion surface (i.e. the traction boundary) is plotted against the simulation time when the muscle is made to undergo concentric contraction. Within the first second, when the muscle is completely passive, the displacement increases linearly due to the applied pressure that ramps to a maximum over this duration. This response is not entirely unsurprising for this geometrically symmetric, linear elastic body. When the muscle is activated, it shortens considerably until during the 1s for which the neural signal is applied. The activation level increases exponentially until is saturates near the 2s mark. At this point the neural signal is removed and the muscle starts to relax. The contractile level decreases exponentially and the muscle is nearly completely relaxed by the end of the simulation. Problem geometry

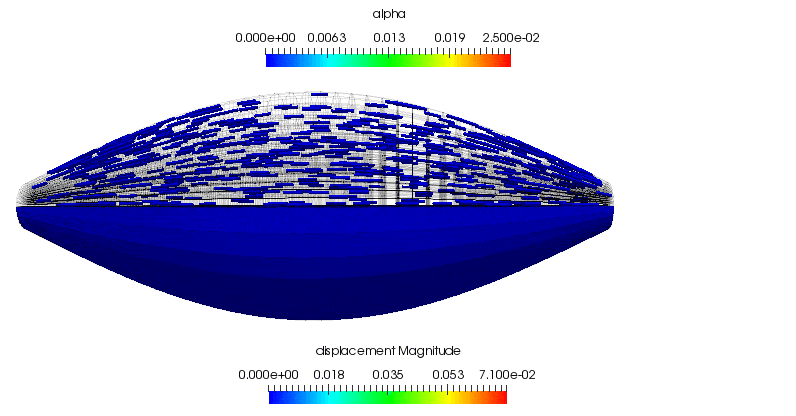

As a supplement to the above, the following animation shows the concentric contraction (under the assumption that it experiences no additional gravitational loading is present). All of the highlights that are discussed above can be observed in the gross displacement of the body, as well as the activation level that is visualised through the depiction of the underlying microstructure directions. This also shows how the muscle's cross-section influences the shortening along the length of the muscle. Problem geometry

Influence of gravity

Just for fun, we can repeat the above experiment with a fraction of the full gravitational loading applied in the transverse direction. We apply only a fraction of the full load because the muscle is not sufficiently well constrained and does not see the support of its surrounding anatomy. The loading condition is thus somewhat unphysical and, due to the lack of constraint, the application of the full load results in excessive deformation.

Here we see the fully passive muscle with partial gravitational loading and a full traction load Displaced solution and its counterpart solution when in the active stage. Displaced solution The asymmetry of the solution is clearly observed, although the length change that it exhibits curing the concentric contraction cycle remains somewhat similar to that demonstrated before.

Annotated version of Linear_active_muscle_model.cc

  /* ---------------------------------------------------------------------
  * Copyright (C) 2017 by the deal.II authors and
  * Jean-Paul Pelteret and Tim Hamann
  *
  * This file is part of the deal.II library.
  *
  * The deal.II library is free software; you can use it, redistribute
  * it, and/or modify it under the terms of the GNU Lesser General
  * Public License as published by the Free Software Foundation; either
  * version 2.1 of the License, or (at your option) any later version.
  * The full text of the license can be found in the file LICENSE at
  * the top level of the deal.II distribution.
  *
  * ---------------------------------------------------------------------
  */

  /*
  * Authors: Jean-Paul Pelteret, Tim Hamann,
  * University of Erlangen-Nuremberg, 2017
  *
  * The support of this work by the European Research Council (ERC) through
  * the Advanced Grant 289049 MOCOPOLY is gratefully acknowledged by the
  * first author.
  */


Include files

  #include <deal.II/base/quadrature_lib.h>
  #include <deal.II/base/function.h>
  #include <deal.II/base/logstream.h>
  #include <deal.II/base/parameter_handler.h>
  #include <deal.II/lac/affine_constraints.h>
  #include <deal.II/lac/vector.h>
  #include <deal.II/lac/full_matrix.h>
  #include <deal.II/lac/sparse_matrix.h>
  #include <deal.II/lac/solver_cg.h>
  #include <deal.II/lac/precondition.h>
  #include <deal.II/grid/grid_out.h>
  #include <deal.II/grid/manifold_lib.h>
  #include <deal.II/grid/tria.h>
  #include <deal.II/grid/grid_generator.h>
  #include <deal.II/grid/grid_refinement.h>
  #include <deal.II/grid/grid_tools.h>
  #include <deal.II/grid/tria_accessor.h>
  #include <deal.II/grid/tria_iterator.h>
  #include <deal.II/dofs/dof_handler.h>
  #include <deal.II/dofs/dof_accessor.h>
  #include <deal.II/dofs/dof_tools.h>
  #include <deal.II/fe/fe_values.h>
  #include <deal.II/fe/fe_system.h>
  #include <deal.II/fe/fe_q.h>
  #include <deal.II/numerics/vector_tools.h>
  #include <deal.II/numerics/matrix_tools.h>
  #include <deal.II/numerics/data_out.h>
  #include <deal.II/numerics/error_estimator.h>
  #include <deal.II/physics/transformations.h>

  #include <fstream>
  #include <iostream>
  #include <vector>

  namespace LMM
  {
  using namespace dealii;

const ::Triangulation< dim, spacedim > & tria

Run-time parameters

There are several parameters that can be set in the code so we set up a ParameterHandler object to read in the choices at run-time.

  namespace Parameters
  {

Finite Element system

Here we specify the polynomial order used to approximate the solution. The quadrature order should be adjusted accordingly.

  struct FESystem
  {
  unsigned int poly_degree;
  unsigned int quad_order;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void FESystem::declare_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Finite element system");
  {
  prm.declare_entry("Polynomial degree", "1",
  "Displacement system polynomial order");

  prm.declare_entry("Quadrature order", "2",
  "Gauss quadrature order");
  }
  }

  void FESystem::parse_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Finite element system");
  {
  poly_degree = prm.get_integer("Polynomial degree");
  quad_order = prm.get_integer("Quadrature order");
  }
  }

long int get_integer(const std::string &entry_string) const
void declare_entry(const std::string &entry, const std::string &default_value, const Patterns::PatternBase &pattern=Patterns::Anything(), const std::string &documentation="", const bool has_to_be_set=false)
void enter_subsection(const std::string &subsection)

Problem

Choose which problem is going to be solved

  struct Problem
  {
  std::string problem;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void Problem::declare_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Problem");
  {
  prm.declare_entry("Problem", "IsotonicContraction",
  Patterns::Selection("IsotonicContraction|BicepsBrachii"),
  "The problem that is to be solved");
  }
  }

  void Problem::parse_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Problem");
  {
  problem = prm.get("Problem");
  }
  }

std::string get(const std::string &entry_string) const

IsotonicContractionGeometry

Make adjustments to the geometry and discretisation of the isotonic contraction model from Martins2006.

  struct IsotonicContraction
  {
  const double half_length_x = 10e-3/2.0;
  const double half_length_y = 10e-3/2.0;
  const double half_length_z = 1e-3/2.0;
  const types::boundary_id bid_CC_dirichlet_symm_X = 1;
  const types::boundary_id bid_CC_dirichlet_symm_Z = 2;
  const types::boundary_id bid_CC_neumann = 10;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void IsotonicContraction::declare_parameters(ParameterHandler &/*prm*/)
  {

  }

  void IsotonicContraction::parse_parameters(ParameterHandler &/*prm*/)
  {

  }


BicepsBrachiiGeometry

Make adjustments to the geometry and discretisation of the biceps model.

  struct BicepsBrachii
  {
  double axial_length;
  double radius_insertion_origin;
  double radius_midpoint;
  double scale;
  unsigned int elements_along_axis;
  unsigned int n_refinements_radial;
  bool include_gravity;
  double axial_force;

  const types::boundary_id bid_BB_dirichlet_X = 1;
  const types::boundary_id bid_BB_neumann = 10;
  const types::boundary_id mid_BB_radial = 100;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void BicepsBrachii::declare_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Biceps Brachii geometry");
  {
  prm.declare_entry("Axial length", "250",
  "Axial length of the muscle");

  prm.declare_entry("Radius insertion and origin", "5",
  "Insertion and origin radius");

  prm.declare_entry("Radius midpoint", "7.5",
  "Radius at the midpoint of the muscle");

  prm.declare_entry("Grid scale", "1e-3",
  "Global grid scaling factor");

  prm.declare_entry("Elements along axis", "32",
  "Number of elements along the muscle axis");

  prm.declare_entry("Radial refinements", "4",
  "Control the discretisation in the radial direction");

  prm.declare_entry("Gravity", "false",
  "Include the effects of gravity (in the y-direction; "
  " perpendicular to the muscle axis)");

  prm.declare_entry("Axial force", "1",
  "Applied distributed axial force (in Newtons)");
  }
  }

  void BicepsBrachii::parse_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Biceps Brachii geometry");
  {
  axial_length = prm.get_double("Axial length");
  radius_insertion_origin = prm.get_double("Radius insertion and origin");
  radius_midpoint = prm.get_double("Radius midpoint");
  scale = prm.get_double("Grid scale");
  elements_along_axis = prm.get_integer("Elements along axis");
  n_refinements_radial = prm.get_integer("Radial refinements");
  include_gravity = prm.get_bool("Gravity");
  axial_force = prm.get_double("Axial force");
  }

  AssertThrow(radius_midpoint >= radius_insertion_origin,
  ExcMessage("Unrealistic geometry"));
  }

bool get_bool(const std::string &entry_name) const
double get_double(const std::string &entry_name) const
#define AssertThrow(cond, exc)
void scale(const double scaling_factor, Triangulation< dim, spacedim > &triangulation)

Neurological signal

  struct NeurologicalSignal
  {
  double neural_signal_start_time;
  double neural_signal_end_time;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void NeurologicalSignal::declare_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Neurological signal");
  {
  prm.declare_entry("Start time", "1.0",
  "Time at which to start muscle activation");

  prm.declare_entry("End time", "2.0",
  "Time at which to remove muscle activation signal");
  }
  }

  void NeurologicalSignal::parse_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Neurological signal");
  {
  neural_signal_start_time = prm.get_double("Start time");
  neural_signal_end_time = prm.get_double("End time");
  }

  Assert(neural_signal_start_time < neural_signal_end_time,
  ExcMessage("Invalid neural signal times."));
  }

#define Assert(cond, exc)

Time

Set the timestep size \( \varDelta t \) and the simulation end-time.

  struct Time
  {
  double delta_t;
  double end_time;
  double end_ramp_time;

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  void Time::declare_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Time");
  {
  prm.declare_entry("End time", "3",
  "End time");

  prm.declare_entry("End ramp time", "1",
  "Force ramp end time");

  prm.declare_entry("Time step size", "0.1",
  "Time step size");
  }
  }

  void Time::parse_parameters(ParameterHandler &prm)
  {
  prm.enter_subsection("Time");
  {
  end_time = prm.get_double("End time");
  end_ramp_time = prm.get_double("End ramp time");
  delta_t = prm.get_double("Time step size");
  }
  }


All parameters

Finally we consolidate all of the above structures into a single container that holds all of our run-time selections.

  struct AllParameters : public FESystem,
  public Problem,
  public IsotonicContraction,
  public BicepsBrachii,
  public NeurologicalSignal,
  public Time
  {
  AllParameters(const std::string &input_file);

  static void
  declare_parameters(ParameterHandler &prm);

  void
  parse_parameters(ParameterHandler &prm);
  };

  AllParameters::AllParameters(const std::string &input_file)
  {
  declare_parameters(prm);
  prm.parse_input(input_file);
  parse_parameters(prm);
  }

  void AllParameters::declare_parameters(ParameterHandler &prm)
  {
  FESystem::declare_parameters(prm);
  Problem::declare_parameters(prm);
  IsotonicContraction::declare_parameters(prm);
  BicepsBrachii::declare_parameters(prm);
  NeurologicalSignal::declare_parameters(prm);
  Time::declare_parameters(prm);
  }

  void AllParameters::parse_parameters(ParameterHandler &prm)
  {
  FESystem::parse_parameters(prm);
  Problem::parse_parameters(prm);
  IsotonicContraction::parse_parameters(prm);
  BicepsBrachii::parse_parameters(prm);
  NeurologicalSignal::parse_parameters(prm);
  Time::parse_parameters(prm);


Override time setting for test defined in the literature

  if (problem == "IsotonicContraction")
  {
  end_time = 3.0;
  end_ramp_time = 1.0;
  delta_t = 0.1;

  neural_signal_start_time = 1.0;
  neural_signal_end_time = 2.0;
  }
  }
  }


Body force values

  template <int dim>
  class BodyForce : public Function<dim>
  {
  public:
  BodyForce (const double rho,
  const Tensor<1,dim> direction);
  virtual ~BodyForce () {}

  virtual void vector_value (const Point<dim> &p,
  Vector<double> &values) const override;

  virtual void vector_value_list (const std::vector<Point<dim> > &points,
  std::vector<Vector<double> > &value_list) const override;

  const double rho;
  const double g;
  const Tensor<1,dim> M;
  };


  template <int dim>
  BodyForce<dim>::BodyForce (const double rho,
  const Tensor<1,dim> direction)
  :
  Function<dim> (dim),
  rho (rho),
  g (9.81),
  M (direction)
  {
  Assert(M.norm() == 1.0, ExcMessage("Direction vector is not a unit vector"));
  }


  template <int dim>
  inline
  void BodyForce<dim>::vector_value (const Point<dim> &/*p*/,
  Vector<double> &values) const
  {
  Assert (values.size() == dim,
  ExcDimensionMismatch (values.size(), dim));
  Assert (dim >= 2, ExcNotImplemented());
  for (unsigned int d=0; d<dim; ++d)
  {
  values(d) = rho*g*M[d];
  }
  }


  template <int dim>
  void BodyForce<dim>::vector_value_list (const std::vector<Point<dim> > &points,
  std::vector<Vector<double> > &value_list) const
  {
  Assert (value_list.size() == points.size(),
  ExcDimensionMismatch (value_list.size(), points.size()));

  const unsigned int n_points = points.size();

  for (unsigned int p=0; p<n_points; ++p)
  BodyForce<dim>::vector_value (points[p],
  value_list[p]);
  }

  template <int dim>
  class Traction : public Function<dim>
  {
  public:
  Traction (const double force,
  const double area);
  virtual ~Traction () {}

  virtual void vector_value (const Point<dim> &p,
  Vector<double> &values) const override;

  virtual void vector_value_list (const std::vector<Point<dim> > &points,
  std::vector<Vector<double> > &value_list) const override;

  const double t;
  };


  template <int dim>
  Traction<dim>::Traction (const double force,
  const double area)
  :
  Function<dim> (dim),
  t (force/area)
  {}


  template <int dim>
  inline
  void Traction<dim>::vector_value (const Point<dim> &/*p*/,
  Vector<double> &values) const
  {
  Assert (values.size() == dim,
  ExcDimensionMismatch (values.size(), dim));
  Assert (dim == 3, ExcNotImplemented());

virtual void vector_value_list(const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const
virtual void vector_value(const Point< dim > &p, Vector< RangeNumberType > &values) const
Definition point.h:112
double norm(const FEValuesBase< dim > &fe, const ArrayView< const std::vector< Tensor< 1, dim > > > &Du)
Definition divergence.h:472
SymmetricTensor< 2, dim, Number > d(const Tensor< 2, dim, Number > &F, const Tensor< 2, dim, Number > &dF_dt)

Assume uniform distributed load

  values(0) = t;
  values(1) = 0.0;
  values(2) = 0.0;
  }


  template <int dim>
  void Traction<dim>::vector_value_list (const std::vector<Point<dim> > &points,
  std::vector<Vector<double> > &value_list) const
  {
  Assert (value_list.size() == points.size(),
  ExcDimensionMismatch (value_list.size(), points.size()));

  const unsigned int n_points = points.size();

  for (unsigned int p=0; p<n_points; ++p)
  Traction<dim>::vector_value (points[p],
  value_list[p]);
  }


Utility functions

  template <int dim>
  inline
  Tensor<2,dim> get_deformation_gradient (std::vector<Tensor<1,dim> > &grad)
  {
  Assert (grad.size() == dim, ExcInternalError());

  Tensor<2,dim> F (unit_symmetric_tensor<dim>());
  for (unsigned int i=0; i<dim; ++i)
  for (unsigned int j=0; j<dim; ++j)
  F[i][j] += grad[i][j];
  return F;
  }

  template <int dim>
  inline
  SymmetricTensor<2,dim> get_small_strain (std::vector<Tensor<1,dim> > &grad)
  {
  Assert (grad.size() == dim, ExcInternalError());

  for (unsigned int i=0; i<dim; ++i)
  strain[i][i] = grad[i][i];

  for (unsigned int i=0; i<dim; ++i)
  for (unsigned int j=i+1; j<dim; ++j)
  strain[i][j] = (grad[i][j] + grad[j][i]) / 2;
  return strain;
  }


Properties for muscle matrix

  struct MuscleMatrix
  {
  static const double E; // Young's modulus
  static const double nu; // Poisson ratio

  static const double mu; // Shear modulus
  static const double lambda; // Lame parameter
  };

  const double MuscleMatrix::E = 26e3;
  const double MuscleMatrix::nu = 0.45;
  const double MuscleMatrix::mu = MuscleMatrix::E/(2.0*(1.0 + MuscleMatrix::nu));
  const double MuscleMatrix::lambda = 2.0*MuscleMatrix::mu *MuscleMatrix::nu/(1.0 - 2.0*MuscleMatrix::nu);


Local data for muscle fibres

  #define convert_gf_to_N 1.0/101.97
  #define convert_gf_per_cm2_to_N_per_m2 convert_gf_to_N*1e2*1e2
  #define T0 6280.0*convert_gf_per_cm2_to_N_per_m2


A struct that governs the functioning of a single muscle fibre

  template <int dim>
  struct MuscleFibre
  {
  MuscleFibre (void)
  : alpha (0.0),
  alpha_t1 (0.0),
  epsilon_f (0.0),
  epsilon_c (0.0),
  epsilon_c_t1 (0.0),
  epsilon_c_dot (0.0)
  {

  }

  MuscleFibre(const Tensor<1,dim> &direction)
  : M (direction),
  alpha (0.0),
  alpha_t1 (0.0),
  epsilon_f (0.0),
  epsilon_c (0.0),
  epsilon_c_t1 (0.0),
  epsilon_c_dot (0.0)
  {
  Assert(M.norm() == 1.0,
  ExcMessage("Fibre direction is not a unit vector"));
  }

  void update_alpha (const double u,
  const double dt);

  void update_state(const SymmetricTensor<2,dim> &strain_tensor,
  const double dt);

  const Tensor<1,dim> &get_M () const
  {
  return M;
  }
  double get_m_p () const;
  double get_m_s () const;
  double get_beta (const double dt) const;
  double get_gamma (const double dt) const;


Postprocessing

  const double &get_alpha() const
  {
  return alpha;
  }
  const double &get_epsilon_f() const
  {
  return epsilon_f;
  }
  const double &get_epsilon_c() const
  {
  return epsilon_c;
  }
  const double &get_epsilon_c_dot() const
  {
  return epsilon_c_dot;
  }

  private:
  Tensor<1,dim> M; // Direction

  double alpha; // Activation level at current timestep
  double alpha_t1; // Activation level at previous timestep

  double epsilon_f; // Fibre strain at current timestep
  double epsilon_c; // Contractile strain at current timestep
  double epsilon_c_t1; // Contractile strain at previous timestep
  double epsilon_c_dot; // Contractile velocity at previous timestep

  double get_f_c_L () const;
  double get_m_c_V () const;
  double get_c_c_V () const;
  };

  template <int dim>
  void MuscleFibre<dim>::update_alpha (const double u,
  const double dt)
  {
  static const double tau_r = 0.15; // s
  static const double tau_f = 0.15; // s
  static const double alpha_min = 0;

  if (u == 1.0)
  alpha = (alpha_t1*tau_r*tau_f + dt*tau_f) / (tau_r*tau_f + dt*tau_f);
  else if (u == 0)
  alpha = (alpha_t1*tau_r*tau_f + dt*alpha_min*tau_r) / (tau_r*tau_f + dt*tau_r);
  else
  {
  const double b = 1.0/tau_r - 1.0/tau_f;
  const double c = 1.0/tau_f;
  const double d = alpha_min/tau_f;
  const double f1 = 1.0/tau_r - alpha_min/tau_f;
  const double p = b*u + c;
  const double q = f1*u + d;

  alpha = (q*dt + alpha_t1)/(1.0 + p*dt);
  }
  }


  template <int dim>
  double MuscleFibre<dim>::get_m_p () const
  {
  static const double A = 8.568e-4*convert_gf_per_cm2_to_N_per_m2;
  static const double a = 12.43;
  if (epsilon_f >= 0.0)
  {
SymmetricTensor< 2, dim, Number > b(const Tensor< 2, dim, Number > &F)

100 times more compliant than Martins2006

  static const double m_p = 2.0*A*a/1e2;
  return m_p;
  }
  else
  return 0.0;
  }

  template <int dim>
  double MuscleFibre<dim>::get_m_s (void) const
  {
  const double epsilon_s = epsilon_f - epsilon_c; // Small strain assumption
  if (epsilon_s >= -1e-6) // Tolerant check
  return 10.0;
  else
  return 0.0;
  }

  template <int dim>
  double MuscleFibre<dim>::get_f_c_L (void) const
  {
  if (epsilon_c <= 0.5 && epsilon_c >= -0.5)
  return 1.0;
  else
  return 0.0;
  }

  template <int dim>
  double MuscleFibre<dim>::get_m_c_V (void) const
  {
  if (epsilon_c_dot < -5.0)
  return 0.0;
  else if (epsilon_c_dot <= 3.0)
  return 1.0/5.0;
  else
  return 0.0;
  }

  template <int dim>
  double MuscleFibre<dim>::get_c_c_V (void) const
  {
  if (epsilon_c_dot < -5.0)
  return 0.0;
  else if (epsilon_c_dot <= 3.0)
  return 1.0;
  else
  return 1.6;
  }

  template <int dim>
  double MuscleFibre<dim>::get_beta(const double dt) const
  {
  return get_f_c_L()*get_m_c_V()*alpha/dt + get_m_s();
  }

  template <int dim>
  double MuscleFibre<dim>::get_gamma(const double dt) const
  {
  return get_f_c_L()*alpha*(get_m_c_V()*epsilon_c_t1/dt - get_c_c_V());
  }

  template <int dim>
  void MuscleFibre<dim>::update_state(const SymmetricTensor<2,dim> &strain_tensor,
  const double dt)
  {

Values from previous state These were the values that were used in the assembly, so we must use them in the update step to be consistant. Need to compute these before we overwrite epsilon_c_t1

  const double m_s = get_m_s();
  const double beta = get_beta(dt);
  const double gamma = get_gamma(dt);


Update current state

  alpha_t1 = alpha;
  epsilon_f = M*static_cast< Tensor<2,dim> >(strain_tensor)*M;
  epsilon_c_t1 = epsilon_c;
  epsilon_c = (m_s*epsilon_f + gamma)/beta;
  epsilon_c_dot = (epsilon_c - epsilon_c_t1)/dt;
  }



The LinearMuscleModelProblem class template

  template <int dim>
  class LinearMuscleModelProblem
  {
  public:
  LinearMuscleModelProblem (const std::string &input_file);
  ~LinearMuscleModelProblem ();
  void run ();

  private:
  void make_grid ();
  void setup_muscle_fibres ();
  double get_neural_signal (const double time);
  void update_fibre_activation (const double time);
  void update_fibre_state ();
  void setup_system ();
  void assemble_system (const double time);
  void apply_boundary_conditions ();
  void solve ();
  void output_results (const unsigned int timestep,
  const double time) const;

  Parameters::AllParameters parameters;

  DoFHandler<dim> dof_handler;

  QGauss<dim> qf_cell;
  QGauss<dim-1> qf_face;

  AffineConstraints<double> hanging_node_constraints;

  SparsityPattern sparsity_pattern;
  SparseMatrix<double> system_matrix;

  Vector<double> solution;
  Vector<double> system_rhs;

const ::parallel::distributed::Triangulation< dim, spacedim > * triangulation

Time

  const double t_end;
  const double dt;
  const double t_ramp_end; // Force ramp end time


Loading

  const BodyForce<dim> body_force;
  const Traction<dim> traction;


Local data

  std::vector< std::vector<MuscleFibre<dim> > > fibre_data;


Constitutive functions for assembly

  SymmetricTensor<4,dim> get_stiffness_tensor (const unsigned int cell,
  const unsigned int q_point_cell) const;
  SymmetricTensor<2,dim> get_rhs_tensor (const unsigned int cell,
  const unsigned int q_point_cell) const;
  };


LinearMuscleModelProblem::LinearMuscleModelProblem

  template <int dim>
  LinearMuscleModelProblem<dim>::LinearMuscleModelProblem (const std::string &input_file)
  :
  parameters(input_file),
  dof_handler (triangulation),
  fe (FE_Q<dim>(parameters.poly_degree), dim),
  qf_cell (parameters.quad_order),
  qf_face (parameters.quad_order),
  t_end (parameters.end_time),
  dt (parameters.delta_t),
  t_ramp_end(parameters.end_ramp_time),
  body_force ((parameters.problem == "BicepsBrachii" &&parameters.include_gravity == true) ?
  BodyForce<dim>(0.375*1000.0, Tensor<1,dim>({0,-1,0})) : // (reduced) Density and direction
  BodyForce<dim>(0.0, Tensor<1,dim>({0,0,1})) ),
  traction (parameters.problem == "BicepsBrachii" ?
  Traction<dim>(parameters.axial_force, // Force, area
  M_PI*std::pow(parameters.radius_insertion_origin *parameters.scale,2.0) ) :
  Traction<dim>(4.9*convert_gf_to_N, // Force; Conversion of gf to N,
  (2.0*parameters.half_length_y)*(2.0*parameters.half_length_z)) ) // Area
  {
  Assert(dim==3, ExcNotImplemented());
  }


Definition fe_q.h:551
::VectorizedArray< Number, width > pow(const ::VectorizedArray< Number, width > &, const Number p)

LinearMuscleModelProblem::~LinearMuscleModelProblem

  template <int dim>
  LinearMuscleModelProblem<dim>::~LinearMuscleModelProblem ()
  {
  dof_handler.clear ();
  }



LinearMuscleModelProblem::make_grid

  template<int dim>
  struct BicepsGeometry
  {
  BicepsGeometry(const double axial_length,
  const double radius_ins_orig,
  const double radius_mid)
  :
  ax_lgth (axial_length),
  r_ins_orig (radius_ins_orig),
  r_mid (radius_mid)
  {}


The radial profile of the muscle This provides the new coordinates for points pt on a cylinder of radius r_ins_orig and length ax_lgth to be moved to in order to create the physiologically representative geometry of the muscle

  Point<dim> profile (const Point<dim> &pt_0) const
  {
  Assert(pt_0[0] > -1e-6,
  ExcMessage("All points must have x-coordinate > 0"));

  const double r_scale = get_radial_scaling_factor(pt_0[0]);
  return pt_0 + Point<dim>(0.0, r_scale*pt_0[1], r_scale*pt_0[2]);
  }

  Point<dim> operator() (const Point<dim> &pt) const
  {
  return profile(pt);
  }


Provides the muscle direction at the point pt in the real geometry (one that has undergone the transformation given by the profile() function) and subequent grid rescaling. The directions are given by the gradient of the transformation function (i.e. the fibres are orientated by the curvature of the muscle).

So, being lazy, we transform the current point back to the original point on the completely unscaled cylindrical grid. We then evaluate the transformation at two points (axially displaced) very close to the point of interest. The normalised vector joining the transformed counterparts of the perturbed points is the gradient of the transformation function and, thus, defines the fibre direction.

  Tensor<1,dim> direction (const Point<dim> &pt_scaled,
  const double &grid_scale) const
  {
  const Point<dim> pt = (1.0/grid_scale)*pt_scaled;
  const Point<dim> pt_0 = inv_profile(pt);

  static const double eps = 1e-6;
  const Point<dim> pt_0_eps_p = pt_0 + Point<dim>(+eps,0,0);
  const Point<dim> pt_0_eps_m = pt_0 + Point<dim>(-eps,0,0);
  const Point<dim> pt_eps_p = profile(pt_0_eps_p);
  const Point<dim> pt_eps_m = profile(pt_0_eps_m);

  static const double tol = 1e-9;
  (void)tol;
  Assert(profile(pt_0).distance(pt) < tol, ExcInternalError());
  Assert(inv_profile(pt_eps_p).distance(pt_0_eps_p) < tol, ExcInternalError());
  Assert(inv_profile(pt_eps_m).distance(pt_0_eps_m) < tol, ExcInternalError());

  Tensor<1,dim> dir = pt_eps_p-pt_eps_m;
  dir /= dir.norm();
  return dir;
  }

  private:
  const double ax_lgth;
  const double r_ins_orig;
  const double r_mid;

  double get_radial_scaling_factor (const double &x) const
  {
numbers::NumberTraits< Number >::real_type norm() const

Expect all grid points with X>=0, but we provide a tolerant location for points "on" the Cartesian plane X=0

  const double lgth_frac = std::max(x/ax_lgth,0.0);
  const double amplitude = 0.25*(r_mid - r_ins_orig);
  const double phase_shift = M_PI;
  const double y_shift = 1.0;
  const double wave_func = y_shift + std::cos(phase_shift + 2.0*M_PI*lgth_frac);
  Assert(wave_func >= 0.0, ExcInternalError());
  return std::sqrt(amplitude*wave_func);
  }

  Point<dim> inv_profile (const Point<dim> &pt) const
  {
  Assert(pt[0] > -1e-6,
  ExcMessage("All points must have x-coordinate > 0"));

  const double r_scale = get_radial_scaling_factor(pt[0]);
  const double trans_inv_scale = 1.0/(1.0+r_scale);
  return Point<dim>(pt[0], trans_inv_scale*pt[1], trans_inv_scale*pt[2]);
  }
  };

  template <int dim>
  void LinearMuscleModelProblem<dim>::make_grid ()
  {
  Assert (dim == 3, ExcNotImplemented());

  if (parameters.problem == "IsotonicContraction")
  {
  const Point<dim> p1(-parameters.half_length_x,
  -parameters.half_length_y,
  -parameters.half_length_z);
  const Point<dim> p2( parameters.half_length_x,
  parameters.half_length_y,
  parameters.half_length_z);


  triangulation.begin_active(), endc = triangulation.end();
  for (; cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {
  if (cell->face(face)->at_boundary() == true)
  {
  if (cell->face(face)->center()[0] == -parameters.half_length_x) // -X oriented face
  cell->face(face)->set_boundary_id(parameters.bid_CC_dirichlet_symm_X); // Dirichlet
  else if (cell->face(face)->center()[0] == parameters.half_length_x) // +X oriented face
  cell->face(face)->set_boundary_id(parameters.bid_CC_neumann); // Neumann
  else if (std::abs(cell->face(face)->center()[2]) == parameters.half_length_z) // -Z/+Z oriented face
  cell->face(face)->set_boundary_id(parameters.bid_CC_dirichlet_symm_Z); // Dirichlet
  }
  }
  }

  triangulation.refine_global (1);
  }
  else if (parameters.problem == "BicepsBrachii")
  {
  SphericalManifold<2> manifold_cap;
  Triangulation<2> tria_cap;
  Point<2>(),
  parameters.radius_insertion_origin);
  cell = tria_cap.begin_active();
  cell != tria_cap.end(); ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<2>::faces_per_cell; ++face)
  {
  if (cell->face(face)->at_boundary() == true)
  cell->face(face)->set_all_manifold_ids(0);
  }
  }
  tria_cap.set_manifold (0, manifold_cap);
  tria_cap.refine_global(parameters.n_refinements_radial);

  Triangulation<2> tria_cap_flat;
  GridGenerator::flatten_triangulation(tria_cap, tria_cap_flat);

  parameters.elements_along_axis,
  parameters.axial_length,

  struct GridRotate
  {
  Point<dim> operator() (const Point<dim> &in) const
  {
  return Point<dim>(rot_mat*in);
  }
  };

void hyper_ball(Triangulation< dim > &tria, const Point< dim > &center=Point< dim >(), const double radius=1., const bool attach_spherical_manifold_on_boundary_cells=false)
void hyper_rectangle(Triangulation< dim, spacedim > &tria, const Point< dim > &p1, const Point< dim > &p2, const bool colorize=false)
void extrude_triangulation(const Triangulation< 2, 2 > &input, const unsigned int n_slices, const double height, Triangulation< 3, 3 > &result, const bool copy_manifold_ids=false, const std::vector< types::manifold_id > &manifold_priorities={})
void flatten_triangulation(const Triangulation< dim, spacedim1 > &in_tria, Triangulation< dim, spacedim2 > &out_tria)
Tensor< 2, 3, Number > rotation_matrix_3d(const Tensor< 1, 3, Number > &axis, const Number &angle)
::VectorizedArray< Number, width > max(const ::VectorizedArray< Number, width > &, const ::VectorizedArray< Number, width > &)
::VectorizedArray< Number, width > cos(const ::VectorizedArray< Number, width > &)
::VectorizedArray< Number, width > sqrt(const ::VectorizedArray< Number, width > &)
::VectorizedArray< Number, width > abs(const ::VectorizedArray< Number, width > &)

Rotate grid so that the length is axially coincident and aligned with the X-axis


void transform(const Transformation &transformation, Triangulation< dim, spacedim > &triangulation)

Deform the grid into something that vaguely resemble's a Biceps Brachii

  GridTools::transform (BicepsGeometry<dim>(parameters.axial_length,
  parameters.radius_insertion_origin,
  parameters.radius_midpoint), triangulation);


Set boundary IDs

  triangulation.begin_active(), endc = triangulation.end();
  for (; cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {
  if (cell->face(face)->at_boundary() == true)
  {
  static const double tol =1e-6;
  if (std::abs(cell->face(face)->center()[0]) < tol) // -X oriented face
  cell->face(face)->set_boundary_id(parameters.bid_BB_dirichlet_X); // Dirichlet
  else if (std::abs(cell->face(face)->center()[0] - parameters.axial_length) < tol) // +X oriented face
  cell->face(face)->set_boundary_id(parameters.bid_BB_neumann); // Neumann
  }
  }
  }


Finally resize the grid

  GridTools::scale (parameters.scale, triangulation);
  }
  else
  AssertThrow(false, ExcNotImplemented());
  }


LinearMuscleModelProblem::setup_muscle_fibres

  template <int dim>
  void LinearMuscleModelProblem<dim>::setup_muscle_fibres ()
  {
  fibre_data.clear();
  const unsigned int n_cells = triangulation.n_active_cells();
  fibre_data.resize(n_cells);
  const unsigned int n_q_points_cell = qf_cell.size();

  if (parameters.problem == "IsotonicContraction")
  {
  MuscleFibre<dim> fibre_template (Tensor<1,dim>({1,0,0}));

  for (unsigned int cell_no=0; cell_no<triangulation.n_active_cells(); ++cell_no)
  {
  fibre_data[cell_no].resize(n_q_points_cell);
  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell)
  {
  fibre_data[cell_no][q_point_cell] = fibre_template;
  }
  }
  }
  else if (parameters.problem == "BicepsBrachii")
  {
  FEValues<dim> fe_values (fe, qf_cell, update_quadrature_points);
  BicepsGeometry<dim> bicep_geom (parameters.axial_length,
  parameters.radius_insertion_origin,
  parameters.radius_midpoint);

  unsigned int cell_no = 0;
  cell = triangulation.begin_active();
  cell != triangulation.end();
  ++cell, ++cell_no)
  {
  Assert(cell_no<fibre_data.size(), ExcMessage("Trying to access fibre data not stored for this cell index"));
  fe_values.reinit(cell);

  fibre_data[cell_no].resize(n_q_points_cell);
  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell)
  {
  const Point<dim> pt = fe_values.get_quadrature_points()[q_point_cell];
  fibre_data[cell_no][q_point_cell] = MuscleFibre<dim>(bicep_geom.direction(pt,parameters.scale));
  }
  }
  }
  else
  AssertThrow(false, ExcNotImplemented());
  }

@ update_quadrature_points
Transformed quadrature points.

LinearMuscleModelProblem::update_fibre_state

  template <int dim>
  double LinearMuscleModelProblem<dim>::get_neural_signal (const double time)
  {

Note: 40 times less force generated than Martins2006 This is necessary due to the (compliant) linear tissue model

  return (time > parameters.neural_signal_start_time && time < parameters.neural_signal_end_time ?
  1.0/40.0 :
  0.0);
  }

  template <int dim>
  void LinearMuscleModelProblem<dim>::update_fibre_activation (const double time)
  {
  const double u = get_neural_signal(time);

  const unsigned int n_q_points_cell = qf_cell.size();
  for (unsigned int cell=0; cell<triangulation.n_active_cells(); ++cell)
  {
  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell)
  {
  MuscleFibre<dim> &fibre = fibre_data[cell][q_point_cell];
  fibre.update_alpha(u,dt);
  }
  }
  }

  template <int dim>
  void LinearMuscleModelProblem<dim>::update_fibre_state ()
  {
  const unsigned int n_q_points_cell = qf_cell.size();

  FEValues<dim> fe_values (fe, qf_cell, update_gradients);

@ update_gradients
Shape function gradients.

Displacement gradient

  std::vector< std::vector< Tensor<1,dim> > > u_grads (n_q_points_cell,
  std::vector<Tensor<1,dim> >(dim));

  unsigned int cell_no = 0;
  cell = dof_handler.begin_active();
  cell!=dof_handler.end(); ++cell, ++cell_no)
  {
  Assert(cell_no<fibre_data.size(), ExcMessage("Trying to access fibre data not stored for this cell index"));
  fe_values.reinit(cell);
  fe_values.get_function_gradients (solution, u_grads);

  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell)
  {
  Assert(q_point_cell<fibre_data[cell_no].size(), ExcMessage("Trying to access fibre data not stored for this cell and qp index"));

  const SymmetricTensor<2,dim> strain_tensor = get_small_strain (u_grads[q_point_cell]);
  MuscleFibre<dim> &fibre = fibre_data[cell_no][q_point_cell];
  fibre.update_state(strain_tensor, dt);
  }
  }
  }

typename ActiveSelector::active_cell_iterator active_cell_iterator

LinearMuscleModelProblem::setup_system

  template <int dim>
  void LinearMuscleModelProblem<dim>::setup_system ()
  {
  dof_handler.distribute_dofs (fe);
  hanging_node_constraints.clear ();
  hanging_node_constraints);
  hanging_node_constraints.close ();
  sparsity_pattern.reinit (dof_handler.n_dofs(),
  dof_handler.n_dofs(),
  dof_handler.max_couplings_between_dofs());
  DoFTools::make_sparsity_pattern (dof_handler, sparsity_pattern);

  hanging_node_constraints.condense (sparsity_pattern);

  sparsity_pattern.compress();

  system_matrix.reinit (sparsity_pattern);

  solution.reinit (dof_handler.n_dofs());
  system_rhs.reinit (dof_handler.n_dofs());

  std::cout << " Number of active cells: "
  << triangulation.n_active_cells()
  << std::endl;

  std::cout << " Number of degrees of freedom: "
  << dof_handler.n_dofs()
  << std::endl;
  }

void make_hanging_node_constraints(const DoFHandler< dim, spacedim > &dof_handler, AffineConstraints< number > &constraints)
void make_sparsity_pattern(const DoFHandler< dim, spacedim > &dof_handler, SparsityPatternBase &sparsity_pattern, const AffineConstraints< number > &constraints=AffineConstraints< number >(), const bool keep_constrained_dofs=true, const types::subdomain_id subdomain_id=numbers::invalid_subdomain_id)

LinearMuscleModelProblem::assemble_system

  template <int dim>
  LinearMuscleModelProblem<dim>::get_stiffness_tensor (const unsigned int cell,
  const unsigned int q_point_cell) const
  {
  static const SymmetricTensor<2,dim> I = unit_symmetric_tensor<dim>();

  Assert(cell<fibre_data.size(), ExcMessage("Trying to access fibre data not stored for this cell index"));
  Assert(q_point_cell<fibre_data[cell].size(), ExcMessage("Trying to access fibre data not stored for this cell and qp index"));
  const MuscleFibre<dim> &fibre = fibre_data[cell][q_point_cell];


Matrix

  const double lambda = MuscleMatrix::lambda;
  const double mu = MuscleMatrix::mu;

Fibre

  const double m_p = fibre.get_m_p();
  const double m_s = fibre.get_m_s();
  const double beta = fibre.get_beta(dt);
  AssertThrow(beta != 0.0, ExcInternalError());
  const double Cf = T0*(m_p + m_s*(1.0 - m_s/beta));
  const Tensor<1,dim> &M = fibre.get_M();

  for (unsigned int i=0; i < dim; ++i)
  for (unsigned int j=i; j < dim; ++j)
  for (unsigned int k=0; k < dim; ++k)
  for (unsigned int l=k; l < dim; ++l)
  {

Matrix contribution

  C[i][j][k][l] = lambda * I[i][j]*I[k][l]
  + mu * (I[i][k]*I[j][l] + I[i][l]*I[j][k]);


Fibre contribution (Passive + active branches)

  C[i][j][k][l] += Cf * M[i]*M[j]*M[k]*M[l];
  }

  return C;
  }

  template <int dim>
  LinearMuscleModelProblem<dim>::get_rhs_tensor (const unsigned int cell,
  const unsigned int q_point_cell) const
  {
  Assert(cell<fibre_data.size(), ExcMessage("Trying to access fibre data not stored for this cell index"));
  Assert(q_point_cell<fibre_data[cell].size(), ExcMessage("Trying to access fibre data not stored for this cell and qp index"));
  const MuscleFibre<dim> &fibre = fibre_data[cell][q_point_cell];

  const double m_s = fibre.get_m_s();
  const double beta = fibre.get_beta(dt);
  const double gamma = fibre.get_gamma(dt);
  AssertThrow(beta != 0.0, ExcInternalError());
  const double Sf = T0*(m_s*gamma/beta);
  const Tensor<1,dim> &M = fibre.get_M();

  for (unsigned int i=0; i < dim; ++i)
  for (unsigned int j=i; j < dim; ++j)
  {
long double gamma(const unsigned int n)

Fibre contribution (Active branch)

  S[i][j] = Sf * M[i]*M[j];
  }

  return S;
  }


LinearMuscleModelProblem::assemble_system

  template <int dim>
  void LinearMuscleModelProblem<dim>::assemble_system (const double time)
  {

Reset system

  system_matrix = 0;
  system_rhs = 0;

  FEValues<dim> fe_values (fe, qf_cell,
  FEFaceValues<dim> fe_face_values (fe, qf_face,

  const unsigned int dofs_per_cell = fe.dofs_per_cell;
  const unsigned int n_q_points_cell = qf_cell.size();
  const unsigned int n_q_points_face = qf_face.size();

  FullMatrix<double> cell_matrix (dofs_per_cell, dofs_per_cell);
  Vector<double> cell_rhs (dofs_per_cell);

  std::vector<types::global_dof_index> local_dof_indices (dofs_per_cell);

@ update_values
Shape function values.
@ update_JxW_values
Transformed quadrature weights.

Loading

  std::vector<Vector<double> > body_force_values (n_q_points_cell,
  Vector<double>(dim));
  std::vector<Vector<double> > traction_values (n_q_points_face,
  Vector<double>(dim));

  unsigned int cell_no = 0;
  cell = dof_handler.begin_active();
  cell!=dof_handler.end(); ++cell, ++cell_no)
  {
  cell_matrix = 0;
  cell_rhs = 0;

  fe_values.reinit (cell);
  body_force.vector_value_list (fe_values.get_quadrature_points(),
  body_force_values);

  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell)
  {
  const SymmetricTensor<4,dim> C = get_stiffness_tensor (cell_no, q_point_cell);
  const SymmetricTensor<2,dim> R = get_rhs_tensor(cell_no, q_point_cell);

  for (unsigned int I=0; I<dofs_per_cell; ++I)
  {
  const unsigned int
  component_I = fe.system_to_component_index(I).first;

  for (unsigned int J=0; J<dofs_per_cell; ++J)
  {
  const unsigned int
  component_J = fe.system_to_component_index(J).first;

  for (unsigned int k=0; k < dim; ++k)
  for (unsigned int l=0; l < dim; ++l)
  cell_matrix(I,J)
  += (fe_values.shape_grad(I,q_point_cell)[k] *
  C[component_I][k][component_J][l] *
  fe_values.shape_grad(J,q_point_cell)[l]) *
  fe_values.JxW(q_point_cell);
  }
  }

  for (unsigned int I=0; I<dofs_per_cell; ++I)
  {
  const unsigned int
  component_I = fe.system_to_component_index(I).first;

  cell_rhs(I)
  += fe_values.shape_value(I,q_point_cell) *
  body_force_values[q_point_cell](component_I) *
  fe_values.JxW(q_point_cell);

  for (unsigned int k=0; k < dim; ++k)
  cell_rhs(I)
  += (fe_values.shape_grad(I,q_point_cell)[k] *
  R[component_I][k]) *
  fe_values.JxW(q_point_cell);
  }
  }

  for (unsigned int face = 0; face <GeometryInfo<dim>::faces_per_cell; ++face)
  {
  if (cell->face(face)->at_boundary() == true &&
  ((parameters.problem == "IsotonicContraction" &&
  cell->face(face)->boundary_id() == parameters.bid_CC_neumann) ||
  (parameters.problem == "BicepsBrachii" &&
  cell->face(face)->boundary_id() == parameters.bid_BB_neumann)) )
  {
  fe_face_values.reinit(cell, face);
  traction.vector_value_list (fe_face_values.get_quadrature_points(),
  traction_values);


Scale applied traction according to time

  const double ramp = (time <= t_ramp_end ? time/t_ramp_end : 1.0);
  Assert(ramp >= 0.0 && ramp <= 1.0, ExcMessage("Invalid force ramp"));
  for (unsigned int q_point_face = 0; q_point_face < n_q_points_face; ++q_point_face)
  traction_values[q_point_face] *= ramp;

  for (unsigned int q_point_face = 0; q_point_face < n_q_points_face; ++q_point_face)
  {
  for (unsigned int I=0; I<dofs_per_cell; ++I)
  {
  const unsigned int
  component_I = fe.system_to_component_index(I).first;

  cell_rhs(I)
  += fe_face_values.shape_value(I,q_point_face)*
  traction_values[q_point_face][component_I]*
  fe_face_values.JxW(q_point_face);
  }
  }
  }
  }

  cell->get_dof_indices (local_dof_indices);
  for (unsigned int i=0; i<dofs_per_cell; ++i)
  {
  for (unsigned int j=0; j<dofs_per_cell; ++j)
  system_matrix.add (local_dof_indices[i],
  local_dof_indices[j],
  cell_matrix(i,j));

  system_rhs(local_dof_indices[i]) += cell_rhs(i);
  }
  }

  hanging_node_constraints.condense (system_matrix);
  hanging_node_constraints.condense (system_rhs);
  }

  template <int dim>
  void LinearMuscleModelProblem<dim>::apply_boundary_conditions ()
  {
  std::map<types::global_dof_index,double> boundary_values;

  if (parameters.problem == "IsotonicContraction")
  {
void cell_matrix(FullMatrix< double > &M, const FEValuesBase< dim > &fe, const FEValuesBase< dim > &fetest, const ArrayView< const std::vector< double > > &velocity, const double factor=1.)
Definition advection.h:75

Symmetry condition on -X faces

  {
  ComponentMask component_mask_x (dim, false);
  component_mask_x.set(0, true);
  parameters.bid_CC_dirichlet_symm_X,
  boundary_values,
  component_mask_x);
  }
void interpolate_boundary_values(const Mapping< dim, spacedim > &mapping, const DoFHandler< dim, spacedim > &dof, const std::map< types::boundary_id, const Function< spacedim, number > * > &function_map, std::map< types::global_dof_index, number > &boundary_values, const ComponentMask &component_mask=ComponentMask())

Symmetry condition on -Z/+Z faces

  {
  ComponentMask component_mask_z (dim, false);
  component_mask_z.set(2, true);
  parameters.bid_CC_dirichlet_symm_Z,
  boundary_values,
  component_mask_z);
  }

Fixed point on -X face

  {
  const Point<dim> fixed_point (-parameters.half_length_x,0.0,0.0);
  std::vector<types::global_dof_index> fixed_dof_indices;
  bool found_point_of_interest = false;

  cell = dof_handler.begin_active(),
  endc = dof_handler.end(); cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {

We know that the fixed point is on the -X Dirichlet boundary

  if (cell->face(face)->at_boundary() == true &&
  cell->face(face)->boundary_id() == parameters.bid_CC_dirichlet_symm_X)
  {
  for (unsigned int face_vertex_index = 0; face_vertex_index < GeometryInfo<dim>::vertices_per_face; ++face_vertex_index)
  {
  if (cell->face(face)->vertex(face_vertex_index).distance(fixed_point) < 1e-6)
  {
  found_point_of_interest = true;
  for (unsigned int index_component = 0; index_component < dim; ++index_component)
  fixed_dof_indices.push_back(cell->face(face)->vertex_dof_index(face_vertex_index,
  index_component));
  }

  if (found_point_of_interest == true) break;
  }
  }
  if (found_point_of_interest == true) break;
  }
  if (found_point_of_interest == true) break;
  }

  Assert(found_point_of_interest == true, ExcMessage("Didn't find point of interest"));
  AssertThrow(fixed_dof_indices.size() == dim, ExcMessage("Didn't find the correct number of DoFs to fix"));

  for (unsigned int i=0; i < fixed_dof_indices.size(); ++i)
  boundary_values[fixed_dof_indices[i]] = 0.0;
  }
  }
  else if (parameters.problem == "BicepsBrachii")
  {
  if (parameters.include_gravity == false)
  {

Symmetry condition on -X surface

  {
  ComponentMask component_mask_x (dim, false);
  component_mask_x.set(0, true);
  parameters.bid_BB_dirichlet_X,
  boundary_values,
  component_mask_x);
  }


Fixed central point on -X surface

  {
  const Point<dim> fixed_point (0.0,0.0,0.0);
  std::vector<types::global_dof_index> fixed_dof_indices;
  bool found_point_of_interest = false;

  cell = dof_handler.begin_active(),
  endc = dof_handler.end(); cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {

We know that the fixed point is on the -X Dirichlet boundary

  if (cell->face(face)->at_boundary() == true &&
  cell->face(face)->boundary_id() == parameters.bid_BB_dirichlet_X)
  {
  for (unsigned int face_vertex_index = 0; face_vertex_index < GeometryInfo<dim>::vertices_per_face; ++face_vertex_index)
  {
  if (cell->face(face)->vertex(face_vertex_index).distance(fixed_point) < 1e-6)
  {
  found_point_of_interest = true;
  for (unsigned int index_component = 0; index_component < dim; ++index_component)
  fixed_dof_indices.push_back(cell->face(face)->vertex_dof_index(face_vertex_index,
  index_component));
  }

  if (found_point_of_interest == true) break;
  }
  }
  if (found_point_of_interest == true) break;
  }
  if (found_point_of_interest == true) break;
  }

  Assert(found_point_of_interest == true, ExcMessage("Didn't find point of interest"));
  AssertThrow(fixed_dof_indices.size() == dim, ExcMessage("Didn't find the correct number of DoFs to fix"));

  for (unsigned int i=0; i < fixed_dof_indices.size(); ++i)
  boundary_values[fixed_dof_indices[i]] = 0.0;
  }
  }
  else
  {

When we apply gravity, some additional constraints are required to support the load of the muscle, as the material response is more compliant than would be the case in reality.

Symmetry condition on -X surface

  {
  ComponentMask component_mask_x (dim, true);
  parameters.bid_BB_dirichlet_X,
  boundary_values,
  component_mask_x);
  }

Symmetry condition on -X surface

  {
  ComponentMask component_mask_x (dim, false);
  component_mask_x.set(1, true);
  component_mask_x.set(2, true);
  parameters.bid_BB_neumann,
  boundary_values,
  component_mask_x);
  }
  }


Roller condition at central point on +X face

  {
  const Point<dim> roller_point (parameters.axial_length*parameters.scale,0.0,0.0);
  std::vector<types::global_dof_index> fixed_dof_indices;
  bool found_point_of_interest = false;

  cell = dof_handler.begin_active(),
  endc = dof_handler.end(); cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {

We know that the fixed point is on the +X Neumann boundary

  if (cell->face(face)->at_boundary() == true &&
  cell->face(face)->boundary_id() == parameters.bid_BB_neumann)
  {
  for (unsigned int face_vertex_index = 0; face_vertex_index < GeometryInfo<dim>::vertices_per_face; ++face_vertex_index)
  {
  if (cell->face(face)->vertex(face_vertex_index).distance(roller_point) < 1e-6)
  {
  found_point_of_interest = true;
  for (unsigned int index_component = 1; index_component < dim; ++index_component)
  fixed_dof_indices.push_back(cell->face(face)->vertex_dof_index(face_vertex_index,
  index_component));
  }

  if (found_point_of_interest == true) break;
  }
  }
  if (found_point_of_interest == true) break;
  }
  if (found_point_of_interest == true) break;
  }

  Assert(found_point_of_interest == true, ExcMessage("Didn't find point of interest"));
  AssertThrow(fixed_dof_indices.size() == dim-1, ExcMessage("Didn't find the correct number of DoFs to fix"));

  for (unsigned int i=0; i < fixed_dof_indices.size(); ++i)
  boundary_values[fixed_dof_indices[i]] = 0.0;
  }
  }
  else
  AssertThrow(false, ExcNotImplemented());

  system_matrix,
  solution,
  system_rhs);
  }


void apply_boundary_values(const std::map< types::global_dof_index, number > &boundary_values, SparseMatrix< number > &matrix, Vector< number > &solution, Vector< number > &right_hand_side, const bool eliminate_columns=true)

LinearMuscleModelProblem::solve

  template <int dim>
  void LinearMuscleModelProblem<dim>::solve ()
  {
  SolverControl solver_control (system_matrix.m(), 1e-12);
  SolverCG<> cg (solver_control);

  PreconditionSSOR<> preconditioner;
  preconditioner.initialize(system_matrix, 1.2);

  cg.solve (system_matrix, solution, system_rhs,
  preconditioner);

  hanging_node_constraints.distribute (solution);
  }


void initialize(const MatrixType &A, const AdditionalData &parameters=AdditionalData())

LinearMuscleModelProblem::output_results

  template <int dim>
  void LinearMuscleModelProblem<dim>::output_results (const unsigned int timestep,
  const double time) const
  {

Visual output: FEM results

  {
  std::string filename = "solution-";
  filename += Utilities::int_to_string(timestep,4);
  filename += ".vtk";
  std::ofstream output (filename.c_str());

  DataOut<dim> data_out;
  data_out.attach_dof_handler (dof_handler);

  std::vector<DataComponentInterpretation::DataComponentInterpretation>
  data_component_interpretation(dim,
  std::vector<std::string> solution_name(dim, "displacement");

  data_out.add_data_vector (solution, solution_name,
  data_component_interpretation);
  data_out.build_patches ();
  data_out.write_vtk (output);
  }

void attach_dof_handler(const DoFHandler< dim, spacedim > &)
std::string int_to_string(const unsigned int value, const unsigned int digits=numbers::invalid_unsigned_int)
Definition utilities.cc:471

Visual output: FEM data

  {
  std::string filename = "fibres-";
  filename += Utilities::int_to_string(timestep,4);
  filename += ".vtk";
  std::ofstream output (filename.c_str());

  output
  << "# vtk DataFile Version 3.0" << std::endl
  << "# " << std::endl
  << "ASCII"<< std::endl
  << "DATASET POLYDATA"<< std::endl << std::endl;


Extract fibre data from quadrature points

  const unsigned int n_cells = triangulation.n_active_cells();
  const unsigned int n_q_points_cell = qf_cell.size();


Data that we'll be outputting

  std::vector<std::string> results_fibre_names;
  results_fibre_names.push_back("alpha");
  results_fibre_names.push_back("epsilon_f");
  results_fibre_names.push_back("epsilon_c");
  results_fibre_names.push_back("epsilon_c_dot");

  const unsigned int n_results = results_fibre_names.size();
  const unsigned int n_data_points = n_cells*n_q_points_cell;
  std::vector< Point<dim> > output_points(n_data_points);
  std::vector< Tensor<1,dim> > output_displacements(n_data_points);
  std::vector< Tensor<1,dim> > output_directions(n_data_points);
  std::vector< std::vector<double> > output_values(n_results, std::vector<double>(n_data_points));


Displacement

  std::vector< Vector<double> > u_values (n_q_points_cell,
  Vector<double>(dim));

Displacement gradient

  std::vector< std::vector< Tensor<1,dim> > > u_grads (n_q_points_cell,
  std::vector<Tensor<1,dim> >(dim));

  FEValues<dim> fe_values (fe, qf_cell,
  unsigned int cell_no = 0;
  unsigned int fibre_no = 0;
  cell = dof_handler.begin_active();
  cell != dof_handler.end();
  ++cell, ++cell_no)
  {
  fe_values.reinit (cell);
  fe_values.get_function_values (solution, u_values);
  fe_values.get_function_gradients (solution, u_grads);

  for (unsigned int q_point_cell=0; q_point_cell<n_q_points_cell; ++q_point_cell, ++fibre_no)
  {
  const MuscleFibre<dim> &fibre = fibre_data[cell_no][q_point_cell];
  output_points[fibre_no] = fe_values.get_quadrature_points()[q_point_cell]; // Position
  for (unsigned int d=0; d<dim; ++d)
  output_displacements[fibre_no][d] = u_values[q_point_cell][d]; // Displacement

Direction (spatial configuration)

  output_directions[fibre_no] = get_deformation_gradient(u_grads[q_point_cell])*fibre.get_M();
  output_directions[fibre_no] /= output_directions[fibre_no].norm();


Fibre values

  output_values[0][fibre_no] = fibre.get_alpha();
  output_values[1][fibre_no] = fibre.get_epsilon_f();
  output_values[2][fibre_no] = fibre.get_epsilon_c();
  output_values[3][fibre_no] = fibre.get_epsilon_c_dot();
  }
  }


FIBRE POSITION

  output
  << "POINTS "
  << n_data_points
  << " float" << std::endl;
  for (unsigned int i=0; i < n_data_points; ++i)
  {
  for (unsigned int j=0; j < dim; ++j)
  {
  output << (output_points)[i][j] << "\t";
  }
  output << std::endl;
  }


HEADER FOR POINT DATA

  output << "\nPOINT_DATA "
  << n_data_points
  << std::endl << std::endl;


FIBRE DISPLACEMENTS

  output
  << "VECTORS displacement float"
  << std::endl;
  for (unsigned int i = 0; i < n_data_points; ++i)
  {
  for (unsigned int j=0; j < dim; ++j)
  {
  output << (output_displacements)[i][j] << "\t";
  }
  output << std::endl;
  }
  output << std::endl;


FIBRE DIRECTIONS

  output
  << "VECTORS direction float"
  << std::endl;
  for (unsigned int i = 0; i < n_data_points; ++i)
  {
  for (unsigned int j=0; j < dim; ++j)
  {
  output << (output_directions)[i][j] << "\t";
  }
  output << std::endl;
  }
  output << std::endl;


POINT DATA

  for (unsigned int v=0; v < n_results; ++v)
  {
  output
  << "SCALARS "
  << results_fibre_names[v]
  << " float 1" << std::endl
  << "LOOKUP_TABLE default "
  << std::endl;
  for (unsigned int i=0; i<n_data_points; ++i)
  {
  output << (output_values)[v][i] << " ";
  }
  output << std::endl;
  }
  }


Output X-displacement at measured point

  {
  const Point<dim> meas_pt (parameters.problem == "IsotonicContraction" ?
  Point<dim>(parameters.half_length_x, 0.0, 0.0) :
  Point<dim>(parameters.axial_length*parameters.scale, 0.0, 0.0) );


  const unsigned int index_of_interest = 0;
  bool found_point_of_interest = false;

  cell = dof_handler.begin_active(),
  endc = dof_handler.end(); cell != endc; ++cell)
  {
  for (unsigned int face = 0; face < GeometryInfo<dim>::faces_per_cell; ++face)
  {
const types::global_dof_index invalid_dof_index
Definition types.h:233

We know that the measurement point is on the Neumann boundary

  if (cell->face(face)->at_boundary() == true &&
  ((parameters.problem == "IsotonicContraction" &&
  cell->face(face)->boundary_id() == parameters.bid_CC_neumann) ||
  (parameters.problem == "BicepsBrachii" &&
  cell->face(face)->boundary_id() == parameters.bid_BB_neumann)) )
  {
  for (unsigned int face_vertex_index = 0; face_vertex_index < GeometryInfo<dim>::vertices_per_face; ++face_vertex_index)
  {
  if (cell->face(face)->vertex(face_vertex_index).distance(meas_pt) < 1e-6)
  {
  found_point_of_interest = true;
  dof_of_interest = cell->face(face)->vertex_dof_index(face_vertex_index,
  index_of_interest);
  }

  if (found_point_of_interest == true) break;
  }
  }
  if (found_point_of_interest == true) break;
  }
  if (found_point_of_interest == true) break;
  }

  Assert(found_point_of_interest == true, ExcMessage("Didn't find point of interest"));
  Assert(dof_of_interest != numbers::invalid_dof_index, ExcMessage("Didn't find DoF of interest"));
  Assert(dof_of_interest < dof_handler.n_dofs(), ExcMessage("DoF index out of range"));

  const std::string filename = "displacement_POI.csv";
  std::ofstream output;
  if (timestep == 0)
  {
  output.open(filename.c_str(), std::ofstream::out);
  output
  << "Time [s]" << "," << "X-displacement [mm]" << std::endl;
  }
  else
  output.open(filename.c_str(), std::ios_base::app);

  output
  << time
  << ","
  << solution[dof_of_interest]*1e3
  << std::endl;
  }
  }




LinearMuscleModelProblem::run

  template <int dim>
  void LinearMuscleModelProblem<dim>::run ()
  {
  make_grid();
  setup_system ();
  setup_muscle_fibres ();


const bool do_grid_refinement = false;

  double time = 0.0;
  for (unsigned int timestep=0; time<=t_end; ++timestep, time+=dt)
  {
  std::cout
  << "Timestep " << timestep
  << " @ time " << time
  << std::endl;


First we update the fibre activation level based on the current time

  update_fibre_activation(time);


Next we assemble the system and enforce boundary conditions. Here we assume that the system and fibres have a fixed state, and we will assemble based on how epsilon_c will update given the current state of the body.

  assemble_system (time);
  apply_boundary_conditions ();


Then we solve the linear system

  solve ();


Now we update the fibre state based on the new displacement solution and the constitutive parameters assumed to govern the stiffness of the fibres at the previous state. i.e. We follow through with assumed update conditions used in the assembly phase.

  update_fibre_state();


Output some values to file

  output_results (timestep, time);
  }
  }
  }


The main function

  int main ()
  {
  try
  {
  ::deallog.depth_console (0);
  const unsigned int dim = 3;

  LMM::LinearMuscleModelProblem<dim> lmm_problem ("parameters.prm");
  lmm_problem.run ();
  }
  catch (std::exception &exc)
  {
  std::cerr << std::endl << std::endl
  << "----------------------------------------------------"
  << std::endl;
  std::cerr << "Exception on processing: " << std::endl
  << exc.what() << std::endl
  << "Aborting!" << std::endl
  << "----------------------------------------------------"
  << std::endl;

  return 1;
  }
  catch (...)
  {
  std::cerr << std::endl << std::endl
  << "----------------------------------------------------"
  << std::endl;
  std::cerr << "Unknown exception!" << std::endl
  << "Aborting!" << std::endl
  << "----------------------------------------------------"
  << std::endl;
  return 1;
  }

  return 0;
  }
