Reference documentation for deal.II version 9.3.0
hp::MappingCollection< dim, spacedim > Class Template Reference

#include <deal.II/hp/mapping_collection.h>

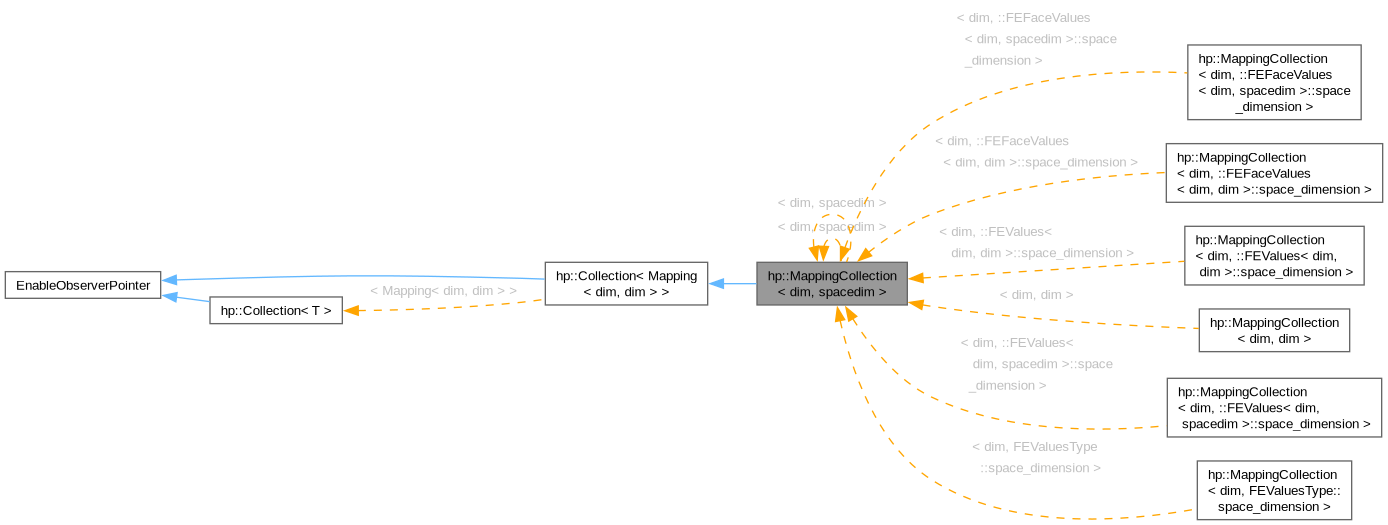

Inheritance diagram for hp::MappingCollection< dim, spacedim >:
[legend]

## Public Member Functions

MappingCollection ()=default

MappingCollection (const Mapping< dim, spacedim > &mapping)

MappingCollection (const MappingCollection< dim, spacedim > &mapping_collection)

template<class... MappingTypes>
MappingCollection (const MappingTypes &... mappings)

void push_back (const Mapping< dim, spacedim > &new_mapping)

void push_back (const std::shared_ptr< const Mapping< dim, spacedim > > &new_entry)

const Mapping< dim, spacedim > & operator[] (const unsigned int index) const

unsigned int size () const

std::size_t memory_consumption () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const

## Static Public Member Functions

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)

## Detailed Description

### template<int dim, int spacedim = dim> class hp::MappingCollection< dim, spacedim >

This class implements a collection of mapping objects in the same way as the hp::FECollection implements a collection of finite element classes.

It implements the concepts stated in the hp-Collections module described in the doxygen documentation.

Although it is recommended to supply an appropriate mapping for each finite element kind used in a hp-computation, the MappingCollection class implements a conversion constructor from a single mapping. Therefore it is possible to offer only a single mapping to the hp::FEValues class instead of a hp::MappingCollection. This is for the convenience of the user, as many simple geometries do not require different mappings along the boundary to achieve optimal convergence rates. Hence providing a single mapping object will usually suffice. See the hp::FEValues class for the rules which mapping will be selected for a given cell.

Definition at line 56 of file mapping_collection.h.

## ◆ MappingCollection() [1/4]

template<int dim, int spacedim = dim>
 hp::MappingCollection< dim, spacedim >::MappingCollection ( )
default

Default constructor. Leads to an empty collection that can later be filled using push_back().

## ◆ MappingCollection() [2/4]

template<int dim, int spacedim>
 hp::MappingCollection< dim, spacedim >::MappingCollection ( const Mapping< dim, spacedim > & mapping )
explicit

Conversion constructor. This constructor creates a MappingCollection from a single mapping. More mappings can be added with push_back(), if desired, though it would probably be clearer to add all mappings the same way.

Definition at line 27 of file mapping_collection.cc.

## ◆ MappingCollection() [3/4]

template<int dim, int spacedim>
 hp::MappingCollection< dim, spacedim >::MappingCollection ( const MappingCollection< dim, spacedim > & mapping_collection )

Copy constructor.

Definition at line 36 of file mapping_collection.cc.

## ◆ MappingCollection() [4/4]

template<int dim, int spacedim>
template<class... MappingTypes>
 hp::MappingCollection< dim, spacedim >::MappingCollection ( const MappingTypes &... mappings )
explicit

Constructor. This constructor creates a MappingCollection from one or more mapping objects passed to the constructor. For this call to be valid, all arguments need to be of types derived from class Mapping<dim,spacedim>.

Definition at line 136 of file mapping_collection.h.

## ◆ push_back() [1/2]

template<int dim, int spacedim>
 void hp::MappingCollection< dim, spacedim >::push_back ( const Mapping< dim, spacedim > & new_mapping )

Add a new mapping to the MappingCollection. Generally, you will want to use the same order for mappings as for the elements of the hp::FECollection object you use. However, the same considerations as discussed with the hp::QCollection::push_back() function also apply in the current context.

This class creates a copy of the given mapping object, i.e., you can do things like push_back(MappingQ<dim>(3));. The internal copy is later destroyed by this object upon destruction of the entire collection.

Definition at line 47 of file mapping_collection.cc.

## ◆ push_back() [2/2]

 void hp::Collection< Mapping< dim, spacedim > >::push_back ( const std::shared_ptr< const Mapping< dim, spacedim > > & new_entry )
inherited

Definition at line 100 of file collection.h.

## ◆ operator[]()

 const Mapping< dim, spacedim > & hp::Collection< Mapping< dim, spacedim > >::operator[] ( const unsigned int index ) const
inlineinherited

Return the object which was specified by the user for the active FE index which is provided as a parameter to this method.

Precondition
index must be between zero and the number of elements of the collection.

Definition at line 117 of file collection.h.

## ◆ size()

 unsigned int hp::Collection< Mapping< dim, spacedim > >::size ( ) const
inlineinherited

Return the number of objects stored in this container.

Definition at line 109 of file collection.h.

## ◆ memory_consumption()

 std::size_t hp::Collection< Mapping< dim, spacedim > >::memory_consumption ( ) const
inherited

Determine an estimate for the memory consumption (in bytes) of this object.

Definition at line 91 of file collection.h.

## ◆ subscribe()

 void Subscriptor::subscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

## ◆ unsubscribe()

 void Subscriptor::unsubscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

## ◆ n_subscriptions()

 unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 301 of file subscriptor.h.

## ◆ list_subscribers() [1/2]

template<typename StreamType >
 void Subscriptor::list_subscribers ( StreamType & stream ) const
inlineinherited

List the subscribers to the input stream.

Definition at line 318 of file subscriptor.h.

## ◆ list_subscribers() [2/2]

 void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

## ◆ serialize()

template<class Archive >
 void Subscriptor::serialize ( Archive & ar, const unsigned int version )
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 310 of file subscriptor.h.

The documentation for this class was generated from the following files:
