Reference documentation for deal.II version 9.2.0
MappingCartesian< dim, spacedim > Class Template Reference

#include <deal.II/fe/mapping_cartesian.h>

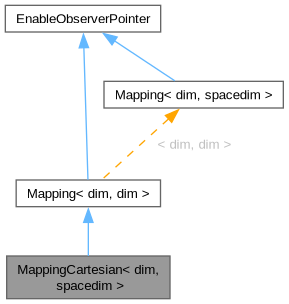

Inheritance diagram for MappingCartesian< dim, spacedim >:
[legend]

## Classes

class  InternalData

## Public Member Functions

virtual std::unique_ptr< Mapping< dim, spacedim > > clone () const override

virtual bool preserves_vertex_locations () const override

Mapping points between reference and real cells
virtual Point< spacedim > transform_unit_to_real_cell (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const Point< dim > &p) const override

virtual Point< dim > transform_real_to_unit_cell (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const Point< spacedim > &p) const override

Functions to transform tensors from reference to real coordinates
virtual void transform (const ArrayView< const Tensor< 1, dim >> &input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase &internal, const ArrayView< Tensor< 1, spacedim >> &output) const override

virtual void transform (const ArrayView< const DerivativeForm< 1, dim, spacedim >> &input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase &internal, const ArrayView< Tensor< 2, spacedim >> &output) const override

virtual void transform (const ArrayView< const Tensor< 2, dim >> &input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase &internal, const ArrayView< Tensor< 2, spacedim >> &output) const override

virtual void transform (const ArrayView< const DerivativeForm< 2, dim, spacedim >> &input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase &internal, const ArrayView< Tensor< 3, spacedim >> &output) const override

virtual void transform (const ArrayView< const Tensor< 3, dim >> &input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase &internal, const ArrayView< Tensor< 3, spacedim >> &output) const override

Public Member Functions inherited from Mapping< dim, spacedim >
virtual ~Mapping () override=default

virtual std::array< Point< spacedim >, GeometryInfo< dim >::vertices_per_cell > get_vertices (const typename Triangulation< dim, spacedim >::cell_iterator &cell) const

virtual Point< spacedim > get_center (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const bool map_center_of_reference_cell=true) const

virtual BoundingBox< spacedim > get_bounding_box (const typename Triangulation< dim, spacedim >::cell_iterator &cell) const

Point< dim - 1 > project_real_point_to_unit_point_on_face (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const Point< spacedim > &p) const

Public Member Functions inherited from Subscriptor
Subscriptor ()

Subscriptor (const Subscriptor &)

Subscriptor (Subscriptor &&) noexcept

virtual ~Subscriptor ()

Subscriptoroperator= (const Subscriptor &)

Subscriptoroperator= (Subscriptor &&) noexcept

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

## Private Member Functions

void update_cell_extents (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const CellSimilarity::Similarity cell_similarity, const InternalData &data) const

void maybe_update_cell_quadrature_points (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const InternalData &data, std::vector< Point< dim >> &quadrature_points) const

void maybe_update_face_quadrature_points (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const InternalData &data, std::vector< Point< dim >> &quadrature_points) const

void maybe_update_subface_quadrature_points (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int sub_no, const InternalData &data, std::vector< Point< dim >> &quadrature_points) const

void transform_quadrature_points (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const InternalData &data, const typename QProjector< dim >::DataSetDescriptor &offset, std::vector< Point< dim >> &quadrature_points) const

void maybe_update_normal_vectors (const unsigned int face_no, const InternalData &data, std::vector< Tensor< 1, dim >> &normal_vectors) const

void maybe_update_jacobian_derivatives (const InternalData &data, const CellSimilarity::Similarity cell_similarity, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const

Interface with FEValues
virtual UpdateFlags requires_update_flags (const UpdateFlags update_flags) const override

virtual std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBaseget_data (const UpdateFlags, const Quadrature< dim > &quadrature) const override

virtual std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBaseget_face_data (const UpdateFlags flags, const Quadrature< dim - 1 > &quadrature) const override

virtual std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBaseget_subface_data (const UpdateFlags flags, const Quadrature< dim - 1 > &quadrature) const override

virtual CellSimilarity::Similarity fill_fe_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const CellSimilarity::Similarity cell_similarity, const Quadrature< dim > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const override

virtual void fill_fe_face_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const Quadrature< dim - 1 > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const override

virtual void fill_fe_subface_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int subface_no, const Quadrature< dim - 1 > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const override

Static Public Member Functions inherited from Mapping< dim, spacedim >
static ::ExceptionBaseExcInvalidData ()

static ::ExceptionBaseExcTransformationFailed ()

static ::ExceptionBaseExcDistortedMappedCell (Point< spacedim > arg1, double arg2, int arg3)

Static Public Member Functions inherited from Subscriptor
static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)

Protected Member Functions inherited from Mapping< dim, spacedim >
virtual CellSimilarity::Similarity fill_fe_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const CellSimilarity::Similarity cell_similarity, const Quadrature< dim > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const =0

virtual void fill_fe_face_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const Quadrature< dim - 1 > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const =0

virtual void fill_fe_subface_values (const typename Triangulation< dim, spacedim >::cell_iterator &cell, const unsigned int face_no, const unsigned int subface_no, const Quadrature< dim - 1 > &quadrature, const typename Mapping< dim, spacedim >::InternalDataBase &internal_data, ::internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > &output_data) const =0

## Detailed Description

### template<int dim, int spacedim = dim> class MappingCartesian< dim, spacedim >

A class providing a mapping from the reference cell to cells that are axiparallel, i.e., that have the shape of rectangles (in 2d) or boxes (in 3d) with edges parallel to the coordinate directions. The class therefore provides functionality that is equivalent to what, for example, MappingQ would provide for such cells. However, knowledge of the shape of cells allows this class to be substantially more efficient.

Specifically, the mapping is meant for cells for which the mapping from the reference to the real cell is a scaling along the coordinate directions: The transformation from reference coordinates $$\hat {\mathbf x}$$ to real coordinates $$\mathbf x$$ on each cell is of the form

\begin{align*} {\mathbf x}(\hat {\mathbf x}) = \begin{pmatrix} h_x & 0 \\ 0 & h_y \end{pmatrix} \hat{\mathbf x} + {\mathbf v}_0 \end{align*}

in 2d, and

\begin{align*} {\mathbf x}(\hat {\mathbf x}) = \begin{pmatrix} h_x & 0 & 0 \\ 0 & h_y & 0 \\ 0 & 0 & h_z \end{pmatrix} \hat{\mathbf x} + {\mathbf v}_0 \end{align*}

in 3d, where $${\mathbf v}_0$$ is the bottom left vertex and $$h_x,h_y,h_z$$ are the extents of the cell along the axes.

The class is intended for efficiency, and it does not do a whole lot of error checking. If you apply this mapping to a cell that does not conform to the requirements above, you will get strange results.

Definition at line 79 of file mapping_cartesian.h.

## ◆ clone()

template<int dim, int spacedim>
 std::unique_ptr< Mapping< dim, spacedim > > MappingCartesian< dim, spacedim >::clone ( ) const
overridevirtual

Return a pointer to a copy of the present object. The caller of this copy then assumes ownership of it.

The function is declared abstract virtual in this base class, and derived classes will have to implement it.

This function is mainly used by the hp::MappingCollection class.

Implements Mapping< dim, spacedim >.

Definition at line 1062 of file mapping_cartesian.cc.

## ◆ preserves_vertex_locations()

template<int dim, int spacedim>
 bool MappingCartesian< dim, spacedim >::preserves_vertex_locations ( ) const
overridevirtual

Return true because MappingCartesian preserves vertex locations.

Implements Mapping< dim, spacedim >.

Definition at line 66 of file mapping_cartesian.cc.

## ◆ transform_unit_to_real_cell()

template<int dim, int spacedim>
 Point< spacedim > MappingCartesian< dim, spacedim >::transform_unit_to_real_cell ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const Point< dim > & p ) const
overridevirtual

Map the point p on the unit cell to the corresponding point on the real cell cell.

Parameters
 cell Iterator to the cell that will be used to define the mapping. p Location of a point on the reference cell.
Returns
The location of the reference point mapped to real space using the mapping defined by the class derived from the current one that implements the mapping, and the coordinates of the cell identified by the first argument.

Implements Mapping< dim, spacedim >.

Definition at line 993 of file mapping_cartesian.cc.

## ◆ transform_real_to_unit_cell()

template<int dim, int spacedim>
 Point< dim > MappingCartesian< dim, spacedim >::transform_real_to_unit_cell ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const Point< spacedim > & p ) const
overridevirtual

Map the point p on the real cell to the corresponding point on the unit cell, and return its coordinates. This function provides the inverse of the mapping provided by transform_unit_to_real_cell().

In the codimension one case, this function returns the normal projection of the real point p on the curve or surface identified by the cell.

Note
Polynomial mappings from the reference (unit) cell coordinates to the coordinate system of a real cell are not always invertible if the point for which the inverse mapping is to be computed lies outside the cell's boundaries. In such cases, the current function may fail to compute a point on the reference cell whose image under the mapping equals the given point p. If this is the case then this function throws an exception of type Mapping::ExcTransformationFailed . Whether the given point p lies outside the cell can therefore be determined by checking whether the returned reference coordinates lie inside or outside the reference cell (e.g., using GeometryInfo::is_inside_unit_cell()) or whether the exception mentioned above has been thrown.
Parameters
 cell Iterator to the cell that will be used to define the mapping. p Location of a point on the given cell.
Returns
The reference cell location of the point that when mapped to real space equals the coordinates given by the second argument. This mapping uses the mapping defined by the class derived from the current one that implements the mapping, and the coordinates of the cell identified by the first argument.

Implements Mapping< dim, spacedim >.

Definition at line 1028 of file mapping_cartesian.cc.

## ◆ transform() [1/5]

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform ( const ArrayView< const Tensor< 1, dim >> & input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase & internal, const ArrayView< Tensor< 1, spacedim >> & output ) const
overridevirtual

Transform a field of vectors or 1-differential forms according to the selected MappingKind.

Note
Normally, this function is called by a finite element, filling FEValues objects. For this finite element, there should be an alias MappingKind like mapping_bdm, mapping_nedelec, etc. This alias should be preferred to using the kinds below.

The mapping kinds currently implemented by derived classes are:

• mapping_contravariant: maps a vector field on the reference cell to the physical cell through the Jacobian:

$\mathbf u(\mathbf x) = J(\hat{\mathbf x})\hat{\mathbf u}(\hat{\mathbf x}).$

In physics, this is usually referred to as the contravariant transformation. Mathematically, it is the push forward of a vector field.

• mapping_covariant: maps a field of one-forms on the reference cell to a field of one-forms on the physical cell. (Theoretically this would refer to a DerivativeForm<1,dim,1> but we canonically identify this type with a Tensor<1,dim>). Mathematically, it is the pull back of the differential form

$\mathbf u(\mathbf x) = J(\hat{\mathbf x})(J(\hat{\mathbf x})^{T} J(\hat{\mathbf x}))^{-1}\hat{\mathbf u}(\hat{\mathbf x}).$

Gradients of scalar differentiable functions are transformed this way.

In the case when dim=spacedim the previous formula reduces to

$\mathbf u(\mathbf x) = J(\hat{\mathbf x})^{-T}\hat{\mathbf u}(\hat{\mathbf x})$

because we assume that the mapping $$\mathbf F_K$$ is always invertible, and consequently its Jacobian $$J$$ is an invertible matrix.

• mapping_piola: A field of dim-1-forms on the reference cell is also represented by a vector field, but again transforms differently, namely by the Piola transform

$\mathbf u(\mathbf x) = \frac{1}{\text{det}\;J(\hat{\mathbf x})} J(\hat{\mathbf x}) \hat{\mathbf u}(\hat{\mathbf x}).$

Parameters
 [in] input An array (or part of an array) of input objects that should be mapped. [in] kind The kind of mapping to be applied. [in] internal A pointer to an object of type Mapping::InternalDataBase that contains information previously stored by the mapping. The object pointed to was created by the get_data(), get_face_data(), or get_subface_data() function, and will have been updated as part of a call to fill_fe_values(), fill_fe_face_values(), or fill_fe_subface_values() for the current cell, before calling the current function. In other words, this object also represents with respect to which cell the transformation should be applied to. [out] output An array (or part of an array) into which the transformed objects should be placed. (Note that the array view is const, but the tensors it points to are not.)

Implements Mapping< dim, spacedim >.

Definition at line 586 of file mapping_cartesian.cc.

## ◆ transform() [2/5]

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform ( const ArrayView< const DerivativeForm< 1, dim, spacedim >> & input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase & internal, const ArrayView< Tensor< 2, spacedim >> & output ) const
overridevirtual

Transform a field of differential forms from the reference cell to the physical cell. It is useful to think of $$\mathbf{T} = \nabla \mathbf u$$ and $$\hat{\mathbf T} = \hat \nabla \hat{\mathbf u}$$, with $$\mathbf u$$ a vector field. The mapping kinds currently implemented by derived classes are:

• mapping_covariant: maps a field of forms on the reference cell to a field of forms on the physical cell. Mathematically, it is the pull back of the differential form

$\mathbf T(\mathbf x) = \hat{\mathbf T}(\hat{\mathbf x}) J(\hat{\mathbf x})(J(\hat{\mathbf x})^{T} J(\hat{\mathbf x}))^{-1}.$

Jacobians of spacedim-vector valued differentiable functions are transformed this way.

In the case when dim=spacedim the previous formula reduces to

$\mathbf T(\mathbf x) = \hat{\mathbf u}(\hat{\mathbf x}) J(\hat{\mathbf x})^{-1}.$

Note
It would have been more reasonable to make this transform a template function with the rank in DerivativeForm<1, dim, rank>. Unfortunately C++ does not allow templatized virtual functions. This is why we identify DerivativeForm<1, dim, 1> with a Tensor<1,dim> when using mapping_covariant() in the function transform() above this one.
Parameters
 [in] input An array (or part of an array) of input objects that should be mapped. [in] kind The kind of mapping to be applied. [in] internal A pointer to an object of type Mapping::InternalDataBase that contains information previously stored by the mapping. The object pointed to was created by the get_data(), get_face_data(), or get_subface_data() function, and will have been updated as part of a call to fill_fe_values(), fill_fe_face_values(), or fill_fe_subface_values() for the current cell, before calling the current function. In other words, this object also represents with respect to which cell the transformation should be applied to. [out] output An array (or part of an array) into which the transformed objects should be placed. (Note that the array view is const, but the tensors it points to are not.)

Implements Mapping< dim, spacedim >.

Definition at line 646 of file mapping_cartesian.cc.

## ◆ transform() [3/5]

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform ( const ArrayView< const Tensor< 2, dim >> & input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase & internal, const ArrayView< Tensor< 2, spacedim >> & output ) const
overridevirtual

Transform a tensor field from the reference cell to the physical cell. These tensors are usually the Jacobians in the reference cell of vector fields that have been pulled back from the physical cell. The mapping kinds currently implemented by derived classes are:

• mapping_contravariant_gradient: it assumes $$\mathbf u(\mathbf x) = J \hat{\mathbf u}$$ so that

$\mathbf T(\mathbf x) = J(\hat{\mathbf x}) \hat{\mathbf T}(\hat{\mathbf x}) J(\hat{\mathbf x})^{-1}.$

• mapping_covariant_gradient: it assumes $$\mathbf u(\mathbf x) = J^{-T} \hat{\mathbf u}$$ so that

$\mathbf T(\mathbf x) = J(\hat{\mathbf x})^{-T} \hat{\mathbf T}(\hat{\mathbf x}) J(\hat{\mathbf x})^{-1}.$

• mapping_piola_gradient: it assumes $$\mathbf u(\mathbf x) = \frac{1}{\text{det}\;J(\hat{\mathbf x})} J(\hat{\mathbf x}) \hat{\mathbf u}(\hat{\mathbf x})$$ so that

$\mathbf T(\mathbf x) = \frac{1}{\text{det}\;J(\hat{\mathbf x})} J(\hat{\mathbf x}) \hat{\mathbf T}(\hat{\mathbf x}) J(\hat{\mathbf x})^{-1}.$

Todo:
The formulas for mapping_covariant_gradient, mapping_contravariant_gradient and mapping_piola_gradient are only true as stated for linear mappings. If, for example, the mapping is bilinear (or has a higher order polynomial degree) then there is a missing term associated with the derivative of $$J$$.
Parameters
 [in] input An array (or part of an array) of input objects that should be mapped. [in] kind The kind of mapping to be applied. [in] internal A pointer to an object of type Mapping::InternalDataBase that contains information previously stored by the mapping. The object pointed to was created by the get_data(), get_face_data(), or get_subface_data() function, and will have been updated as part of a call to fill_fe_values(), fill_fe_face_values(), or fill_fe_subface_values() for the current cell, before calling the current function. In other words, this object also represents with respect to which cell the transformation should be applied to. [out] output An array (or part of an array) into which the transformed objects should be placed. (Note that the array view is const, but the tensors it points to are not.)

Implements Mapping< dim, spacedim >.

Definition at line 756 of file mapping_cartesian.cc.

## ◆ transform() [4/5]

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform ( const ArrayView< const DerivativeForm< 2, dim, spacedim >> & input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase & internal, const ArrayView< Tensor< 3, spacedim >> & output ) const
overridevirtual

Transform a tensor field from the reference cell to the physical cell. This tensors are most of times the hessians in the reference cell of vector fields that have been pulled back from the physical cell.

The mapping kinds currently implemented by derived classes are:

• mapping_covariant_gradient: maps a field of forms on the reference cell to a field of forms on the physical cell. Mathematically, it is the pull back of the differential form

$\mathbf T_{ijk}(\mathbf x) = \hat{\mathbf T}_{iJK}(\hat{\mathbf x}) J_{jJ}^{\dagger} J_{kK}^{\dagger}$

,

where

$J^{\dagger} = J(\hat{\mathbf x})(J(\hat{\mathbf x})^{T} J(\hat{\mathbf x}))^{-1}.$

Hessians of spacedim-vector valued differentiable functions are transformed this way (After subtraction of the product of the derivative with the Jacobian gradient).

In the case when dim=spacedim the previous formula reduces to

$J^{\dagger} = J^{-1}$

Parameters
 [in] input An array (or part of an array) of input objects that should be mapped. [in] kind The kind of mapping to be applied. [in] internal A pointer to an object of type Mapping::InternalDataBase that contains information previously stored by the mapping. The object pointed to was created by the get_data(), get_face_data(), or get_subface_data() function, and will have been updated as part of a call to fill_fe_values(), fill_fe_face_values(), or fill_fe_subface_values() for the current cell, before calling the current function. In other words, this object also represents with respect to which cell the transformation should be applied to. [out] output An array (or part of an array) into which the transformed objects should be placed. (Note that the array view is const, but the tensors it points to are not.)

Implements Mapping< dim, spacedim >.

Definition at line 866 of file mapping_cartesian.cc.

## ◆ transform() [5/5]

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform ( const ArrayView< const Tensor< 3, dim >> & input, const MappingKind kind, const typename Mapping< dim, spacedim >::InternalDataBase & internal, const ArrayView< Tensor< 3, spacedim >> & output ) const
overridevirtual

Transform a field of 3-differential forms from the reference cell to the physical cell. It is useful to think of $$\mathbf{T}_{ijk} = D^2_{jk} \mathbf u_i$$ and $$\mathbf{\hat T}_{IJK} = \hat D^2_{JK} \mathbf{\hat u}_I$$, with $$\mathbf u_i$$ a vector field.

The mapping kinds currently implemented by derived classes are:

• mapping_contravariant_hessian: it assumes $$\mathbf u_i(\mathbf x) = J_{iI} \hat{\mathbf u}_I$$ so that

$\mathbf T_{ijk}(\mathbf x) = J_{iI}(\hat{\mathbf x}) \hat{\mathbf T}_{IJK}(\hat{\mathbf x}) J_{jJ}(\hat{\mathbf x})^{-1} J_{kK}(\hat{\mathbf x})^{-1}.$

• mapping_covariant_hessian: it assumes $$\mathbf u_i(\mathbf x) = J_{iI}^{-T} \hat{\mathbf u}_I$$ so that

$\mathbf T_{ijk}(\mathbf x) = J_iI(\hat{\mathbf x})^{-1} \hat{\mathbf T}_{IJK}(\hat{\mathbf x}) J_{jJ}(\hat{\mathbf x})^{-1} J_{kK}(\hat{\mathbf x})^{-1}.$

• mapping_piola_hessian: it assumes $$\mathbf u_i(\mathbf x) = \frac{1}{\text{det}\;J(\hat{\mathbf x})} J_{iI}(\hat{\mathbf x}) \hat{\mathbf u}(\hat{\mathbf x})$$ so that

$\mathbf T_{ijk}(\mathbf x) = \frac{1}{\text{det}\;J(\hat{\mathbf x})} J_{iI}(\hat{\mathbf x}) \hat{\mathbf T}_{IJK}(\hat{\mathbf x}) J_{jJ}(\hat{\mathbf x})^{-1} J_{kK}(\hat{\mathbf x})^{-1}.$

Parameters
 [in] input An array (or part of an array) of input objects that should be mapped. [in] kind The kind of mapping to be applied. [in] internal A pointer to an object of type Mapping::InternalDataBase that contains information previously stored by the mapping. The object pointed to was created by the get_data(), get_face_data(), or get_subface_data() function, and will have been updated as part of a call to fill_fe_values(), fill_fe_face_values(), or fill_fe_subface_values() for the current cell, before calling the current function. In other words, this object also represents with respect to which cell the transformation should be applied to. [out] output An array (or part of an array) into which the transformed objects should be placed.

Implements Mapping< dim, spacedim >.

Definition at line 905 of file mapping_cartesian.cc.

## ◆ requires_update_flags()

template<int dim, int spacedim>
 UpdateFlags MappingCartesian< dim, spacedim >::requires_update_flags ( const UpdateFlags update_flags ) const
overrideprivatevirtual

Given a set of update flags, compute which other quantities also need to be computed in order to satisfy the request by the given flags. Then return the combination of the original set of flags and those just computed.

As an example, if update_flags contains update_JxW_values (i.e., the product of the determinant of the Jacobian and the weights provided by the quadrature formula), a mapping may require the computation of the full Jacobian matrix in order to compute its determinant. They would then return not just update_JxW_values, but also update_jacobians. (This is not how it is actually done internally in the derived classes that compute the JxW values – they set update_contravariant_transformation instead, from which the determinant can also be computed – but this does not take away from the instructiveness of the example.)

An extensive discussion of the interaction between this function and FEValues can be found in the How Mapping, FiniteElement, and FEValues work together documentation module.

UpdateFlags

Implements Mapping< dim, spacedim >.

Definition at line 75 of file mapping_cartesian.cc.

## ◆ get_data()

template<int dim, int spacedim>
 std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBase > MappingCartesian< dim, spacedim >::get_data ( const UpdateFlags update_flags, const Quadrature< dim > & quadrature ) const
overrideprivatevirtual

Create and return a pointer to an object into which mappings can store data that only needs to be computed once but that can then be used whenever the mapping is applied to a concrete cell (e.g., in the various transform() functions, as well as in the fill_fe_values(), fill_fe_face_values() and fill_fe_subface_values() that form the interface of mappings with the FEValues class).

Derived classes will return pointers to objects of a type derived from Mapping::InternalDataBase (see there for more information) and may pre- compute some information already (in accordance with what will be asked of the mapping in the future, as specified by the update flags) and for the given quadrature object. Subsequent calls to transform() or fill_fe_values() and friends will then receive back the object created here (with the same set of update flags and for the same quadrature object). Derived classes can therefore pre-compute some information in their get_data() function and store it in the internal data object.

The mapping classes do not keep track of the objects created by this function. Ownership will therefore rest with the caller.

An extensive discussion of the interaction between this function and FEValues can be found in the How Mapping, FiniteElement, and FEValues work together documentation module.

Parameters
 update_flags A set of flags that define what is expected of the mapping class in future calls to transform() or the fill_fe_values() group of functions. This set of flags may contain flags that mappings do not know how to deal with (e.g., for information that is in fact computed by the finite element classes, such as UpdateFlags::update_values). Derived classes will need to store these flags, or at least that subset of flags that will require the mapping to perform any actions in fill_fe_values(), in InternalDataBase::update_each. quadrature The quadrature object for which mapping information will have to be computed. This includes the locations and weights of quadrature points.
Returns
A pointer to a newly created object of type InternalDataBase (or a derived class). Ownership of this object passes to the calling function.
Note
C++ allows that virtual functions in derived classes may return pointers to objects not of type InternalDataBase but in fact pointers to objects of classes derived from InternalDataBase. (This feature is called "covariant return types".) This is useful in some contexts where the calling is within the derived class and will immediately make use of the returned object, knowing its real (derived) type.

Implements Mapping< dim, spacedim >.

Definition at line 94 of file mapping_cartesian.cc.

## ◆ get_face_data()

template<int dim, int spacedim>
 std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBase > MappingCartesian< dim, spacedim >::get_face_data ( const UpdateFlags update_flags, const Quadrature< dim - 1 > & quadrature ) const
overrideprivatevirtual

Like get_data(), but in preparation for later calls to transform() or fill_fe_face_values() that will need information about mappings from the reference face to a face of a concrete cell.

Parameters
 update_flags A set of flags that define what is expected of the mapping class in future calls to transform() or the fill_fe_values() group of functions. This set of flags may contain flags that mappings do not know how to deal with (e.g., for information that is in fact computed by the finite element classes, such as UpdateFlags::update_values). Derived classes will need to store these flags, or at least that subset of flags that will require the mapping to perform any actions in fill_fe_values(), in InternalDataBase::update_each. quadrature The quadrature object for which mapping information will have to be computed. This includes the locations and weights of quadrature points.
Returns
A pointer to a newly created object of type InternalDataBase (or a derived class). Ownership of this object passes to the calling function.
Note
C++ allows that virtual functions in derived classes may return pointers to objects not of type InternalDataBase but in fact pointers to objects of classes derived from InternalDataBase. (This feature is called "covariant return types".) This is useful in some contexts where the calling is within the derived class and will immediately make use of the returned object, knowing its real (derived) type.

Implements Mapping< dim, spacedim >.

Definition at line 113 of file mapping_cartesian.cc.

## ◆ get_subface_data()

template<int dim, int spacedim>
 std::unique_ptr< typename Mapping< dim, spacedim >::InternalDataBase > MappingCartesian< dim, spacedim >::get_subface_data ( const UpdateFlags update_flags, const Quadrature< dim - 1 > & quadrature ) const
overrideprivatevirtual

Like get_data() and get_face_data(), but in preparation for later calls to transform() or fill_fe_subface_values() that will need information about mappings from the reference face to a child of a face (i.e., subface) of a concrete cell.

Parameters
 update_flags A set of flags that define what is expected of the mapping class in future calls to transform() or the fill_fe_values() group of functions. This set of flags may contain flags that mappings do not know how to deal with (e.g., for information that is in fact computed by the finite element classes, such as UpdateFlags::update_values). Derived classes will need to store these flags, or at least that subset of flags that will require the mapping to perform any actions in fill_fe_values(), in InternalDataBase::update_each. quadrature The quadrature object for which mapping information will have to be computed. This includes the locations and weights of quadrature points.
Returns
A pointer to a newly created object of type InternalDataBase (or a derived class). Ownership of this object passes to the calling function.
Note
C++ allows that virtual functions in derived classes may return pointers to objects not of type InternalDataBase but in fact pointers to objects of classes derived from InternalDataBase. (This feature is called "covariant return types".) This is useful in some contexts where the calling is within the derived class and will immediately make use of the returned object, knowing its real (derived) type.

Implements Mapping< dim, spacedim >.

Definition at line 138 of file mapping_cartesian.cc.

## ◆ fill_fe_values()

template<int dim, int spacedim>
 CellSimilarity::Similarity MappingCartesian< dim, spacedim >::fill_fe_values ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const CellSimilarity::Similarity cell_similarity, const Quadrature< dim > & quadrature, const typename Mapping< dim, spacedim >::InternalDataBase & internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > & output_data ) const
overrideprivatevirtual

Definition at line 372 of file mapping_cartesian.cc.

## ◆ fill_fe_face_values()

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::fill_fe_face_values ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const unsigned int face_no, const Quadrature< dim - 1 > & quadrature, const typename Mapping< dim, spacedim >::InternalDataBase & internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > & output_data ) const
overrideprivatevirtual

Definition at line 437 of file mapping_cartesian.cc.

## ◆ fill_fe_subface_values()

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::fill_fe_subface_values ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const unsigned int face_no, const unsigned int subface_no, const Quadrature< dim - 1 > & quadrature, const typename Mapping< dim, spacedim >::InternalDataBase & internal_data, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > & output_data ) const
overrideprivatevirtual

Definition at line 508 of file mapping_cartesian.cc.

## ◆ update_cell_extents()

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::update_cell_extents ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const CellSimilarity::Similarity cell_similarity, const InternalData & data ) const
private

Update the cell_extents field of the incoming InternalData object with the size of the incoming cell.

Definition at line 163 of file mapping_cartesian.cc.

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::maybe_update_cell_quadrature_points ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const InternalData & data, std::vector< Point< dim >> & quadrature_points ) const
private

Compute the quadrature points if the UpdateFlags of the incoming InternalData object say that they should be updated.

Called from fill_fe_values.

Definition at line 199 of file mapping_cartesian.cc.

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::maybe_update_face_quadrature_points ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const unsigned int face_no, const InternalData & data, std::vector< Point< dim >> & quadrature_points ) const
private

Compute the quadrature points if the UpdateFlags of the incoming InternalData object say that they should be updated.

Called from fill_fe_face_values.

Definition at line 217 of file mapping_cartesian.cc.

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::maybe_update_subface_quadrature_points ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const unsigned int face_no, const unsigned int sub_no, const InternalData & data, std::vector< Point< dim >> & quadrature_points ) const
private

Compute the quadrature points if the UpdateFlags of the incoming InternalData object say that they should be updated.

Called from fill_fe_subface_values.

Definition at line 244 of file mapping_cartesian.cc.

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::transform_quadrature_points ( const typename Triangulation< dim, spacedim >::cell_iterator & cell, const InternalData & data, const typename QProjector< dim >::DataSetDescriptor & offset, std::vector< Point< dim >> & quadrature_points ) const
private

Transform quadrature points in InternalData to real space by scaling unit coordinates with cell_extends in each direction.

Called from the various maybe_update_*_quadrature_points functions.

Definition at line 278 of file mapping_cartesian.cc.

## ◆ maybe_update_normal_vectors()

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::maybe_update_normal_vectors ( const unsigned int face_no, const InternalData & data, std::vector< Tensor< 1, dim >> & normal_vectors ) const
private

Compute the normal vectors if the UpdateFlags of the incoming InternalData object say that they should be updated.

Definition at line 301 of file mapping_cartesian.cc.

## ◆ maybe_update_jacobian_derivatives()

template<int dim, int spacedim>
 void MappingCartesian< dim, spacedim >::maybe_update_jacobian_derivatives ( const InternalData & data, const CellSimilarity::Similarity cell_similarity, internal::FEValuesImplementation::MappingRelatedData< dim, spacedim > & output_data ) const
private

Since the Jacobian is constant for this mapping all derivatives of the Jacobian are identically zero. Fill these quantities with zeros if the corresponding update flags say that they should be updated.

Definition at line 320 of file mapping_cartesian.cc.

The documentation for this class was generated from the following files:
