LAPACKFullMatrix< number > Class Template Reference

#include <deal.II/lac/lapack_full_matrix.h>

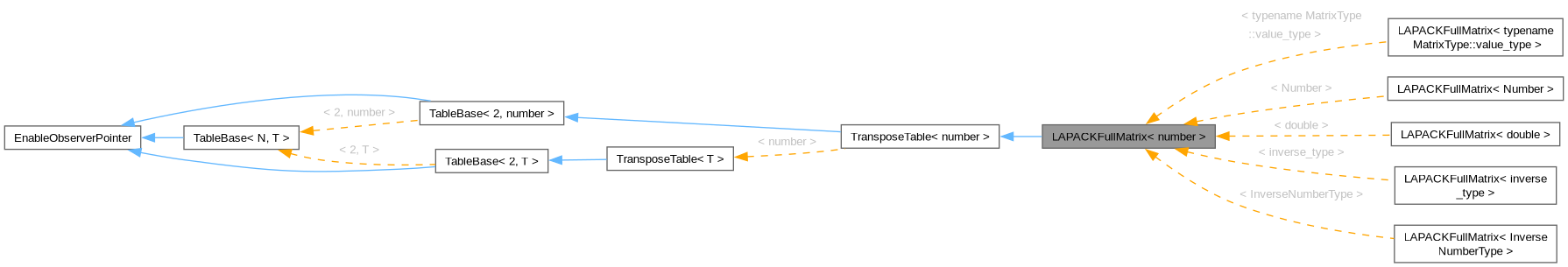

Inheritance diagram for LAPACKFullMatrix< number >:
[legend]

Public Types

using size_type = std::make_unsigned< types::blas_int >::type

using value_type = typename AlignedVector< number >::value_type

using reference = typename AlignedVector< number >::reference

using const_reference = typename AlignedVector< number >::const_reference

using const_iterator = MatrixTableIterators::Iterator< TransposeTable< number >, true, MatrixTableIterators::Storage::column_major >

using iterator = MatrixTableIterators::Iterator< TransposeTable< number >, false, MatrixTableIterators::Storage::column_major >


Public Member Functions

 LAPACKFullMatrix (const size_type size=0)

 LAPACKFullMatrix (const size_type rows, const size_type cols)

 LAPACKFullMatrix (const LAPACKFullMatrix &)

LAPACKFullMatrix< number > & operator= (const LAPACKFullMatrix< number > &)

template<typename number2 >
LAPACKFullMatrix< number > & operator= (const FullMatrix< number2 > &)

template<typename number2 >
LAPACKFullMatrix< number > & operator= (const SparseMatrix< number2 > &)

LAPACKFullMatrix< number > & operator= (const number d)

LAPACKFullMatrix< number > & operator*= (const number factor)

LAPACKFullMatrix< number > & operator/= (const number factor)

void set (const size_type i, const size_type j, const number value)

void add (const number a, const LAPACKFullMatrix< number > &B)

void rank1_update (const number a, const Vector< number > &v)

void apply_givens_rotation (const std::array< number, 3 > &csr, const size_type i, const size_type k, const bool left=true)

template<typename MatrixType >
void copy_from (const MatrixType &)

void reinit (const size_type size)

void grow_or_shrink (const size_type size)

void remove_row_and_column (const size_type row, const size_type col)

void reinit (const size_type rows, const size_type cols)

void set_property (const LAPACKSupport::Property property)

size_type m () const

size_type n () const

template<typename MatrixType >
void fill (const MatrixType &src, const size_type dst_offset_i=0, const size_type dst_offset_j=0, const size_type src_offset_i=0, const size_type src_offset_j=0, const number factor=1., const bool transpose=false)

template<typename number2 >
void vmult (Vector< number2 > &w, const Vector< number2 > &v, const bool adding=false) const

void vmult (Vector< number > &w, const Vector< number > &v, const bool adding=false) const

template<typename number2 >
void vmult_add (Vector< number2 > &w, const Vector< number2 > &v) const

void vmult_add (Vector< number > &w, const Vector< number > &v) const

template<typename number2 >
void Tvmult (Vector< number2 > &w, const Vector< number2 > &v, const bool adding=false) const

void Tvmult (Vector< number > &w, const Vector< number > &v, const bool adding=false) const

template<typename number2 >
void Tvmult_add (Vector< number2 > &w, const Vector< number2 > &v) const

void Tvmult_add (Vector< number > &w, const Vector< number > &v) const

void mmult (LAPACKFullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void mmult (FullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void Tmmult (LAPACKFullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void Tmmult (FullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void Tmmult (LAPACKFullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const Vector< number > &V, const bool adding=false) const

void mTmult (LAPACKFullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void mTmult (FullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void TmTmult (LAPACKFullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void TmTmult (FullMatrix< number > &C, const LAPACKFullMatrix< number > &B, const bool adding=false) const

void transpose (LAPACKFullMatrix< number > &B) const

void scale_rows (const Vector< number > &V)

void compute_lu_factorization ()

void compute_cholesky_factorization ()

number reciprocal_condition_number (const number l1_norm) const

number reciprocal_condition_number () const

number determinant () const

number l1_norm () const

number linfty_norm () const

number frobenius_norm () const

number trace () const

void invert ()

void solve (Vector< number > &v, const bool transposed=false) const

void solve (LAPACKFullMatrix< number > &B, const bool transposed=false) const

void compute_eigenvalues (const bool right_eigenvectors=false, const bool left_eigenvectors=false)

void compute_eigenvalues_symmetric (const number lower_bound, const number upper_bound, const number abs_accuracy, Vector< number > &eigenvalues, FullMatrix< number > &eigenvectors)

void compute_generalized_eigenvalues_symmetric (LAPACKFullMatrix< number > &B, const number lower_bound, const number upper_bound, const number abs_accuracy, Vector< number > &eigenvalues, std::vector< Vector< number > > &eigenvectors, const types::blas_int itype=1)

void compute_generalized_eigenvalues_symmetric (LAPACKFullMatrix< number > &B, std::vector< Vector< number > > &eigenvectors, const types::blas_int itype=1)

void compute_svd ()

void compute_inverse_svd (const double threshold=0.)

void compute_inverse_svd_with_kernel (const unsigned int kernel_size)

std::complex< typename numbers::NumberTraits< number >::real_type > eigenvalue (const size_type i) const

FullMatrix< std::complex< typename numbers::NumberTraits< number >::real_type > > get_right_eigenvectors () const

FullMatrix< std::complex< typename numbers::NumberTraits< number >::real_type > > get_left_eigenvectors () const

number singular_value (const size_type i) const

const LAPACKFullMatrix< number > & get_svd_u () const

const LAPACKFullMatrix< number > & get_svd_vt () const

void print_formatted (std::ostream &out, const unsigned int precision=3, const bool scientific=true, const unsigned int width=0, const char *zero_string=" ", const double denominator=1., const double threshold=0.) const

void reinit (const size_type size1, const size_type size2, const bool omit_default_initialization=false)

void reinit (const TableIndices< N > &new_size, const bool omit_default_initialization=false)

const_reference operator() (const size_type i, const size_type j) const

reference operator() (const size_type i, const size_type j)

AlignedVector< T >::reference operator() (const TableIndices< N > &indices)

AlignedVector< T >::const_reference operator() (const TableIndices< N > &indices) const

size_type n_rows () const

size_type n_cols () const

iterator begin ()

const_iterator begin () const

iterator end ()

const_iterator end () const

bool operator== (const TableBase< N, T > &T2) const

void reset_values ()

void clear ()

size_type size (const unsigned int i) const

const TableIndices< N > & size () const

size_type n_elements () const

bool empty () const

template<typename InputIterator >
void fill (InputIterator entries, const bool C_style_indexing=true)

void fill (const T &value)

void replicate_across_communicator (const MPI_Comm communicator, const unsigned int root_process)

void swap (TableBase< N, T > &v)

std::size_t memory_consumption () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Protected Member Functions

reference el (const size_type i, const size_type j)

const_reference el (const size_type i, const size_type j) const

AlignedVector< T >::reference el (const TableIndices< N > &indices)

AlignedVector< T >::const_reference el (const TableIndices< N > &indices) const

size_type position (const TableIndices< N > &indices) const


Protected Attributes

AlignedVector< T > values

TableIndices< N > table_size


Private Types

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

number norm (const char type) const

void check_no_subscribers () const noexcept


Private Attributes

LAPACKSupport::State state

LAPACKSupport::Property property

std::vector< number > work

std::vector< types::blas_intiwork

std::vector< types::blas_intipiv

std::vector< number > inv_work

std::vector< typename numbers::NumberTraits< number >::real_type > wr

std::vector< number > wi

std::vector< number > vl

std::vector< number > vr

std::unique_ptr< LAPACKFullMatrix< number > > svd_u

std::unique_ptr< LAPACKFullMatrix< number > > svd_vt

Threads::Mutex mutex

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Detailed Description

template<typename number>
class LAPACKFullMatrix< number >

A variant of FullMatrix using LAPACK functions wherever possible. In order to do this, the matrix is stored in transposed order. The element access functions hide this fact by reverting the transposition.

Note
In order to perform LAPACK functions, the class contains a lot of auxiliary data in the private section. The names of these data vectors are usually the names chosen for the arguments in the LAPACK documentation.

Definition at line 59 of file lapack_full_matrix.h.

Member Typedef Documentation

◆ size_type

template<typename number >
using LAPACKFullMatrix< number >::size_type = std::make_unsigned<types::blas_int>::type

Declare type for container size.

Definition at line 65 of file lapack_full_matrix.h.

◆ value_type

using TransposeTable< number >::value_type = typename AlignedVector<number >::value_type
inherited

Typedef for the values in the table.

Definition at line 1986 of file table.h.

◆ reference

using TransposeTable< number >::reference = typename AlignedVector<number >::reference
inherited

Typedef for the references in the table.

Definition at line 1991 of file table.h.

◆ const_reference

using TransposeTable< number >::const_reference = typename AlignedVector<number >::const_reference
inherited

Typedef for the constant references in the table.

Definition at line 1996 of file table.h.

◆ const_iterator

Typedef for a constant iterator that traverses the table in column-major order.

Definition at line 2002 of file table.h.

◆ iterator

Typedef for an iterator that traverses the table in column-major order.

Definition at line 2010 of file table.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 230 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 235 of file subscriptor.h.

Constructor & Destructor Documentation

◆ LAPACKFullMatrix() [1/3]

template<typename number >
LAPACKFullMatrix< number >::LAPACKFullMatrix ( const size_type  size = 0)
explicit

Constructor. Initialize the matrix as a square matrix with dimension size.

In order to avoid the implicit conversion of integers and other types to a matrix, this constructor is declared explicit.

By default, no memory is allocated.

Definition at line 248 of file lapack_full_matrix.cc.

◆ LAPACKFullMatrix() [2/3]

template<typename number >
LAPACKFullMatrix< number >::LAPACKFullMatrix ( const size_type  rows,
const size_type  cols
)

Constructor. Initialize the matrix as a rectangular matrix \(\rm{rows} \times \rm{cols}\).

Definition at line 257 of file lapack_full_matrix.cc.

◆ LAPACKFullMatrix() [3/3]

template<typename number >
LAPACKFullMatrix< number >::LAPACKFullMatrix ( const LAPACKFullMatrix< number > &  M)

Copy constructor. This constructor does a deep copy of the matrix. Therefore, it poses a possible efficiency problem, if for example, function arguments are passed by value rather than by reference. Unfortunately, we can't mark this copy constructor explicit, since that prevents the use of this class in containers, such as std::vector. The responsibility to check performance of programs must therefore remain with the user of this class.

Definition at line 266 of file lapack_full_matrix.cc.

Member Function Documentation

◆ operator=() [1/4]

template<typename number >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator= ( const LAPACKFullMatrix< number > &  M)

Assignment operator.

Definition at line 276 of file lapack_full_matrix.cc.

◆ operator=() [2/4]

template<typename number >
template<typename number2 >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator= ( const FullMatrix< number2 > &  M)

Assignment operator from a regular FullMatrix.

Note
Since LAPACK expects matrices in transposed order, this transposition is included here.

Definition at line 384 of file lapack_full_matrix.cc.

◆ operator=() [3/4]

template<typename number >
template<typename number2 >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator= ( const SparseMatrix< number2 > &  M)

Assignment operator from a regular SparseMatrix.

Note
Since LAPACK expects matrices in transposed order, this transposition is included here.

Definition at line 402 of file lapack_full_matrix.cc.

◆ operator=() [4/4]

template<typename number >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator= ( const number  d)

This operator assigns a scalar to a matrix. To avoid confusion with constructors, zero (when cast to the number type) is the only value allowed for d.

Definition at line 419 of file lapack_full_matrix.cc.

◆ operator*=()

template<typename number >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator*= ( const number  factor)

This operator multiplies all entries by a fixed factor.

Definition at line 435 of file lapack_full_matrix.cc.

◆ operator/=()

template<typename number >
LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::operator/= ( const number  factor)

This operator divides all entries by a fixed factor.

Definition at line 464 of file lapack_full_matrix.cc.

◆ set()

template<typename number >
void LAPACKFullMatrix< number >::set ( const size_type  i,
const size_type  j,
const number  value
)
inline

Set a particular entry of the matrix to a value. Thus, calling A.set(1,2,3.141); is entirely equivalent to the operation A(1,2) = 3.141;. This function exists for compatibility with the various sparse matrix objects.

Parameters
iThe row index of the element to be set.
jThe column index of the element to be set.
valueThe value to be written into the element.

Definition at line 1033 of file lapack_full_matrix.h.

◆ add()

template<typename number >
void LAPACKFullMatrix< number >::add ( const number  a,
const LAPACKFullMatrix< number > &  B
)

Simple addition of a scaled matrix, i.e. \(\mathbf A \mathrel{+}= a \, \mathbf B\).

Definition at line 495 of file lapack_full_matrix.cc.

◆ rank1_update()

template<typename number >
void LAPACKFullMatrix< number >::rank1_update ( const number  a,
const Vector< number > &  v
)

Perform a rank-1 update of a symmetric matrix \( \mathbf A \leftarrow \mathbf A + a \, \mathbf v \mathbf v^T \).

This function also works for Cholesky factorization. In that case, updating ( \(a>0\)) is performed via Givens rotations, whereas downdating ( \(a<0\)) via hyperbolic rotations. Note that the latter case might lead to a negative definite matrix in which case the error will be thrown (because Cholesky factorizations are only valid for symmetric and positive definite matrices).

Definition at line 622 of file lapack_full_matrix.cc.

◆ apply_givens_rotation()

template<typename number >
void LAPACKFullMatrix< number >::apply_givens_rotation ( const std::array< number, 3 > &  csr,
const size_type  i,
const size_type  k,
const bool  left = true
)

Apply Givens rotation csr (a triplet of cosine, sine and radius, see Utilities::LinearAlgebra::givens_rotation() for the definition of the rotation matrix \(\mathbf G\)) to this matrix in the plane spanned by the i'th and k'th unit vectors. If left is true, the rotation is applied from left \(\mathbf A \leftarrow \mathbf G \mathbf A\) and only rows i and k are affected. Otherwise, transpose of the rotation matrix is applied from right \(\mathbf A \leftarrow \mathbf A \mathbf G^T\) and only columns i and k are affected.

Definition at line 312 of file lapack_full_matrix.cc.

◆ copy_from()

template<typename number >
template<typename MatrixType >
void LAPACKFullMatrix< number >::copy_from ( const MatrixType &  M)
inline

Assignment from different matrix classes, performing the usual conversion to the transposed format expected by LAPACK. This assignment operator uses iterators of the typename MatrixType. Therefore, sparse matrices are possible sources.

Definition at line 1063 of file lapack_full_matrix.h.

◆ reinit() [1/4]

template<typename number >
void LAPACKFullMatrix< number >::reinit ( const size_type  size)

Regenerate the current matrix by one that has the same properties as if it were created by the constructor of this class with the same argument list as this present function.

Definition at line 288 of file lapack_full_matrix.cc.

◆ grow_or_shrink()

template<typename number >
void LAPACKFullMatrix< number >::grow_or_shrink ( const size_type  size)

Same as above but will preserve the values of matrix upon resizing. The original values of the matrix are kept on increasing the size

\[ \mathbf A \rightarrow \left( \begin{array}{cc} \mathbf A & \mathbf 0 \\ \mathbf 0 & \mathbf 0 \end{array} \right) \]

Whereas if the new size is smaller, the matrix will contain the upper left block of the original one

\[ \left( \begin{array}{cc} \mathbf A_{11} & \mathbf A_{12} \\ \mathbf A_{21} & \mathbf A_{22} \end{array} \right) \rightarrow \mathbf A_{11} \]

Definition at line 298 of file lapack_full_matrix.cc.

◆ remove_row_and_column()

template<typename number >
void LAPACKFullMatrix< number >::remove_row_and_column ( const size_type  row,
const size_type  col
)

Remove row row and column col from the matrix.

\[ \left( \begin{array}{ccc} \mathbf A_{11} & \mathbf a_{12} & \mathbf A_{13} \\ \mathbf a_{21}^T & a_{22} & \mathbf a_{23}^T \\ \mathbf A_{31} & \mathbf a_{32} & \mathbf A_{33} \end{array} \right) \rightarrow \left( \begin{array}{cc} \mathbf A_{11} & \mathbf A_{13} \\ \mathbf A_{31} & \mathbf A_{33} \end{array} \right) \]

Definition at line 346 of file lapack_full_matrix.cc.

◆ reinit() [2/4]

template<typename number >
void LAPACKFullMatrix< number >::reinit ( const size_type  rows,
const size_type  cols
)

Regenerate the current matrix by one that has the same properties as if it were created by the constructor of this class with the same argument list as this present function.

Definition at line 373 of file lapack_full_matrix.cc.

◆ set_property()

template<typename number >
void LAPACKFullMatrix< number >::set_property ( const LAPACKSupport::Property  property)

Assign property to this matrix.

Definition at line 1411 of file lapack_full_matrix.cc.

◆ m()

template<typename number >
LAPACKFullMatrix< number >::size_type LAPACKFullMatrix< number >::m
inline

Return the dimension of the codomain (or range) space.

Note
The matrix is of dimension \(m \times n\).

Definition at line 1044 of file lapack_full_matrix.h.

◆ n()

template<typename number >
LAPACKFullMatrix< number >::size_type LAPACKFullMatrix< number >::n
inline

Return the dimension of the domain space.

Note
The matrix is of dimension \(m \times n\).

Definition at line 1053 of file lapack_full_matrix.h.

◆ fill() [1/3]

template<typename number >
template<typename MatrixType >
void LAPACKFullMatrix< number >::fill ( const MatrixType &  src,
const size_type  dst_offset_i = 0,
const size_type  dst_offset_j = 0,
const size_type  src_offset_i = 0,
const size_type  src_offset_j = 0,
const number  factor = 1.,
const bool  transpose = false
)
inline

Fill rectangular block.

A rectangular block of the matrix src is copied into this. The upper left corner of the block being copied is (src_offset_i,src_offset_j). The upper left corner of the copied block is (dst_offset_i,dst_offset_j). The size of the rectangular block being copied is the maximum size possible, determined either by the size of this or src.

The final two arguments allow to enter a multiple of the source or its transpose.

Definition at line 1087 of file lapack_full_matrix.h.

◆ vmult() [1/2]

template<typename number >
template<typename number2 >
void LAPACKFullMatrix< number >::vmult ( Vector< number2 > &  w,
const Vector< number2 > &  v,
const bool  adding = false
) const

Matrix-vector-multiplication.

Depending on previous transformations recorded in state, the result of this function is one of

The optional parameter adding determines, whether the result is stored in the vector \(\mathbf w = \mathbf A \cdot \mathbf v\) or added to it \(\mathbf w \mathrel{+}= \mathbf A \cdot \mathbf v\).

Note
Source and destination must not be the same vector.
The template with number2 only exists for compile-time compatibility with FullMatrix. Only the case number2 = number is implemented due to limitations in the underlying LAPACK interface. All other variants throw an error upon invocation.

Definition at line 1122 of file lapack_full_matrix.h.

◆ vmult() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::vmult ( Vector< number > &  w,
const Vector< number > &  v,
const bool  adding = false
) const

Specialization of above function for compatible Vector::value_type.

Definition at line 662 of file lapack_full_matrix.cc.

◆ vmult_add() [1/2]

template<typename number >
template<typename number2 >
void LAPACKFullMatrix< number >::vmult_add ( Vector< number2 > &  w,
const Vector< number2 > &  v
) const

Adding Matrix-vector-multiplication \(\mathbf w \mathrel{+}= \mathbf A \cdot \mathbf v\).

See the documentation of vmult() for details on the implementation.

Definition at line 1136 of file lapack_full_matrix.h.

◆ vmult_add() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::vmult_add ( Vector< number > &  w,
const Vector< number > &  v
) const

Specialization of above function for compatible Vector::value_type.

Definition at line 937 of file lapack_full_matrix.cc.

◆ Tvmult() [1/2]

template<typename number >
template<typename number2 >
void LAPACKFullMatrix< number >::Tvmult ( Vector< number2 > &  w,
const Vector< number2 > &  v,
const bool  adding = false
) const

Transpose matrix-vector-multiplication.

The optional parameter adding determines, whether the result is stored in the vector \(\mathbf w = \mathbf A^T \cdot \mathbf v\) or added to it \(\mathbf w \mathrel{+}= \mathbf A^T \cdot \mathbf v\).

See the documentation of vmult() for details on the implementation.

Definition at line 1149 of file lapack_full_matrix.h.

◆ Tvmult() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::Tvmult ( Vector< number > &  w,
const Vector< number > &  v,
const bool  adding = false
) const

Specialization of above function for compatible Vector::value_type.

Definition at line 798 of file lapack_full_matrix.cc.

◆ Tvmult_add() [1/2]

template<typename number >
template<typename number2 >
void LAPACKFullMatrix< number >::Tvmult_add ( Vector< number2 > &  w,
const Vector< number2 > &  v
) const

Adding transpose matrix-vector-multiplication \(\mathbf w \mathrel{+}= \mathbf A^T \cdot \mathbf v\).

See the documentation of vmult() for details on the implementation.

Definition at line 1163 of file lapack_full_matrix.h.

◆ Tvmult_add() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::Tvmult_add ( Vector< number > &  w,
const Vector< number > &  v
) const

Specialization of above function for compatible Vector::value_type.

Definition at line 947 of file lapack_full_matrix.cc.

◆ mmult() [1/2]

template<typename number >
void LAPACKFullMatrix< number >::mmult ( LAPACKFullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Matrix-matrix-multiplication.

The optional parameter adding determines, whether the result is stored in the matrix \(\mathbf C = \mathbf A \cdot \mathbf B\) or added to it \(\mathbf C \mathrel{+}= \mathbf A \cdot \mathbf B\).

Note
It is assumed that A and B have compatible sizes and that C already has the right size.

This function uses the BLAS function Xgemm.

Definition at line 957 of file lapack_full_matrix.cc.

◆ mmult() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::mmult ( FullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Same as before, but stores the result in a FullMatrix, not in a LAPACKFullMatrix.

Definition at line 992 of file lapack_full_matrix.cc.

◆ Tmmult() [1/3]

template<typename number >
void LAPACKFullMatrix< number >::Tmmult ( LAPACKFullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Matrix-matrix-multiplication using transpose of this.

The optional parameter adding determines, whether the result is stored in the matrix \(\mathbf C = \mathbf A^T \cdot \mathbf B\) or added to it \(\mathbf C \mathrel{+}= \mathbf A^T \cdot \mathbf B\).

Note
It is assumed that A and B have compatible sizes and that C already has the right size.
This function uses the BLAS function Xgemm.

Definition at line 1128 of file lapack_full_matrix.cc.

◆ Tmmult() [2/3]

template<typename number >
void LAPACKFullMatrix< number >::Tmmult ( FullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Same as before, but stores the result in a FullMatrix, not in a LAPACKFullMatrix.

Definition at line 1186 of file lapack_full_matrix.cc.

◆ Tmmult() [3/3]

template<typename number >
void LAPACKFullMatrix< number >::Tmmult ( LAPACKFullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const Vector< number > &  V,
const bool  adding = false
) const

Matrix-matrix-multiplication using transpose of this and a diagonal vector V.

If the adding=false then the result is stored in the matrix \(\mathbf C = \mathbf A^T \cdot \rm{diag}(\mathbf V) \cdot \mathbf B\) otherwise it is added \(\mathbf C \mathrel{+}= \mathbf A^T \cdot \rm{diag}(\mathbf V) \cdot \mathbf B\).

Note
It is assumed that A, B and V have compatible sizes and that C already has the right size.
This function is not provided by LAPACK. The function first forms \(\rm{diag}(\mathbf V) \cdot \mathbf B\) product and then uses the Xgemm function.

Definition at line 1028 of file lapack_full_matrix.cc.

◆ mTmult() [1/2]

template<typename number >
void LAPACKFullMatrix< number >::mTmult ( LAPACKFullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Matrix-matrix-multiplication using transpose of B.

The optional parameter adding determines, whether the result is stored in the matrix \(\mathbf C = \mathbf A \cdot \mathbf B^T\) or added to it \(\mathbf C \mathrel{+}= \mathbf A \cdot \mathbf B^T\).

Note
It is assumed that A and B have compatible sizes and that C already has the right size.
This function uses the BLAS function Xgemm.

Definition at line 1222 of file lapack_full_matrix.cc.

◆ mTmult() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::mTmult ( FullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Same as before, but stores the result in a FullMatrix, not in a LAPACKFullMatrix.

Definition at line 1280 of file lapack_full_matrix.cc.

◆ TmTmult() [1/2]

template<typename number >
void LAPACKFullMatrix< number >::TmTmult ( LAPACKFullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Matrix-matrix-multiplication using transpose of this and B.

The optional parameter adding determines, whether the result is stored in the matrix \(\mathbf C = \mathbf A^T \cdot \mathbf B^T\) or added to it \(\mathbf C \mathrel{+}= \mathbf A^T \cdot \mathbf B^T\).

Note
It is assumed that A and B have compatible sizes and that C already has the right size.
This function uses the BLAS function Xgemm.

Definition at line 1316 of file lapack_full_matrix.cc.

◆ TmTmult() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::TmTmult ( FullMatrix< number > &  C,
const LAPACKFullMatrix< number > &  B,
const bool  adding = false
) const

Same as before, but stores the result in a FullMatrix, not in a LAPACKFullMatrix.

Definition at line 1351 of file lapack_full_matrix.cc.

◆ transpose()

template<typename number >
void LAPACKFullMatrix< number >::transpose ( LAPACKFullMatrix< number > &  B) const

Performs out-place transposition. Matrix B should be appropriately sized.

Note
for complex number types, conjugate transpose will be performed.
If deal.II is configured with Intel-MKL, mkl_?omatcopy will be used, otherwise transposition is done element by element.

Definition at line 1090 of file lapack_full_matrix.cc.

◆ scale_rows()

template<typename number >
void LAPACKFullMatrix< number >::scale_rows ( const Vector< number > &  V)

Scale rows of this matrix by V . This is equivalent to premultiplication with a diagonal matrix \(\mathbf A\leftarrow {\rm diag}(\mathbf V)\mathbf A\).

Definition at line 1111 of file lapack_full_matrix.cc.

◆ compute_lu_factorization()

template<typename number >
void LAPACKFullMatrix< number >::compute_lu_factorization

Compute the LU factorization of the matrix using LAPACK function Xgetrf.

Definition at line 1387 of file lapack_full_matrix.cc.

◆ compute_cholesky_factorization()

template<typename number >
void LAPACKFullMatrix< number >::compute_cholesky_factorization

Compute the Cholesky factorization of the matrix using LAPACK function Xpotrf.

Note
The factorization is stored in the lower-triangular part of the matrix.

Definition at line 1501 of file lapack_full_matrix.cc.

◆ reciprocal_condition_number() [1/2]

template<typename number >
number LAPACKFullMatrix< number >::reciprocal_condition_number ( const number  l1_norm) const

Estimate the reciprocal of the condition number \(1/k(\mathbf A)\) in \(L_1\) norm ( \(1/(||\mathbf A||_1 \, ||\mathbf A^{-1}||_1)\)) of a symmetric positive definite matrix using Cholesky factorization. This function can only be called if the matrix is already factorized.

Note
The condition number \(k(\mathbf A)\) can be used to estimate the numerical error related to the matrix inversion or the solution of the system of linear algebraic equations as error = std::numeric_limits<Number>::epsilon * k. Alternatively one can get the number of accurate digits std::floor(std::log10(k)).
The function computes reciprocal of the condition number to avoid possible overflow if the matrix is nearly singular.
Parameters
[in]l1_normIs the \(L_1\) norm of the matrix before calling Cholesky factorization. It can be obtained by calling l1_norm().

Definition at line 1528 of file lapack_full_matrix.cc.

◆ reciprocal_condition_number() [2/2]

template<typename number >
number LAPACKFullMatrix< number >::reciprocal_condition_number

Estimate the reciprocal of the condition number \(1/k(\mathbf A)\) in \(L_1\) norm for triangular matrices. The matrix has to have the LAPACKSupport::Property set to either LAPACKSupport::Property::upper_triangular or LAPACKSupport::Property::lower_triangular, see set_property().

Definition at line 1561 of file lapack_full_matrix.cc.

◆ determinant()

template<typename number >
number LAPACKFullMatrix< number >::determinant

Compute the determinant of a matrix. As it requires the LU factorization of the matrix, this function can only be called after compute_lu_factorization() has been called.

Definition at line 1874 of file lapack_full_matrix.cc.

◆ l1_norm()

template<typename number >
number LAPACKFullMatrix< number >::l1_norm

Compute \(L_1\) norm.

Definition at line 1420 of file lapack_full_matrix.cc.

◆ linfty_norm()

template<typename number >
number LAPACKFullMatrix< number >::linfty_norm

Compute \(L_\infty\) norm.

Definition at line 1430 of file lapack_full_matrix.cc.

◆ frobenius_norm()

template<typename number >
number LAPACKFullMatrix< number >::frobenius_norm

Compute Frobenius norm

Definition at line 1440 of file lapack_full_matrix.cc.

◆ trace()

template<typename number >
number LAPACKFullMatrix< number >::trace

Compute trace of the matrix, i.e. the sum of the diagonal values. Obviously, the matrix needs to be quadratic for this function.

Definition at line 1483 of file lapack_full_matrix.cc.

◆ invert()

template<typename number >
void LAPACKFullMatrix< number >::invert

Invert the matrix by first computing an LU/Cholesky factorization with the LAPACK function Xgetrf/Xpotrf and then building the actual inverse using Xgetri/Xpotri.

Definition at line 1720 of file lapack_full_matrix.cc.

◆ solve() [1/2]

template<typename number >
void LAPACKFullMatrix< number >::solve ( Vector< number > &  v,
const bool  transposed = false
) const

Solve the linear system with right hand side v and put the solution back to v. The matrix should be either triangular or LU/Cholesky factorization should be previously computed.

The flag transposed indicates whether the solution of the transposed system is to be performed.

Definition at line 1763 of file lapack_full_matrix.cc.

◆ solve() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::solve ( LAPACKFullMatrix< number > &  B,
const bool  transposed = false
) const

Same as above but for multiple right hand sides (as many as there are columns in the matrix B).

Definition at line 1806 of file lapack_full_matrix.cc.

◆ compute_eigenvalues()

template<typename number >
void LAPACKFullMatrix< number >::compute_eigenvalues ( const bool  right_eigenvectors = false,
const bool  left_eigenvectors = false
)

Compute eigenvalues of the matrix. After this routine has been called, eigenvalues can be retrieved using the eigenvalue() function. The matrix itself will be LAPACKSupport::unusable after this operation.

The optional arguments allow to compute left and right eigenvectors as well.

Note that the function does not return the computed eigenvalues right away since that involves copying data around between the output arrays of the LAPACK functions and any return array. This is often unnecessary since one may not be interested in all eigenvalues at once, but for example only the extreme ones. In that case, it is cheaper to just have this function compute the eigenvalues and have a separate function that returns whatever eigenvalue is requested.

Note
Calls the LAPACK function Xgeev.

Definition at line 1906 of file lapack_full_matrix.cc.

◆ compute_eigenvalues_symmetric()

template<typename number >
void LAPACKFullMatrix< number >::compute_eigenvalues_symmetric ( const number  lower_bound,
const number  upper_bound,
const number  abs_accuracy,
Vector< number > &  eigenvalues,
FullMatrix< number > &  eigenvectors
)

Compute eigenvalues and eigenvectors of a real symmetric matrix. Only eigenvalues in the interval \((\rm{lower\_bound}, \rm{upper\_bound}]\) are computed with the absolute tolerance \(\rm abs\_accuracy\). An approximate eigenvalue is accepted as converged when it is determined to lie in an interval \([a,b]\) of width less than or equal to \(\rm{abs\_accuracy} + eps * \rm{max}(|a|,|b|)\), where \(eps\) is the machine precision. If \(\rm{abs\_accuracy}\) is less than or equal to zero, then \(eps\,|\mathbf{T}|_1\) will be used in its place, where \(|\mathbf{T}|_1\) is the 1-norm of the tridiagonal matrix obtained by reducing \(\mathbf A\) to tridiagonal form. Eigenvalues will be computed most accurately when \(\rm{abs\_accuracy}\) is set to twice the underflow threshold, not zero. After this routine has been called, all eigenvalues in \((\rm{lower\_bound}, \rm{upper\_bound}]\) will be stored in eigenvalues and the corresponding eigenvectors will be stored in the columns of eigenvectors, whose dimension is set accordingly.

Note
Calls the LAPACK function Xsyevx.

Definition at line 2105 of file lapack_full_matrix.cc.

◆ compute_generalized_eigenvalues_symmetric() [1/2]

template<typename number >
void LAPACKFullMatrix< number >::compute_generalized_eigenvalues_symmetric ( LAPACKFullMatrix< number > &  B,
const number  lower_bound,
const number  upper_bound,
const number  abs_accuracy,
Vector< number > &  eigenvalues,
std::vector< Vector< number > > &  eigenvectors,
const types::blas_int  itype = 1
)

Compute generalized eigenvalues and eigenvectors of a real generalized symmetric eigenproblem of the form

  • itype = 1: \(\mathbf A \cdot \mathbf x=\lambda \mathbf B \cdot \mathbf x\)
  • itype = 2: \(\mathbf A \cdot \mathbf B \cdot \mathbf x=\lambda \mathbf x\)
  • itype = 3: \(\mathbf B \cdot \mathbf A \cdot \mathbf x=\lambda \mathbf x\)

where \(\mathbf A\) is this matrix. \(\mathbf A\) and \(\mathbf B\) are assumed to be symmetric, and \(\mathbf B\) has to be positive definite. Only eigenvalues in the interval \((\rm{lower\_bound}, \rm{upper\_bound}]\) are computed with the absolute tolerance \(\rm{abs\_accuracy}\). An approximate eigenvalue is accepted as converged when it is determined to lie in an interval \([a,b]\) of width less than or equal to \(\rm{abs\_accuracy} + eps * \rm{max}( |a|,|b| )\), where \(eps\) is the machine precision. If \(\rm{abs\_accuracy}\) is less than or equal to zero, then \(eps \, |\mathbf{T}|_1\) will be used in its place, where \(|\mathbf{T}|_1\) is the 1-norm of the tridiagonal matrix obtained by reducing \(\mathbf A\) to tridiagonal form. Eigenvalues will be computed most accurately when \(\rm{abs\_accuracy}\) is set to twice the underflow threshold, not zero. After this routine has been called, all eigenvalues in \((\rm{lower\_bound}, \rm{upper\_bound}]\) will be stored in eigenvalues and the corresponding eigenvectors will be stored in eigenvectors, whose dimension is set accordingly.

Note
Calls the LAPACK function Xsygvx.

Definition at line 2237 of file lapack_full_matrix.cc.

◆ compute_generalized_eigenvalues_symmetric() [2/2]

template<typename number >
void LAPACKFullMatrix< number >::compute_generalized_eigenvalues_symmetric ( LAPACKFullMatrix< number > &  B,
std::vector< Vector< number > > &  eigenvectors,
const types::blas_int  itype = 1
)

Same as the other compute_generalized_eigenvalues_symmetric function except that all eigenvalues are computed and the tolerance is set automatically. Note that this function does not return the computed eigenvalues right away since that involves copying data around between the output arrays of the LAPACK functions and any return array. This is often unnecessary since one may not be interested in all eigenvalues at once, but for example only the extreme ones. In that case, it is cheaper to just have this function compute the eigenvalues and have a separate function that returns whatever eigenvalue is requested. Eigenvalues can be retrieved using the eigenvalue() function. The number of computed eigenvectors is equal to eigenvectors.size()

Note
Calls the LAPACK function Xsygv.

Definition at line 2395 of file lapack_full_matrix.cc.

◆ compute_svd()

template<typename number >
void LAPACKFullMatrix< number >::compute_svd

Compute the singular value decomposition of the matrix using LAPACK function Xgesdd.

Requires that the state is LAPACKSupport::matrix, fills the data members wr, svd_u, and svd_vt, and leaves the object in the state LAPACKSupport::svd.

The singular value decomposition factorizes the provided matrix (A) into three parts: U, sigma, and the transpose of V (V^T), such that A = U sigma V^T. Sigma is a MxN matrix which contains the singular values of A on the diagonal while all the other elements are zero. U is a MxM orthogonal matrix containing the left singular vectors corresponding to the singular values of A. V is a NxN orthonal matrix containing the right singular vectors corresponding the singular values of A.

Note that the variable svd_vt contains the transpose of V and can be accessed by get_svd_vt(), while U is accessed with get_svd_u().

Definition at line 1599 of file lapack_full_matrix.cc.

◆ compute_inverse_svd()

template<typename number >
void LAPACKFullMatrix< number >::compute_inverse_svd ( const double  threshold = 0.)

Compute the inverse of the matrix by singular value decomposition.

Requires that state is either LAPACKSupport::matrix or LAPACKSupport::svd. In the first case, this function calls compute_svd(). After this function, the object will have the state LAPACKSupport::inverse_svd.

For a singular value decomposition, the inverse is simply computed by replacing all singular values by their reciprocal values. If the matrix does not have maximal rank, singular values 0 are not touched, thus computing the minimal norm right inverse of the matrix.

The parameter threshold determines, when a singular value should be considered zero. It is the ratio of the smallest to the largest nonzero singular value \(s_{max}\). Thus, the inverses of all singular values less than \(s_{max}/\rm{threshold}\) will be set to zero.

Definition at line 1676 of file lapack_full_matrix.cc.

◆ compute_inverse_svd_with_kernel()

template<typename number >
void LAPACKFullMatrix< number >::compute_inverse_svd_with_kernel ( const unsigned int  kernel_size)

Same as above but provide the size of the kernel instead of a threshold, i.e. the kernel_size smallest eigenvalues.

Definition at line 1699 of file lapack_full_matrix.cc.

◆ eigenvalue()

template<typename number >
std::complex< typename numbers::NumberTraits< number >::real_type > LAPACKFullMatrix< number >::eigenvalue ( const size_type  i) const
inline

Retrieve eigenvalue after compute_eigenvalues() was called. The return type is always a complex number: In case the underlying matrix is real-valued, the type std::complex<number> is returned, whereas number is returned for complex numbers.

Definition at line 1199 of file lapack_full_matrix.h.

◆ get_right_eigenvectors()

template<typename number >
FullMatrix< std::complex< typename numbers::NumberTraits< number >::real_type > > LAPACKFullMatrix< number >::get_right_eigenvectors

After a call to compute_eigenvalues(), this function returns the \(n\times n\) matrix of (right) eigenvectors in a decomposition of the form \(A V = V \Lambda\). Note that this function constructs the associated matrix on the fly, since LAPACK packs complex-conjugate eigenvalue/eigenvector pairs of real-valued matrices into a real-valued return matrix. This call only succeeds in case the respective flag right_eigenvectors in compute_eigenvalues() has been set to true.

Definition at line 2065 of file lapack_full_matrix.cc.

◆ get_left_eigenvectors()

template<typename number >
FullMatrix< std::complex< typename numbers::NumberTraits< number >::real_type > > LAPACKFullMatrix< number >::get_left_eigenvectors

Return the matrix of left eigenvectors after a call to compute_eigenvalues(), following the same principles as get_right_eigenvectors().

Definition at line 2085 of file lapack_full_matrix.cc.

◆ singular_value()

template<typename number >
number LAPACKFullMatrix< number >::singular_value ( const size_type  i) const
inline

Retrieve singular values after compute_svd() or compute_inverse_svd() was called.

Definition at line 1213 of file lapack_full_matrix.h.

◆ get_svd_u()

template<typename number >
const LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::get_svd_u
inline

Retrieve the matrix svd_u after compute_svd() or compute_inverse_svd() was called.

Definition at line 1226 of file lapack_full_matrix.h.

◆ get_svd_vt()

template<typename number >
const LAPACKFullMatrix< number > & LAPACKFullMatrix< number >::get_svd_vt
inline

Retrieve the matrix svd_vt after compute_svd() or compute_inverse_svd() was called.

Definition at line 1238 of file lapack_full_matrix.h.

◆ print_formatted()

template<typename number >
void LAPACKFullMatrix< number >::print_formatted ( std::ostream &  out,
const unsigned int  precision = 3,
const bool  scientific = true,
const unsigned int  width = 0,
const char *  zero_string = " ",
const double  denominator = 1.,
const double  threshold = 0.
) const

Print the matrix and allow formatting of entries.

The parameters allow for a flexible setting of the output format:

Parameters
outThis specifies the stream to write to.
precisiondenotes the number of trailing digits.
scientificis used to determine the number format, where scientific = false means fixed point notation.
widthdenotes the with of each column. A zero entry for width makes the function compute a width, but it may be changed to a positive value, if output is crude.
zero_stringspecifies a string printed for zero entries.
denominatorMultiply the whole matrix by this common denominator to get nicer numbers.
thresholdall entries with absolute value smaller than this are considered zero.
Note
The entries stored resemble a matrix only if the state is either LAPACKSupport::matrix or LAPACK::inverse_matrix. Otherwise, calling this function is not allowed.

Definition at line 2521 of file lapack_full_matrix.cc.

◆ norm()

template<typename number >
number LAPACKFullMatrix< number >::norm ( const char  type) const
private

Internal function to compute various norms.

Definition at line 1450 of file lapack_full_matrix.cc.

◆ reinit() [3/4]

void TransposeTable< number >::reinit ( const size_type  size1,
const size_type  size2,
const bool  omit_default_initialization = false
)
inherited

Reinitialize the object. This function is mostly here for compatibility with the earlier vector2d class. Passes down to the base class by converting the arguments to the data type requested by the base class.

◆ reinit() [4/4]

template<int N, typename T >
void TableBase< N, T >::reinit ( const TableIndices< N > &  new_size,
const bool  omit_default_initialization = false
)
inherited

Set the dimensions of this object to the sizes given in the first argument, and allocate the required memory for table entries to accommodate these sizes. If omit_default_initialization is set to false, all elements of the table are set to a default constructed object for the element type. Otherwise the memory is left in an uninitialized or otherwise undefined state.

◆ operator()() [1/4]

const_reference TransposeTable< number >::operator() ( const size_type  i,
const size_type  j
) const
inherited

Direct access to one element of the table by specifying all indices at the same time. Range checks are performed.

This version of the function only allows read access.

◆ operator()() [2/4]

reference TransposeTable< number >::operator() ( const size_type  i,
const size_type  j
)
inherited

Direct access to one element of the table by specifying all indices at the same time. Range checks are performed.

This version of the function allows read-write access.

◆ operator()() [3/4]

template<int N, typename T >
AlignedVector< T >::reference TableBase< N, T >::operator() ( const TableIndices< N > &  indices)
inherited

Return a read-write reference to the indicated element.

◆ operator()() [4/4]

template<int N, typename T >
AlignedVector< T >::const_reference TableBase< N, T >::operator() ( const TableIndices< N > &  indices) const
inherited

Return the value of the indicated element as a read-only reference.

We return the requested value as a constant reference rather than by value since this object may hold data types that may be large, and we don't know here whether copying is expensive or not.

◆ n_rows()

size_type TransposeTable< number >::n_rows ( ) const
inherited

Number of rows. This function really makes only sense since we have a two-dimensional object here.

◆ n_cols()

size_type TransposeTable< number >::n_cols ( ) const
inherited

Number of columns. This function really makes only sense since we have a two-dimensional object here.

◆ begin() [1/2]

iterator TransposeTable< number >::begin ( )
inherited

Return an iterator pointing to the first entry.

◆ begin() [2/2]

const_iterator TransposeTable< number >::begin ( ) const
inherited

Return a constant iterator pointing to the first entry.

◆ end() [1/2]

iterator TransposeTable< number >::end ( )
inherited

Return an iterator pointing to one past the last entry.

◆ end() [2/2]

const_iterator TransposeTable< number >::end ( ) const
inherited

Return a constant iterator pointing to one past the last entry.

◆ el() [1/4]

reference TransposeTable< number >::el ( const size_type  i,
const size_type  j
)
protectedinherited

Return a read-write reference to the element (i,j).

This function does no bounds checking and is only to be used internally and in functions already checked.

These functions are mainly here for compatibility with a former implementation of these table classes for 2d arrays, then called vector2d.

◆ el() [2/4]

const_reference TransposeTable< number >::el ( const size_type  i,
const size_type  j
) const
protectedinherited

Return the value of the element (i,j) as a read-only reference.

This function does no bounds checking and is only to be used internally and in functions already checked.

We return the requested value as a constant reference rather than by value since this object may hold data types that may be large, and we don't know here whether copying is expensive or not.

These functions are mainly here for compatibility with a former implementation of these table classes for 2d arrays, then called vector2d.

◆ el() [3/4]

template<int N, typename T >
AlignedVector< T >::reference TableBase< N, T >::el ( const TableIndices< N > &  indices)
protectedinherited

Return a read-write reference to the indicated element.

This function does no bounds checking and is only to be used internally and in functions already checked.

◆ el() [4/4]

template<int N, typename T >
AlignedVector< T >::const_reference TableBase< N, T >::el ( const TableIndices< N > &  indices) const
protectedinherited

Return the value of the indicated element as a read-only reference.

This function does no bounds checking and is only to be used internally and in functions already checked.

We return the requested value as a constant reference rather than by value since this object may hold data types that may be large, and we don't know here whether copying is expensive or not.

◆ operator==()

template<int N, typename T >
bool TableBase< N, T >::operator== ( const TableBase< N, T > &  T2) const
inherited

Test for equality of two tables.

◆ reset_values()

template<int N, typename T >
void TableBase< N, T >::reset_values ( )
inherited

Set all entries to their default value (i.e. copy them over with default constructed objects). Do not change the size of the table, though.

◆ clear()

template<int N, typename T >
void TableBase< N, T >::clear ( )
inherited

Set all dimensions to zero.

◆ size() [1/2]

template<int N, typename T >
size_type TableBase< N, T >::size ( const unsigned int  i) const
inherited

Size of the table in direction i.

◆ size() [2/2]

template<int N, typename T >
const TableIndices< N > & TableBase< N, T >::size ( ) const
inherited

Return the sizes of this object in each direction.

◆ n_elements()

template<int N, typename T >
size_type TableBase< N, T >::n_elements ( ) const
inherited

Return the number of elements stored in this object, which is the product of the extensions in each dimension.

◆ empty()

template<int N, typename T >
bool TableBase< N, T >::empty ( ) const
inherited

Return whether the object is empty, i.e. one of the directions is zero. This is equivalent to n_elements()==0.

◆ fill() [2/3]

template<int N, typename T >
template<typename InputIterator >
void TableBase< N, T >::fill ( InputIterator  entries,
const bool  C_style_indexing = true
)
inherited

Fill this table (which is assumed to already have the correct size) from a source given by dereferencing the given forward iterator (which could, for example, be a pointer to the first element of an array, or an inserting std::istream_iterator). The second argument denotes whether the elements pointed to are arranged in a way that corresponds to the last index running fastest or slowest. The default is to use C-style indexing where the last index runs fastest (as opposed to Fortran-style where the first index runs fastest when traversing multidimensional arrays. For example, if you try to fill an object of type Table<2,T>, then calling this function with the default value for the second argument will result in the equivalent of doing

for (unsigned int i=0; i<t.size(0); ++i)
for (unsigned int j=0; j<t.size(1); ++j)
t[i][j] = *entries++;

On the other hand, if the second argument to this function is false, then this would result in code of the following form:

for (unsigned int j=0; j<t.size(1); ++j)
for (unsigned int i=0; i<t.size(0); ++i)
t[i][j] = *entries++;

Note the switched order in which we fill the table elements by traversing the given set of iterators.

Parameters
entriesAn iterator to a set of elements from which to initialize this table. It is assumed that iterator can be incremented and dereferenced a sufficient number of times to fill this table.
C_style_indexingIf true, run over elements of the table with the last index changing fastest as we dereference subsequent elements of the input range. If false, change the first index fastest.

◆ fill() [3/3]

template<int N, typename T >
void TableBase< N, T >::fill ( const T &  value)
inherited

Fill all table entries with the same value.

◆ replicate_across_communicator()

template<int N, typename T >
void TableBase< N, T >::replicate_across_communicator ( const MPI_Comm  communicator,
const unsigned int  root_process
)
inherited

This function replicates the state found on the process indicated by root_process across all processes of the MPI communicator. The current state found on any of the processes other than root_process is lost in this process. One can imagine this operation to act like a call to Utilities::MPI::broadcast() from the root process to all other processes, though in practice the function may try to move the data into shared memory regions on each of the machines that host MPI processes and let all MPI processes on this machine then access this shared memory region instead of keeping their own copy. See the general documentation of this class for a code example.

The intent of this function is to quickly exchange large arrays from one process to others, rather than having to compute or create it on all processes. This is specifically the case for data loaded from disk – say, large data tables – that are more easily dealt with by reading once and then distributing across all processes in an MPI universe, than letting each process read the data from disk itself. Specifically, the use of shared memory regions allows for replicating the data only once per multicore machine in the MPI universe, rather than replicating data once for each MPI process. This results in large memory savings if the data is large on today's machines that can easily house several dozen MPI processes per shared memory space.

This function does not imply a model of keeping data on different processes in sync, as LinearAlgebra::distributed::Vector and other vector classes do where there exists a notion of certain elements of the vector owned by each process and possibly ghost elements that are mirrored from its owning process to other processes. Rather, the elements of the current object are simply copied to the other processes, and it is useful to think of this operation as creating a set of const AlignedVector objects on all processes that should not be changed any more after the replication operation, as this is the only way to ensure that the vectors remain the same on all processes. This is particularly true because of the use of shared memory regions where any modification of a vector element on one MPI process may also result in a modification of elements visible on other processes, assuming they are located within one shared memory node.

Note
The use of shared memory between MPI processes requires that the detected MPI installation supports the necessary operations. This is the case for MPI 3.0 and higher.
This function is not cheap. It needs to create sub-communicators of the provided communicator object, which is generally an expensive operation. Likewise, the generation of shared memory spaces is not a cheap operation. As a consequence, this function primarily makes sense when the goal is to share large read-only data tables among processes; examples are data tables that are loaded at start-up time and then used over the course of the run time of the program. In such cases, the start-up cost of running this function can be amortized over time, and the potential memory savings from not having to store the table on each process may be substantial on machines with large core counts on which many MPI processes run on the same machine.
This function only makes sense if the data type T is "self-contained", i.e., all of its information is stored in its member variables, and if none of the member variables are pointers to other parts of the memory. This is because if a type T does have pointers to other parts of memory, then moving T into a shared memory space does not result in the other processes having access to data that the object points to with its member variable pointers: These continue to live only on one process, and are typically in memory areas not accessible to the other processes. As a consequence, the usual use case for this function is to share arrays of simple objects such as doubles or ints.
After calling this function, objects on different MPI processes share a common state. That means that certain operations become "collective", i.e., they must be called on all participating processors at the same time. In particular, you can no longer call resize(), reserve(), or clear() on one MPI process – you have to do so on all processes at the same time, because they have to communicate for these operations. If you do not do so, you will likely get a deadlock that may be difficult to debug. By extension, this rule of only collectively resizing extends to this function itself: You can not call it twice in a row because that implies that first all but the root_process throw away their data, which is not a collective operation. Generally, these restrictions on what can and can not be done hint at the correctness of the comments above: You should treat an AlignedVector on which the current function has been called as const, on which no further operations can be performed until the destructor is called.

◆ swap()

template<int N, typename T >
void TableBase< N, T >::swap ( TableBase< N, T > &  v)
inherited

Swap the contents of this table and the other table v. One could do this operation with a temporary variable and copying over the data elements, but this function is significantly more efficient since it only swaps the pointers to the data of the two vectors and therefore does not need to allocate temporary storage and move data around.

This function is analogous to the swap function of all C++ standard containers. Also, there is a global function swap(u,v) that simply calls u.swap(v), again in analogy to standard functions.

◆ memory_consumption()

template<int N, typename T >
std::size_t TableBase< N, T >::memory_consumption ( ) const
inherited

Determine an estimate for the memory consumption (in bytes) of this object.

◆ serialize()

template<int N, typename T >
template<class Archive >
void TableBase< N, T >::serialize ( Archive &  ar,
const unsigned int  version
)
inherited

Write or read the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

◆ position()

template<int N, typename T >
size_type TableBase< N, T >::position ( const TableIndices< N > &  indices) const
protectedinherited

Return the position of the indicated element within the array of elements stored one after the other. This function does no index checking.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 53 of file subscriptor.cc.

Member Data Documentation

◆ state

template<typename number >
LAPACKSupport::State LAPACKFullMatrix< number >::state
private

Since LAPACK operations notoriously change the meaning of the matrix entries, we record the current state after the last operation here.

Definition at line 929 of file lapack_full_matrix.h.

◆ property

template<typename number >
LAPACKSupport::Property LAPACKFullMatrix< number >::property
private

Additional property of the matrix which may help to select more efficient LAPACK functions.

Definition at line 935 of file lapack_full_matrix.h.

◆ work

template<typename number >
std::vector<number> LAPACKFullMatrix< number >::work
mutableprivate

The working array used for some LAPACK functions.

Definition at line 940 of file lapack_full_matrix.h.

◆ iwork

template<typename number >
std::vector<types::blas_int> LAPACKFullMatrix< number >::iwork
mutableprivate

Integer working array used for some LAPACK functions.

Definition at line 945 of file lapack_full_matrix.h.

◆ ipiv

template<typename number >
std::vector<types::blas_int> LAPACKFullMatrix< number >::ipiv
private

The vector storing the permutations applied for pivoting in the LU- factorization.

Also used as the scratch array IWORK for LAPACK functions needing it.

Definition at line 953 of file lapack_full_matrix.h.

◆ inv_work

template<typename number >
std::vector<number> LAPACKFullMatrix< number >::inv_work
private

Workspace for calculating the inverse matrix from an LU factorization.

Definition at line 958 of file lapack_full_matrix.h.

◆ wr

template<typename number >
std::vector<typename numbers::NumberTraits<number>::real_type> LAPACKFullMatrix< number >::wr
private

Real parts of eigenvalues or the singular values. Filled by compute_eigenvalues() or compute_svd().

Definition at line 964 of file lapack_full_matrix.h.

◆ wi

template<typename number >
std::vector<number> LAPACKFullMatrix< number >::wi
private

Imaginary parts of eigenvalues, or, in the complex scalar case, the eigenvalues themselves. Filled by compute_eigenvalues.

Definition at line 970 of file lapack_full_matrix.h.

◆ vl

template<typename number >
std::vector<number> LAPACKFullMatrix< number >::vl
private

Space where left eigenvectors can be stored.

Definition at line 975 of file lapack_full_matrix.h.

◆ vr

template<typename number >
std::vector<number> LAPACKFullMatrix< number >::vr
private

Space where right eigenvectors can be stored.

Definition at line 980 of file lapack_full_matrix.h.

◆ svd_u

template<typename number >
std::unique_ptr<LAPACKFullMatrix<number> > LAPACKFullMatrix< number >::svd_u
private

The matrix \(\mathbf U\) in the singular value decomposition \(\mathbf U \cdot \mathbf S \cdot \mathbf V^T\).

Definition at line 986 of file lapack_full_matrix.h.

◆ svd_vt

template<typename number >
std::unique_ptr<LAPACKFullMatrix<number> > LAPACKFullMatrix< number >::svd_vt
private

The matrix \(\mathbf V^T\) in the singular value decomposition \(\mathbf U \cdot \mathbf S \cdot \mathbf V^T\).

Definition at line 992 of file lapack_full_matrix.h.

◆ mutex

template<typename number >
Threads::Mutex LAPACKFullMatrix< number >::mutex
mutableprivate

Thread mutex.

Definition at line 997 of file lapack_full_matrix.h.

◆ values

template<int N, typename T >
AlignedVector<T> TableBase< N, T >::values
protectedinherited

Component-array.

Definition at line 796 of file table.h.

◆ table_size

template<int N, typename T >
TableIndices<N> TableBase< N, T >::table_size
protectedinherited

Size in each direction of the table.

Definition at line 801 of file table.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 219 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 225 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 241 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 249 of file subscriptor.h.


The documentation for this class was generated from the following files:
