GrowingVectorMemory< VectorType > Class Template Reference

#include <deal.II/lac/vector_memory.h>

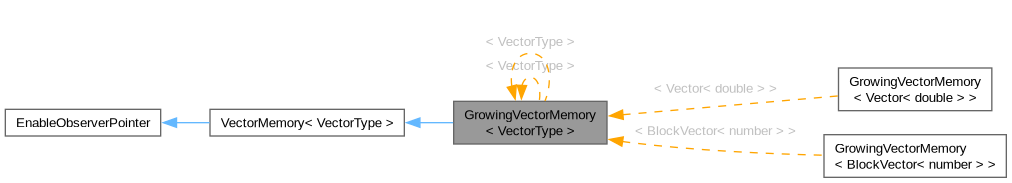

Inheritance diagram for GrowingVectorMemory< VectorType >:
[legend]

Classes

struct  Pool


Public Types

using size_type = types::global_dof_index


Public Member Functions

 GrowingVectorMemory (const size_type initial_size=0, const bool log_statistics=false)

virtual ~GrowingVectorMemory () override

virtual VectorType * alloc () override

virtual void free (const VectorType *const) override

virtual std::size_t memory_consumption () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static void release_unused_memory ()

static ::ExceptionBaseExcNotAllocatedHere ()

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Private Types

using entry_type = std::pair< bool, std::unique_ptr< VectorType > >

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

void check_no_subscribers () const noexcept


Static Private Member Functions

static Poolget_pool ()


Private Attributes

size_type total_alloc

size_type current_alloc

bool log_statistics

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Static Private Attributes

static Threads::Mutex mutex


Detailed Description

template<typename VectorType = ::Vector<double>>
class GrowingVectorMemory< VectorType >

A pool based memory management class. See the documentation of the base class for a description of its purpose.

Each time a vector is requested from this class, it checks if it has one available and returns its address, or allocates a new one on the heap. If a vector is returned from its user, through the GrowingVectorMemory::free() member function, it doesn't return the allocated memory to the operating system memory subsystem, but keeps it around unused for later use if GrowingVectorMemory::alloc() is called again. The class therefore avoid the overhead of repeatedly allocating memory on the heap if temporary vectors are required and released frequently; on the other hand, it doesn't release once-allocated memory at the earliest possible time and may therefore lead to an increased overall memory consumption.

All GrowingVectorMemory objects of the same vector type use the same memory pool. (In other words: The pool of vectors from which this class draws is global, rather than a regular member variable of the current class that is destroyed at the time that the surrounding GrowingVectorMemory object is destroyed.) Therefore, functions can create such a GrowingVectorMemory object whenever needed without the performance penalty of creating a new memory pool every time. A drawback of this policy is that vectors once allocated are only released at the end of the program run.

Definition at line 315 of file vector_memory.h.

Member Typedef Documentation

◆ size_type

template<typename VectorType = ::Vector<double>>
using GrowingVectorMemory< VectorType >::size_type = types::global_dof_index

Declare type for container size.

Definition at line 321 of file vector_memory.h.

◆ entry_type

template<typename VectorType = ::Vector<double>>
using GrowingVectorMemory< VectorType >::entry_type = std::pair<bool, std::unique_ptr<VectorType> >
private

A type that describes this entries of an array that represents the vectors stored by this object. The first component of the pair is be a flag telling whether the vector is used, the second a pointer to the vector itself.

Definition at line 398 of file vector_memory.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 230 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 235 of file subscriptor.h.

Constructor & Destructor Documentation

◆ GrowingVectorMemory()

template<typename VectorType = ::Vector<double>>
GrowingVectorMemory< VectorType >::GrowingVectorMemory ( const size_type  initial_size = 0,
const bool  log_statistics = false
)

Constructor. The argument allows to preallocate a certain number of vectors. The default is not to do this.

◆ ~GrowingVectorMemory()

template<typename VectorType = ::Vector<double>>
virtual GrowingVectorMemory< VectorType >::~GrowingVectorMemory ( )
overridevirtual

Destructor. The destructor also checks that all vectors that have been allocated through the current object have all been released again. However, as discussed in the class documentation, this does not imply that their memory is returned to the operating system.

Member Function Documentation

◆ alloc()

template<typename VectorType = ::Vector<double>>
virtual VectorType * GrowingVectorMemory< VectorType >::alloc ( )
overridevirtual

Return a pointer to a new vector. The number of elements or their subdivision into blocks (if applicable) is unspecified and users of this function should reset vectors to their proper size. The same holds for the contents of vectors: they are unspecified. In other words, the place that calls this function will need to resize or reinitialize it appropriately.

Warning
Just like using new and delete explicitly in code invites bugs where memory is leaked (either because the corresponding delete is forgotten altogether, or because of exception safety issues), using the alloc() and free() functions explicitly invites writing code that accidentally leaks memory. You should consider using the VectorMemory::Pointer class instead, which provides the same kind of service that std::unique provides for arbitrary memory allocated on the heap.

Implements VectorMemory< VectorType >.

◆ free()

template<typename VectorType = ::Vector<double>>
virtual void GrowingVectorMemory< VectorType >::free ( const VectorType * const  )
overridevirtual

Return a vector and indicate that it is not going to be used any further by the instance that called alloc() to get a pointer to it.

For the present class, this means retaining the vector for later reuse by the alloc() method.

Warning
Just like using new and delete explicitly in code invites bugs where memory is leaked (either because the corresponding delete is forgotten altogether, or because of exception safety issues), using the alloc() and free() functions explicitly invites writing code that accidentally leaks memory. You should consider using the VectorMemory::Pointer class instead, which provides the same kind of service that std::unique provides for arbitrary memory allocated on the heap.

Implements VectorMemory< VectorType >.

◆ release_unused_memory()

template<typename VectorType = ::Vector<double>>
static void GrowingVectorMemory< VectorType >::release_unused_memory ( )
static

Release all vectors that are not currently in use.

◆ memory_consumption()

template<typename VectorType = ::Vector<double>>
virtual std::size_t GrowingVectorMemory< VectorType >::memory_consumption ( ) const
virtual

Memory consumed by this class and all currently allocated vectors.

◆ get_pool()

template<typename VectorType = ::Vector<double>>
static Pool & GrowingVectorMemory< VectorType >::get_pool ( )
staticprivate

Return an array of allocated vectors.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 53 of file subscriptor.cc.

Member Data Documentation

◆ total_alloc

template<typename VectorType = ::Vector<double>>
size_type GrowingVectorMemory< VectorType >::total_alloc
private

Overall number of allocations. Only used for bookkeeping and to generate output at the end of an object's lifetime.

Definition at line 441 of file vector_memory.h.

◆ current_alloc

template<typename VectorType = ::Vector<double>>
size_type GrowingVectorMemory< VectorType >::current_alloc
private

Number of vectors currently allocated in this object; used for detecting memory leaks.

Definition at line 447 of file vector_memory.h.

◆ log_statistics

template<typename VectorType = ::Vector<double>>
bool GrowingVectorMemory< VectorType >::log_statistics
private

A flag controlling the logging of statistics by the destructor.

Definition at line 452 of file vector_memory.h.

◆ mutex

template<typename VectorType = ::Vector<double>>
Threads::Mutex GrowingVectorMemory< VectorType >::mutex
staticprivate

Mutex to synchronize access to internal data of this object from multiple threads.

Definition at line 458 of file vector_memory.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 219 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 225 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 241 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 249 of file subscriptor.h.


The documentation for this class was generated from the following file:
