Algorithms::OperatorBase Class Referenceabstract

#include <deal.II/algorithms/operator.h>

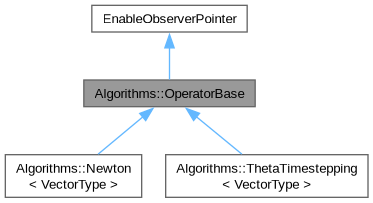

Inheritance diagram for Algorithms::OperatorBase:
[legend]

## Public Member Functions

virtual ~OperatorBase () override=default

virtual void operator() (AnyData &out, const AnyData &in)=0

virtual void notify (const Event &)

void clear_events ()

## Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info

static std::mutex mutex

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)

void check_no_subscribers () const noexcept

## Detailed Description

Todo:
Update this documentation and the one of Operator

The abstract base class of all algorithms in this library. An operator is an object with an operator(), which transforms a set of named vectors into another set of named vectors.

Furthermore, an operator can be notified of parameter changes by the calling routine. The outer iteration can notify() the Operator of an Event, which could be for instance a change of mesh, a different time step size or too slow convergence of Newton's method, which would then trigger reassembling of a matrix or similar things.

### Usage for nested iterations

This is probably the most prominent use for Operator, where an outer iterative method calls an inner solver and so on. Typically, the innermost method in such a nested system will have to compute a residual using values from all outer iterations. Since the depth and order of such a nesting is hardly predictable when designing a general tool, we use AnyData to access these vectors. Typically, the first vector in out contains the start vector when operator()() is called, and the solution when the function returns. The object in is providing additional information and forwarded to the inner Operator objects of the nested iteration.

Definition at line 66 of file operator.h.

## ◆ ~OperatorBase()

 virtual Algorithms::OperatorBase::~OperatorBase ( )
overridevirtualdefault

The virtual destructor.

## ◆ operator()()

 virtual void Algorithms::OperatorBase::operator() ( AnyData & out, const AnyData & in )
pure virtual

The actual operation, which is implemented in a derived class.

Implemented in Algorithms::Newton< VectorType >, and Algorithms::ThetaTimestepping< VectorType >.

## ◆ notify()

 void Algorithms::OperatorBase::notify ( const Event & e )
virtual

Register an event triggered by an outer iteration.

Reimplemented in Algorithms::Newton< VectorType >, and Algorithms::ThetaTimestepping< VectorType >.

Definition at line 41 of file operator.cc.

## ◆ clear_events()

 void Algorithms::OperatorBase::clear_events ( )

Definition at line 49 of file operator.cc.
